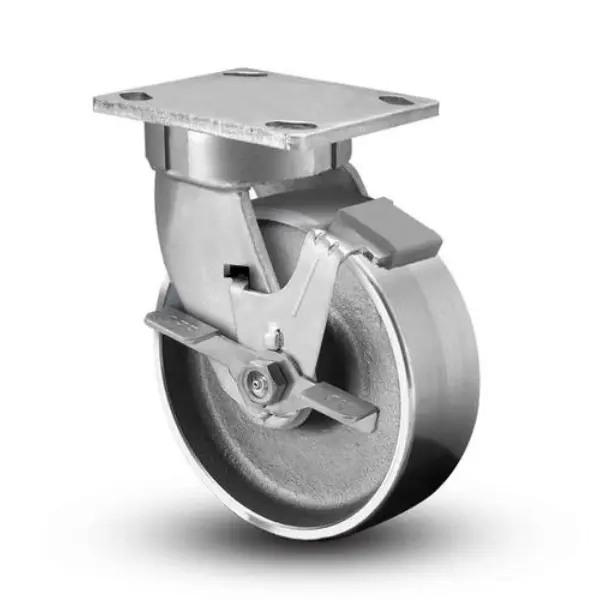

This heavy-duty 6-inch kingpinless brake caster is the perfect solution for your industrial needs. Crafted with a robust drop-forged steel wheel, it boasts a high load capacity of 1700 lbs, ensuring smooth operation even with heavy equipment.
Need help finding the right caster for the job? Our caster experts are available weekdays from 8 am to 5 pm to answer your questions and provide personalized recommendations.
Experience the difference with our premium casters and wheels. We offer a variety of options to meet your specific needs, all featuring:
Got questions? Our Caster Specialists are here weekdays 8 am - 5 pm to provide expert advice for your project needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Our casters and wheels are perfect for warehouses, manufacturing facilities, and other industrial settings. They can handle heavy loads with ease, ensuring smooth operation and increased productivity.
Contact our customer service team or visit our website to learn more about our wide selection of casters and wheels. We're confident you'll find the perfect solution for your specific application.
This Albion 6" Forged Steel Kingpinless Caster with Brake – 1700 lb is rated to 1700 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for Up to 800°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

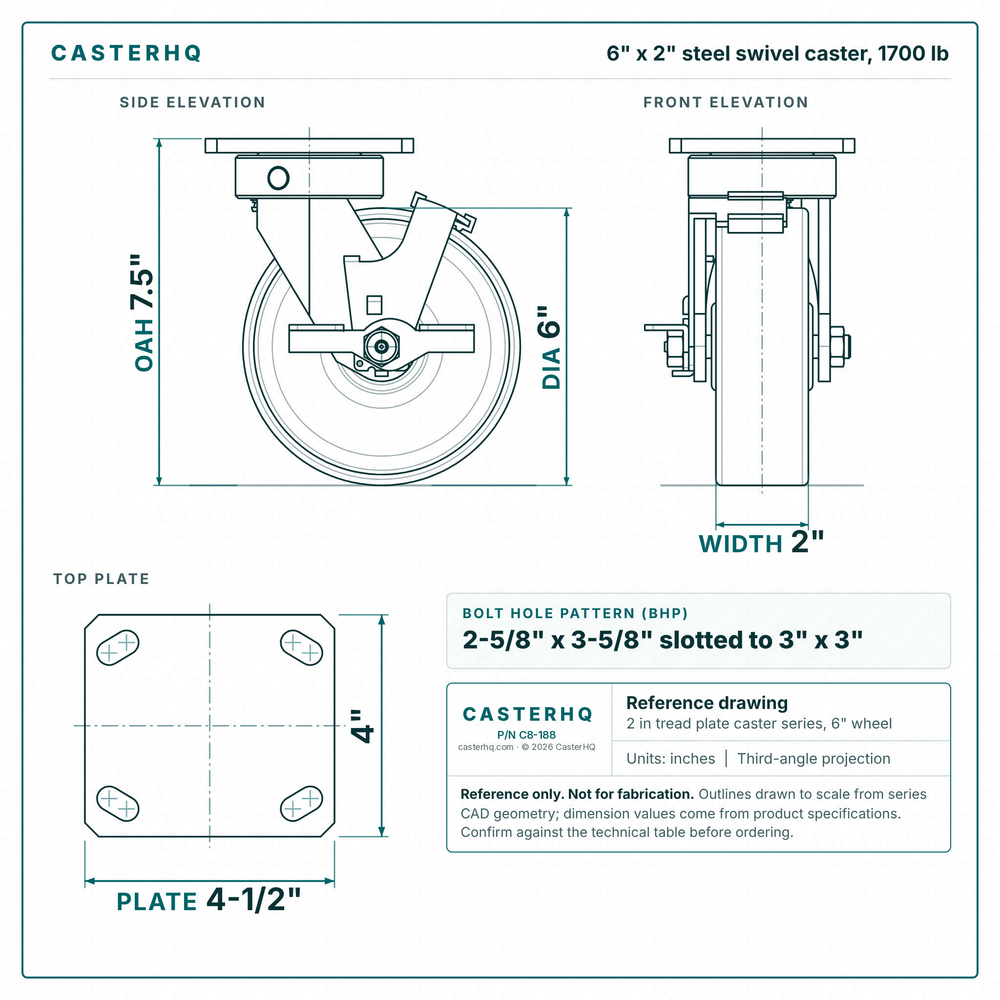

The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$235.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Overall Height | 7.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1700 lbs |
| Temp Range | Up to 800°F |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
6" x 2" Polyurethane on Aluminum Swivel Caster – 1,250 lb | CasterHQ
6" x 2" · 1250 lbs
$76
6" x 2" Phenolic Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
6" x 2" · 1250 lbs · Direct fit
$23
6" x 2" Polyurethane Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
6" x 2" · 1250 lbs · Direct fit
$73
View all plate casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1250 lbsLighter duty | 6" × 2"Polyurethane | Swivel | — | $76.00 | View → | |
| 1,250 lbsLighter duty | 6" × 2"Polyurethane | Rigid | 7-1/2" | $205.00 | View → | |
| 1700 lbs | 6" | — | 7.5" | $235.00 | Viewing | |
| 2880 lbsHeavier duty | 6" × 2"Polyurethane | Swivel, Rigid | 7-1/2" | $124.99 | View → | |
| 4800 lbsHeavier duty | 6" × 2"Polyurethane | — | 7-1/2" | $286.00 | View → |
