What is the load capacity of this caster?

This 6" x 2" Polyurethane Stainless Total Lock Caster – 4" x 4.5" Plate is rated to 900 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?

This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

What plate size and bolt pattern does it use?

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

What temperature range can this caster handle?

Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?

The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?

The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

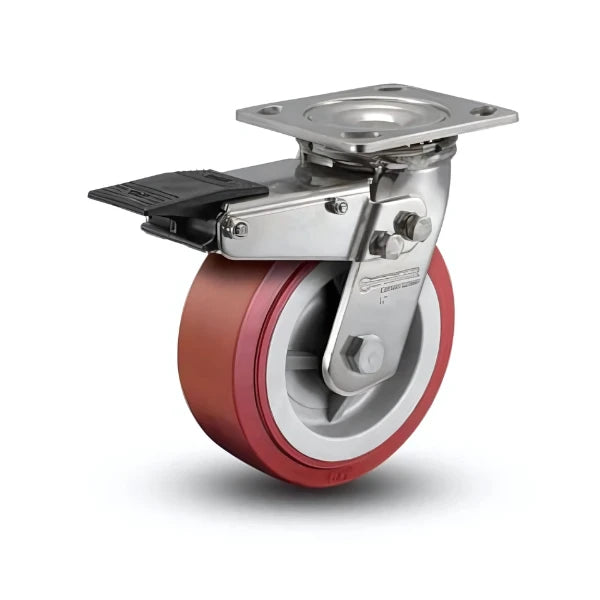

6x2 Stainless Polyurethane Caster with Total Lock - D4.06109

Product Overview

The 6" x 2" Stainless HI-TECH Polyurethane Roller Bearing Caster - D4.06109.929 BRK4 SS WB29 is expertly designed for heavy-duty applications, ensuring both performance and durability. Its construction features a stainless steel finish combined with a HI-TECH polyurethane wheel, making it resistant to wear and ideal for various industrial and commercial environments.

Key Features

Durable Load Capacity: With a capacity of up to 900 lbs, this caster can handle substantial loads, making it perfect for moving heavy equipment.
Advanced Wheel Technology: The polyurethane wheel offers exceptional resistance to abrasion and provides a smooth, quiet ride.
Total Lock Brake: Equipped with a Total Lock Brake system (DTBRK4), ensuring that the caster remains securely in place when needed.
Optimal Swivel Radius: Features a 6.75-inch swivel radius for excellent maneuverability in tight spaces.

Specifications

This caster is designed for versatility with a mounting height of 7.5 inches and a top plate size of 4" x 4.5". The bolt hole pattern is adaptable, measuring 2-5/8" to 3" x 3" to 3-5/8", allowing for easy installation on various equipment.

Operating Conditions

The operating temperature range of this caster is impressive, functioning effectively between -45°F to +180°F. This makes it suitable for use in both extreme cold and heat, ensuring reliable performance across a wide range of environments.

Warranty and Compliance

This caster comes with a 3-year warranty, providing assurance of its quality and durability. Additionally, it is RoHS compliant and recognized as an NSF component (less thread guards), ensuring it meets high safety and environmental standards.

Conclusion

The 6" x 2" Stainless HI-TECH Polyurethane Roller Bearing Caster is an exceptional choice for those seeking a reliable, high-capacity mobility solution. Its robust design, combined with advanced features, ensures it meets the demands of various applications, enhancing operational efficiency and safety. Choose this caster for dependable performance that stands the test of time.

Identification
Brand	colson header
Dimensions & Mounting
Wheel Diameter	6"
Wheel Tread Width	2"
Overall Height	7.5"
Plate Size	4" x 4-1/2"
Bolt Hole Pattern	3" x 3"
Mount Style	Plate
Load & Performance
Wheel Capacity	900 lbs
Temp Range	-40°F to 600°F
Materials & Finish
Wheel Material	Polyurethane
Frame Material	Zinc Plated Steel

Casters (in stock)	Load capacity	Wheel	Type	Overall height	Price
Direct fit6" x 2" Thermo Rubber Rigid Caster – 600 lb	600 lbsLighter duty	6" × 2"Gray Rubber	Rigid	7-1/2"	$31.00	View →
6" x 2" Gray Iron Spring Loaded Caster – 700 lb	700 lbsLighter duty	6" × 2"Cast Iron	—	—	$151.00	View →
This item6" x 2" Polyurethane Stainless Total Lock Caster – 4" x 4.5" Plate	900 lbs	6" × 2"Polyurethane	—	7.5"	$237.00	Viewing
Direct fit6" x 2" Polyurethane Rigid Caster 4" x 4-1/2" Plate – 900 lb	900 lbsSame capacity	6" × 2"Polyurethane	Rigid	7-1/2"	$23.00	View →
6" x 2" Blue Polyurethane Spring Loaded Caster – 1000 lb	1000 lbsHeavier duty	6" × 2"Blue Solid Polyurethane	—	—	$182.00	View →

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
