What are the dimensions and specifications?

Please refer to the product specifications section above for detailed dimensions including wheel diameter, width, mounting hole pattern, and overall height.

What material is the caster wheel made from?

This caster features a wheel. Check the product specifications for exact material composition.

Does this caster have a brake or locking mechanism?

Brake availability varies by model. Check the product title and specifications - models with 'Total Lock', 'Brake', or 'Locking' in the name include braking mechanisms.

Is this caster suitable for outdoor or industrial use?

This 8" x 2" Solid Polyurethane Swivel Caster – 1,400 lb | 4-1/2" x 6-1/4" Plate is designed for industrial applications. For outdoor use, we recommend stainless steel casters.

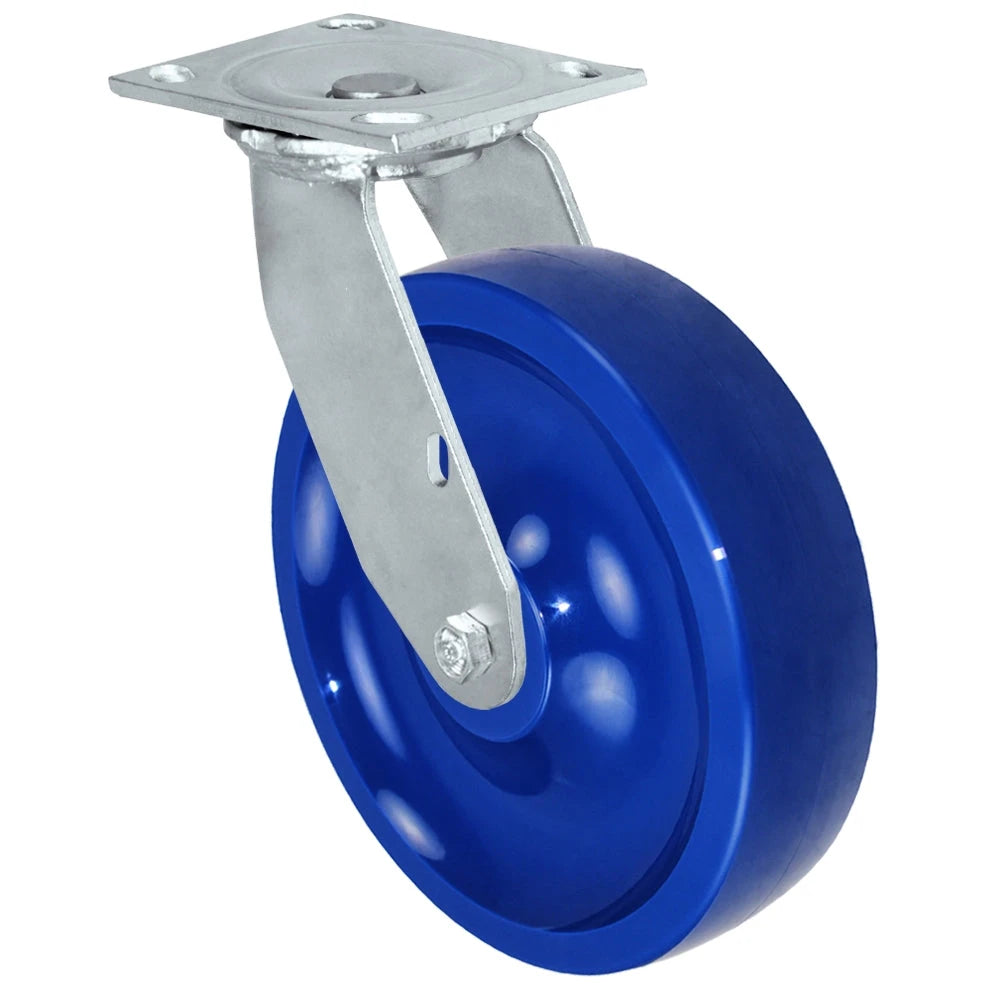

8" x 2" Solid Polyurethane Wheel - Swivel Caster - 1,400 lbs capacity - Plate Size: 4-1/2" x 6-1/4" CasterHQ

8" x 2" Solid Polyurethane Swivel Caster – 1,400 lb | 4-1/2" x 6-1/4" Plate

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$89.00 USD - $149.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: HQ2080S-PL3-SPR

Technical Specs

Diameter: 8"
Tread Width: 2"
Wheel Type: Solid Polyurethane
Color: Blue
Swivel Radius: 5-1/2"
Overall Height: 9-1/2"

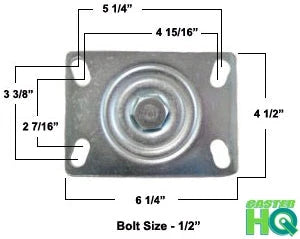

Top Plate Size: 4-1/2" x 6-1/4"
Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Attaching Bolt Diameter: 1/2"
Weight Capacity: 1,400 lbs

Product Overview

8" x 2" Solid Polyurethane Wheel - Swivel Caster - 1,400 lbs capacity - Plate Size: 4-1/2" x 6-1/4"

Plate Size: 4-1/2" x 6-1/4"

Solid polyurethane wheels come in a industry standard blue color. Solid Polyurethane Wheels are a durable one piece mold design that eliminates bonding failure that you would normally experience in a polyurethane wheel that is normally bonded to a polyolefin core. Solid Poly Wheels are more durable than any other polyurethane wheel since it can not be de-laminated. These wheels offer high impact and abrasion resistance great for shock loads and debris. Solid Polyurethane wheels are highly resistant to oil, grease, water and most chemicals and solvents even up to 10% acidity. These wheels are perfect for food processing equipment and other food service applications. These wheels go by a few acronyms but are the same as SPU (Solid Polyurethane Wheels) and SU (Solid Urethane) Wheels.

Durometer: 63 (+/-5) Shore D
100% Washable
One Piece Mold Design Eliminates Bond Failure
High impact and abrasion resistant
Resists oil, grease, water and most solvents
Perfect for food service processing equipment and other clean room applications

Questions? Please Call us @ 844-439-4335 or Contact Us Here
For quick online service please email us: sales@casterhq.com and a Caster Expert will help you answer any questions.

We ship Fast!!!
If ordered before 12-noon we ship all orders typically ship SAME DAY!
All orders received after 12-noon will ship the following business day

Key Features

Large Double Ball Bearing Raceway and Top Plate
Zinc Plated Finish
1/2" Cold Forged Steel Top Plate and Yoke Legs
3/4" Diameter Heat Treated Kingpin and Nut
1/2" Diameter zerk axle and lock nut
Grease Fittings in swivel Raceway

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

Flat-rate shipping by order size. Final shipping cost shown before payment.
No post-checkout shipping adjustments or re-billing.
Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

8" x 2" Solid Polyurethane Swivel Caster – 1,400 lb | 4-1/2" x 6-1/4" Plate

$89.00

Technical Specifications:

Wheel Diameter	8"
Wheel Tread Width	2"
Overall Height	9-1/2"
Wheel Capacity	1400 lbs
Temp Range	Up to 180°F
Wheel Material	Solid Polyurethane
Frame Material	Zinc Plated Steel
Bolt Hole Pattern	2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Mount Style	Plate
Plate Size	4-1/2" x 6-1/4"
Rig Type	Swivel
Brake Type	No Brake
