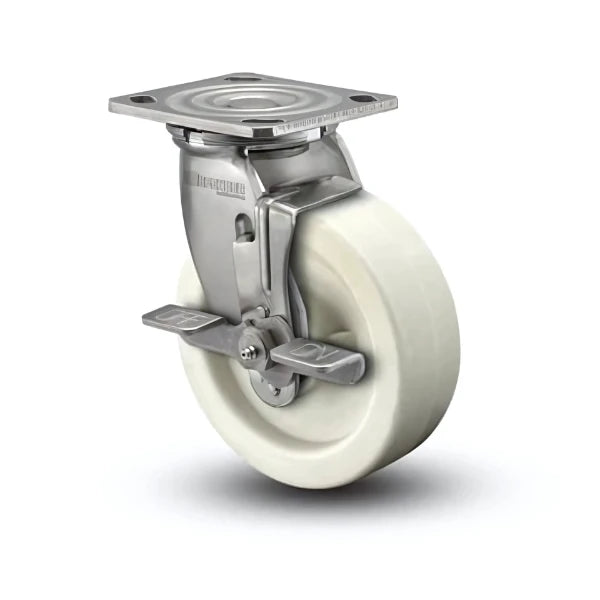

The 8" x 2" Stainless Hi-Temp Retort Delrin Bearing Top-Lock Caster with 4" x 4.5" Plate (D4.08109.831 RW BRK7 SS) is expertly designed to handle demanding industrial applications where high temperatures and corrosion resistance are critical. Made with durable stainless steel, this caster features a Hi-Temp Retort Delrin Bearing for optimal performance under extreme heat conditions. Its top-lock mechanism ensures secure positioning, while the standard 4" x 4.5" mounting plate allows for easy installation. This caster is ideal for facilities requiring heat-resistant equipment, providing long-lasting, reliable performance.
Our 8" x 2" Stainless Hi-Temp Retort Delrin Bearing Top-Lock Caster with 4" x 4.5" Plate (D4.08109.831 RW BRK7 SS) is manufactured to meet the highest standards of quality and durability. Each unit undergoes rigorous testing to ensure it can withstand extreme temperatures and harsh industrial environments. With a commitment to excellence, we provide products that deliver exceptional value and reliability, backed by dedicated customer support and a satisfaction guarantee. Trust in our expertise for solutions tailored to your industrial needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 8" x 2" Stainless Hi-Temp Retort Delrin Bearing Top-Lock Caster is expertly crafted for demanding industrial environments where durability and heat resistance are paramount. With a load capacity of 900 lbs, this caster is ideal for applications requiring strength and reliability. Designed with a 4" x 4.5" mounting plate, it ensures a secure fit and compatibility with a wide range of equipment. The top-lock mechanism provides stability, making it suitable for heavy-duty use in high-temperature and corrosive settings.
This caster is designed for use in a variety of industrial and commercial environments, including food processing facilities, retort ovens, and manufacturing plants. Its corrosion-resistant finish and heat-resistant components make it suitable for operations requiring FDA-compliant materials and extreme durability.
The 8" x 2" Stainless Hi-Temp Retort Caster is the perfect choice for businesses that demand reliable, high-quality components for their operations. Backed by a three-year warranty and crafted to meet stringent industry standards, this caster offers unparalleled performance in heat-intensive and corrosive environments. Whether you need to outfit retort ovens or industrial carts, this caster delivers exceptional value and peace of mind.
At [Your Company Name], we are committed to providing products that exceed expectations. Every caster is rigorously tested for quality, durability, and performance. With our expert customer support team ready to assist, you can trust us to deliver solutions tailored to your specific needs.
This Colson D4.08109.831 8" x 2" Stainless Caster with Wheel Lock Brake – 4" x 4.5" Plate is rated to 900 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

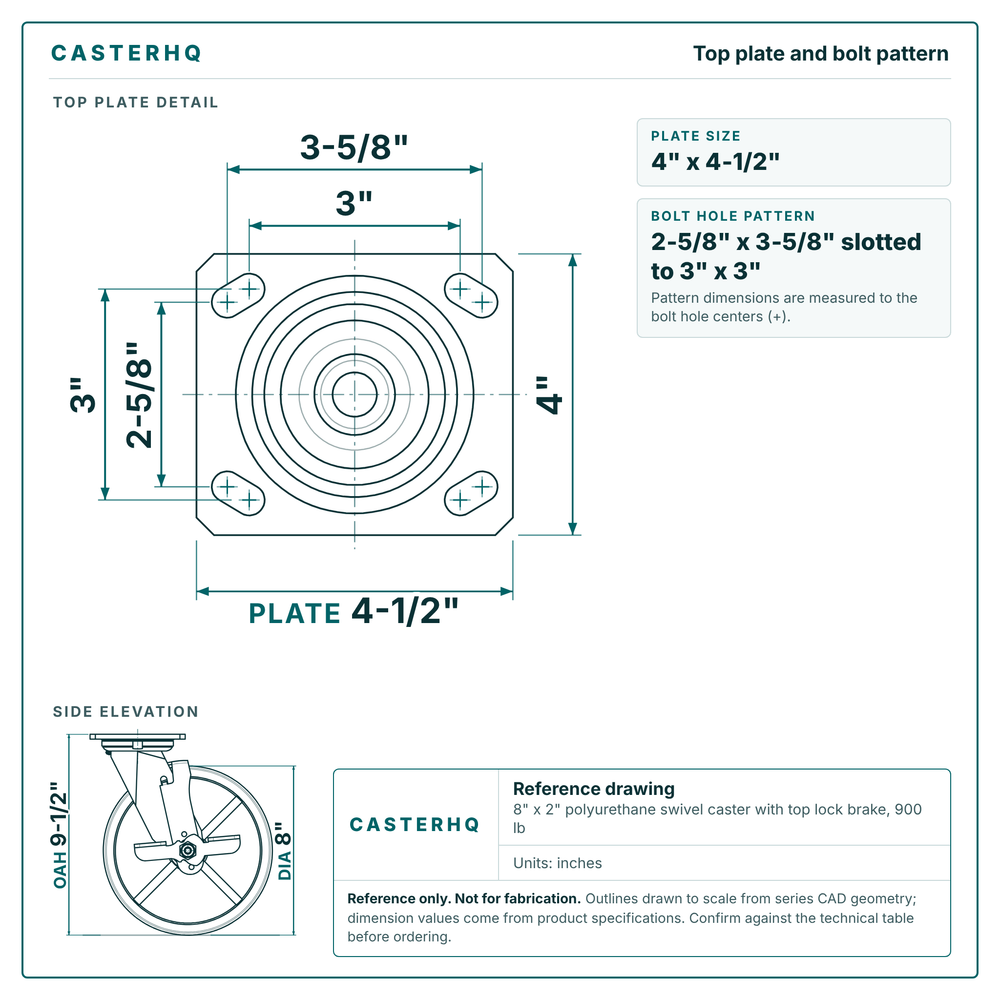

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$309.00
| Identification | |
|---|---|
| Part Number / SKU | D4.08109.831-RW-BRK7-SS |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 900 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 9-1/2" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 6-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 75 Shore D |
| Bearing Type | Delrin Bearing |
| Axle Diameter | 1/2" |
| Thread Guard | None |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | -40°F to 180°F |
| Warranty | 3 Years |
| Compliance | |
| Conformity | RoHS compliant and NSF component (less thread guards). |
| Buy American | Yes |

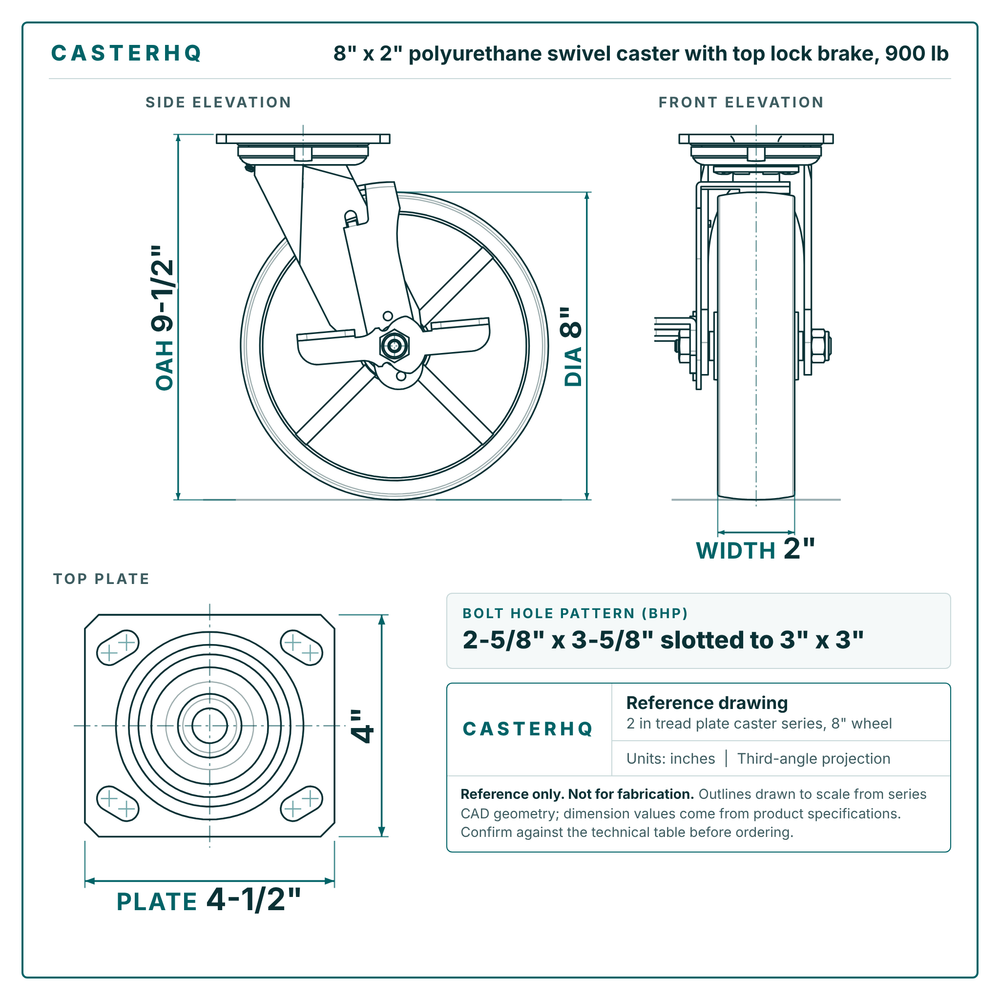

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 8" × 2"Gray Rubber | Swivel | 9-1/2" | $32.50 | View → | |
| 700 lbsLighter duty | 8" × 2"Semi-Steel | — | 9-1/2" | $164.00 | View → | |
| 900 lbs | 8" × 2"Polyurethane | Swivel with Brake + brake | 9-1/2" | $309.00 | Viewing | |
| 1000 lbsHeavier duty | 8" × 2"Blue Solid Polyurethane | — | 9-1/2" | $199.00 | View → | |
| 1000 lbsHeavier duty | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → |
