PRODUCT CODE: CB8X2SDWC

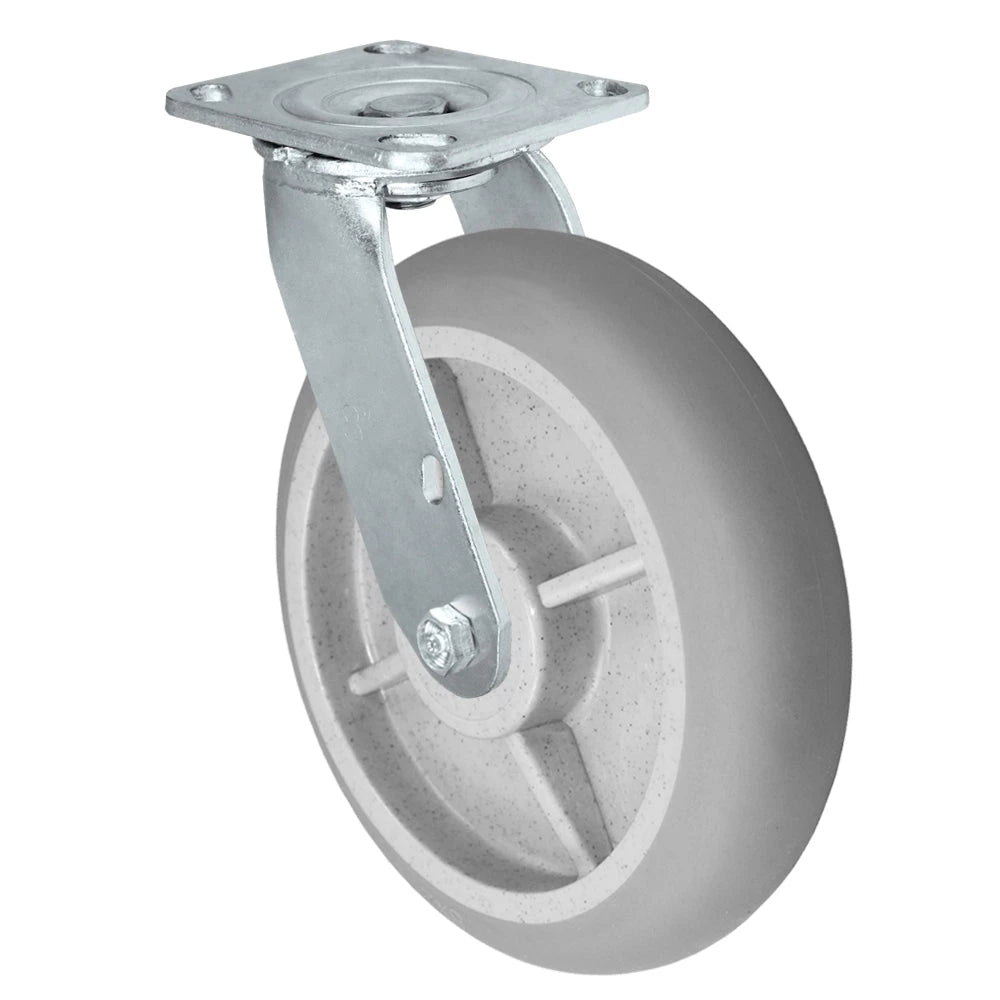

This 8" x 2" swivel drywall cart caster is designed for material handling carts that carry heavy sheet goods such as drywall, sheetrock, and panels. Rated for 700 lbs per caster, it provides smooth maneuverability, durability, and load stability in construction, warehouse, and jobsite environments.
The thermoplastic rubber (TPR) wheel with a round tread profile offers quiet rolling, floor protection, and controlled movement on concrete, asphalt, and finished floors. The swivel design allows carts to turn easily in tight spaces and around obstacles.
---
---
This caster is commonly used on drywall carts and material dollies where smooth rolling and controlled steering are required. It is compatible with many standard drywall cart frames, including popular commercial designs used in warehouses and on construction sites.
The swivel assembly improves maneuverability when navigating narrow aisles, loading zones, and jobsite layouts.
---
The thermoplastic rubber wheel is engineered to balance load capacity and surface protection:
Suitable for use on:
Always confirm mounting dimensions and total cart load requirements before installation.
This caster is available for individual replacement or bulk purchasing for fleet maintenance and large projects. Contact us for volume pricing or configuration support.
---
This caster is rated for 700 lbs. Total cart capacity depends on the number of casters used and proper load distribution.
Yes. This caster is designed specifically for drywall carts, drywall dollies, and sheetrock handling equipment.
The thermoplastic rubber tread is designed to reduce floor marking and provide quieter operation compared to hard wheels.
Yes. The swivel design allows full rotation for improved maneuverability in tight spaces.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
$32.50 $66.00

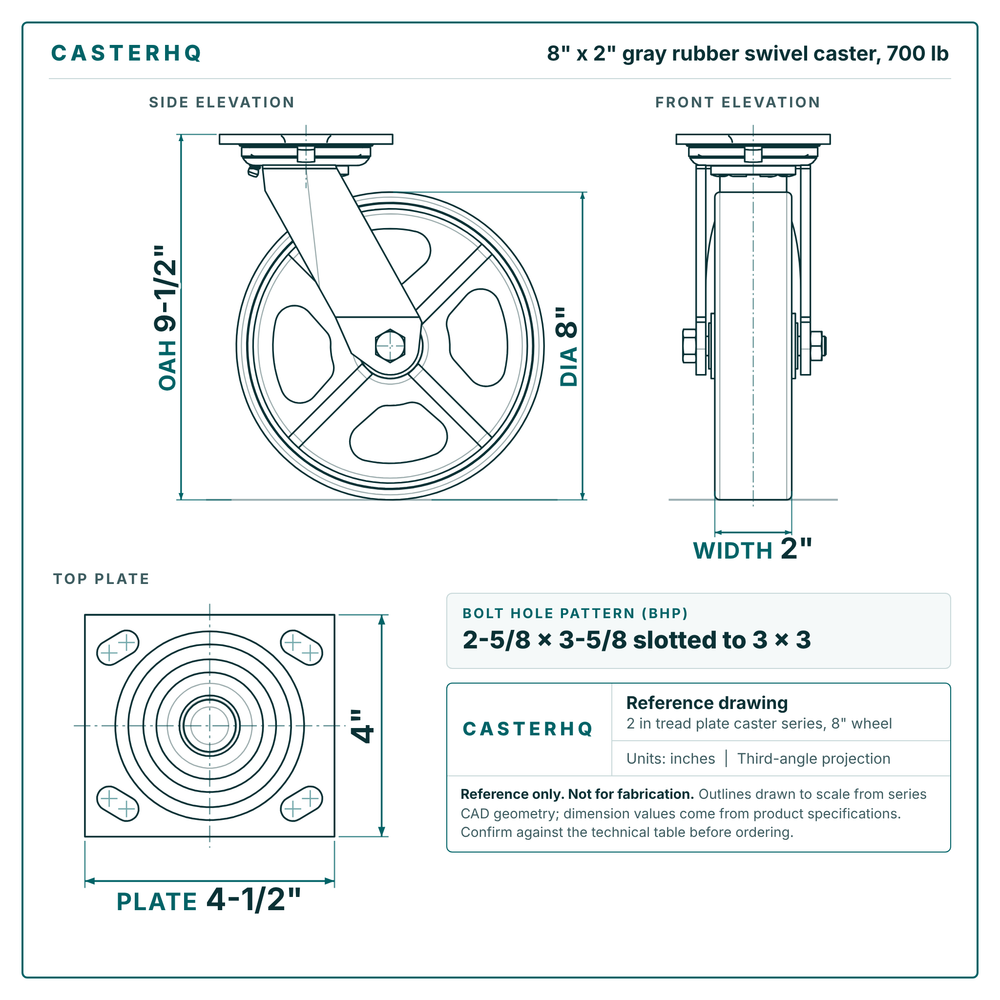

| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9-1/2" |
| Wheel Capacity | 700 lbs |
| Temp Range | -20°F to 180°F |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Frame Material | Zinc Plated Steel |

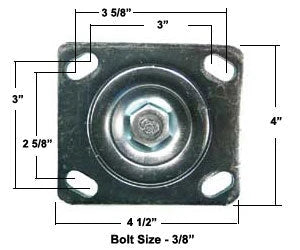

| Bolt Hole Pattern | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Rig Type | Swivel |
| Brake Type | No Brake |
