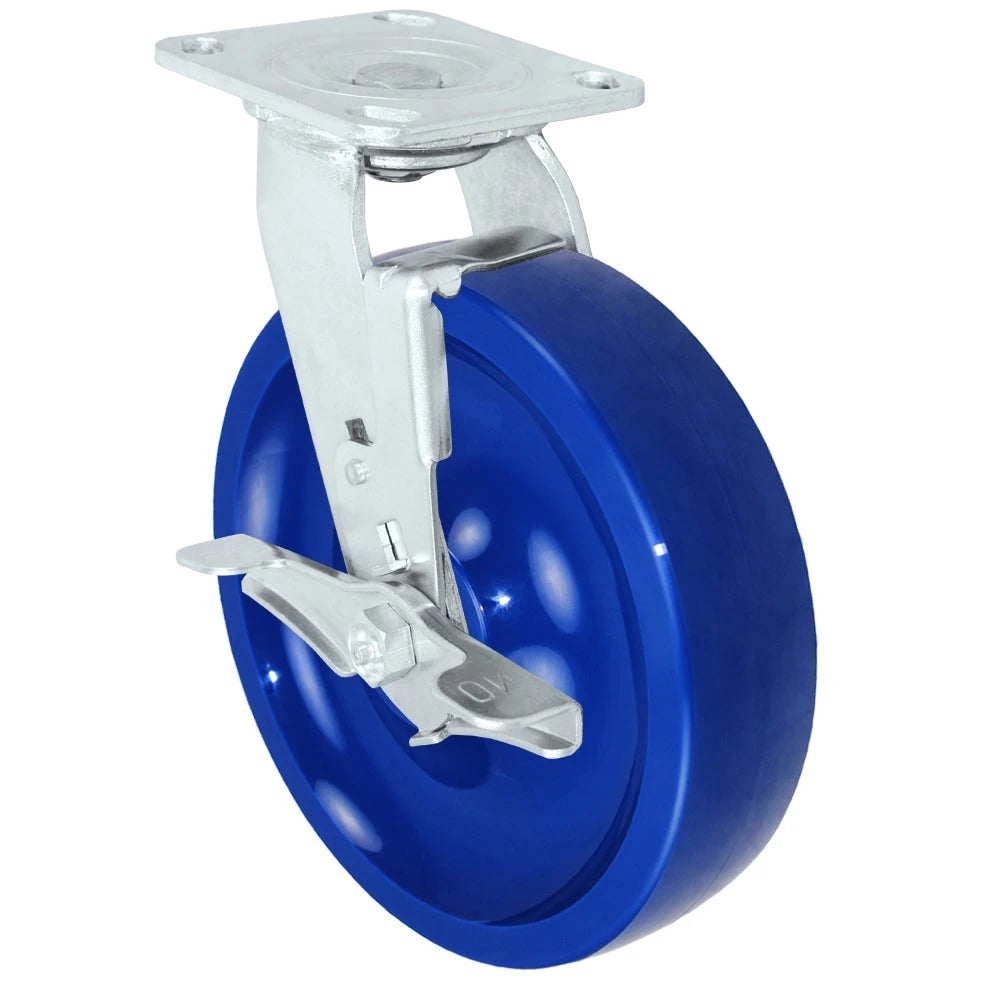

This 8" x 2" Solid Polyurethane Swivel Caster with Brake – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Blue Solid Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

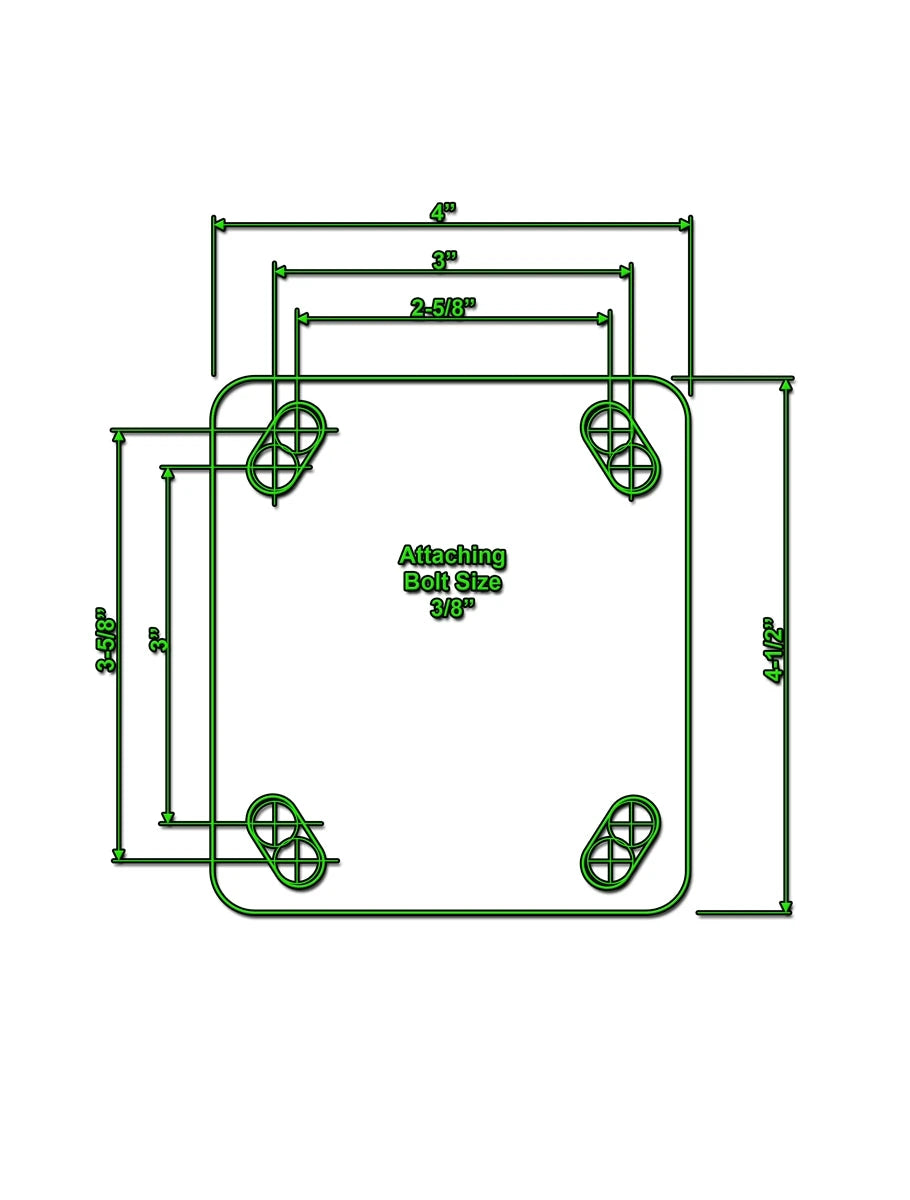

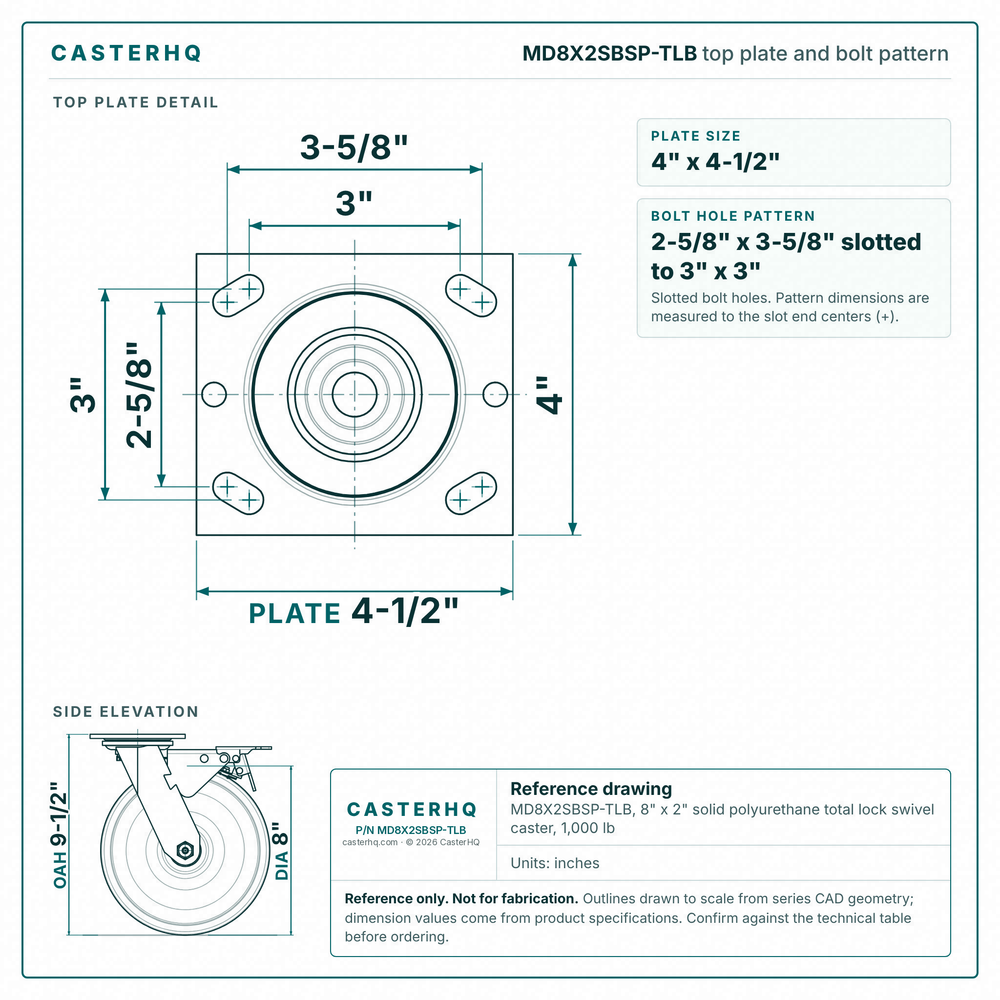

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Blue Solid Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

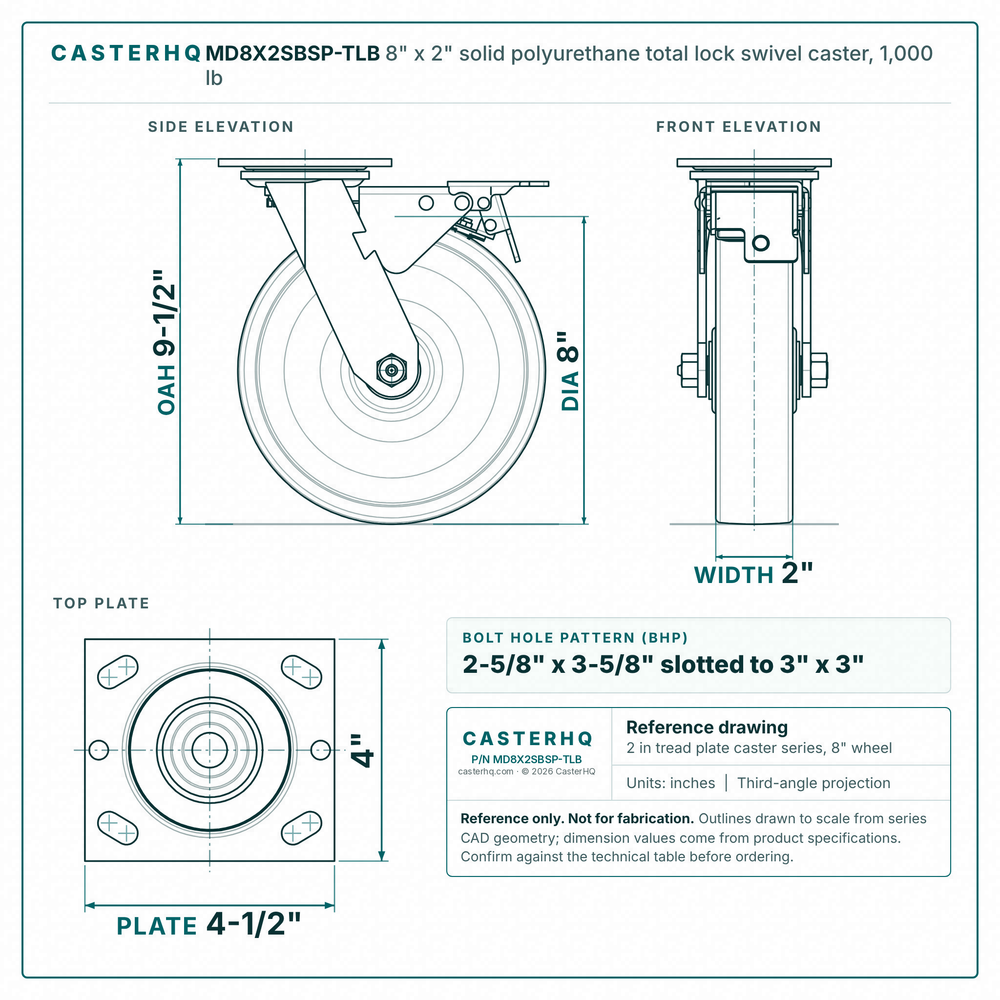

The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$80.00
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -40°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Blue Solid Polyurethane |
| Frame Material | Stainless Steel |

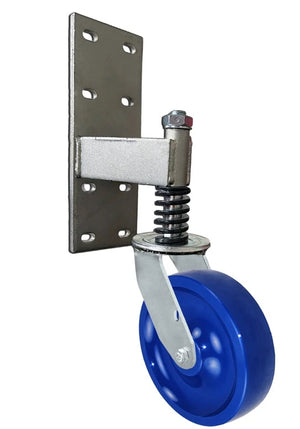

Spring Loaded Gate Wheel Heavy Duty – 8" Polyurethane, 1,000 lb | CasterHQ
8" x 2" · 1000 lbs
$199

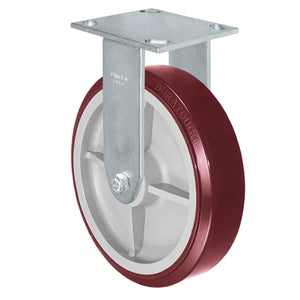

8" x 2" Polyurethane Rigid Caster – 1,000 lb | 4" x 4-1/2" Plate | CasterHQ
8" x 2" · 1000 lbs · Direct fit
$30
8" x 2" Swivel Caster Yoke 4" x 4-1/2" Top Plate Zinc 1,250 lb | CasterHQ
8" x 2" · 1250 lbs
$16
View all 8′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|

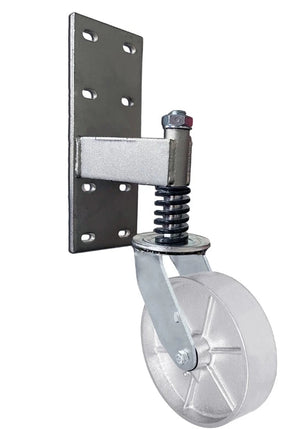

| 700 lbsLighter duty | 8" × 2"Gray Rubber | Swivel | 9-1/2" | $32.50 | View → | |
| 700 lbsLighter duty | 8" × 2"Cast Iron | — | — | $164.00 | View → | |
| 1000 lbs | 8" × 2"Blue Solid Polyurethane | Swivel with Total Lock Brake + brake | 9-1/2" | $80.00 | Viewing | |
| 1000 lbsSame capacity | 8" × 2"Blue Solid Polyurethane | — | — | $199.00 | View → | |
| 1000 lbsSame capacity | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → |
