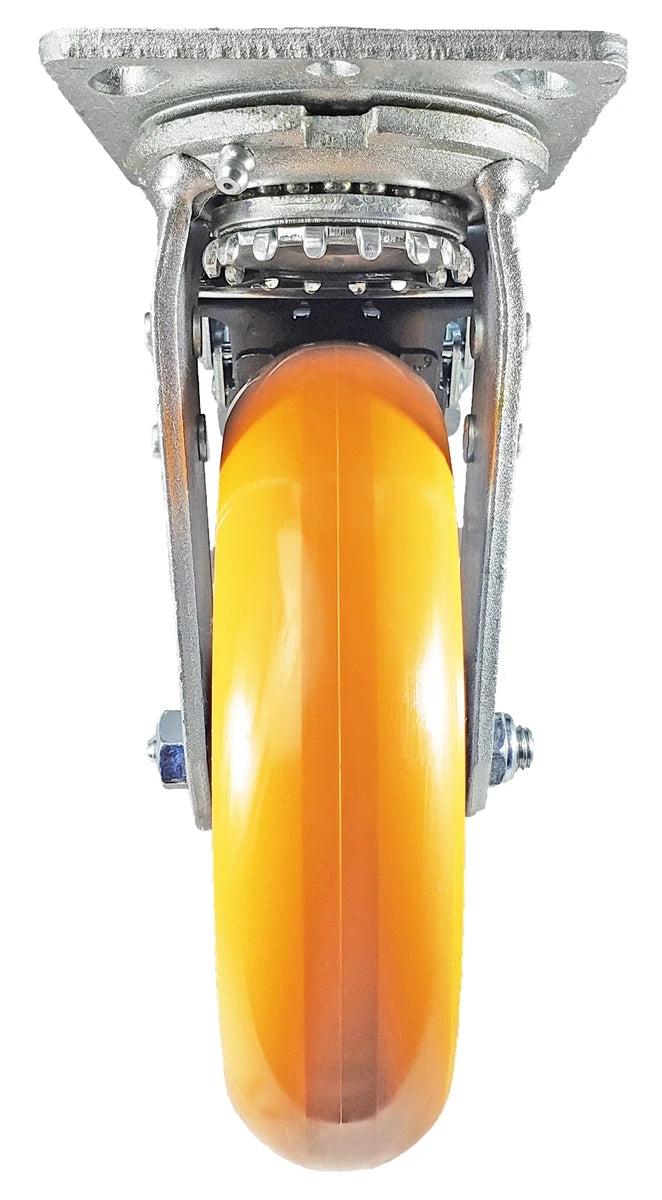

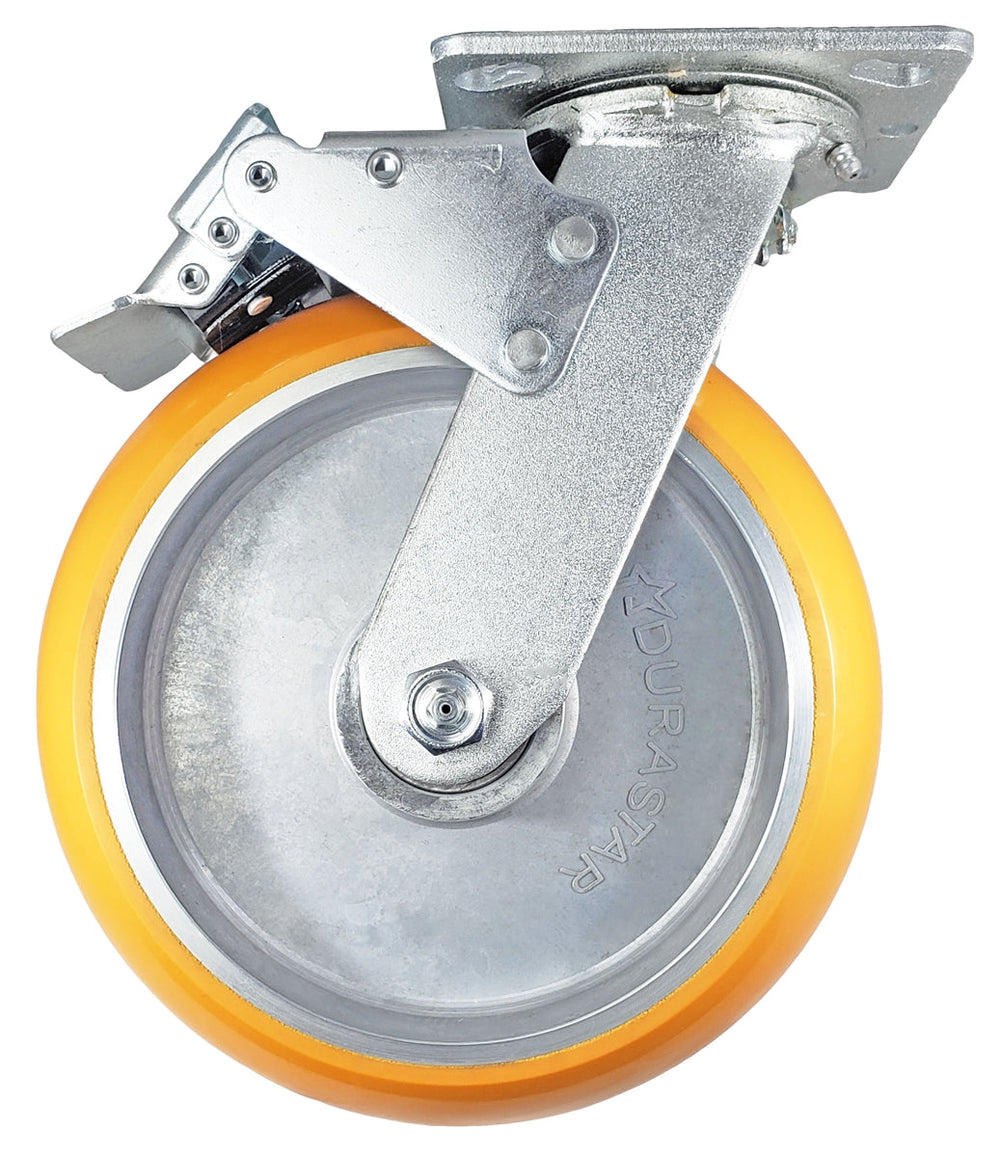

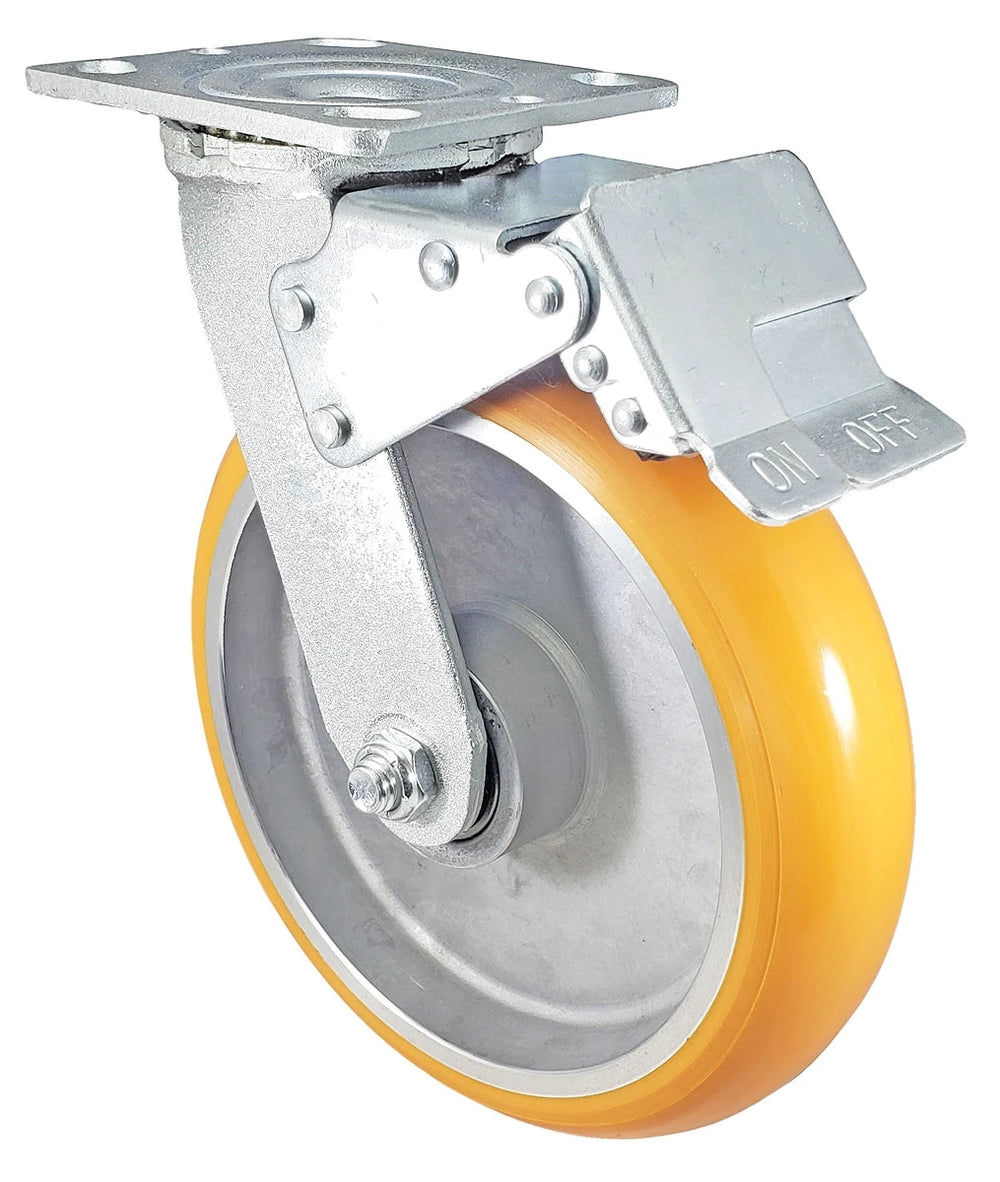

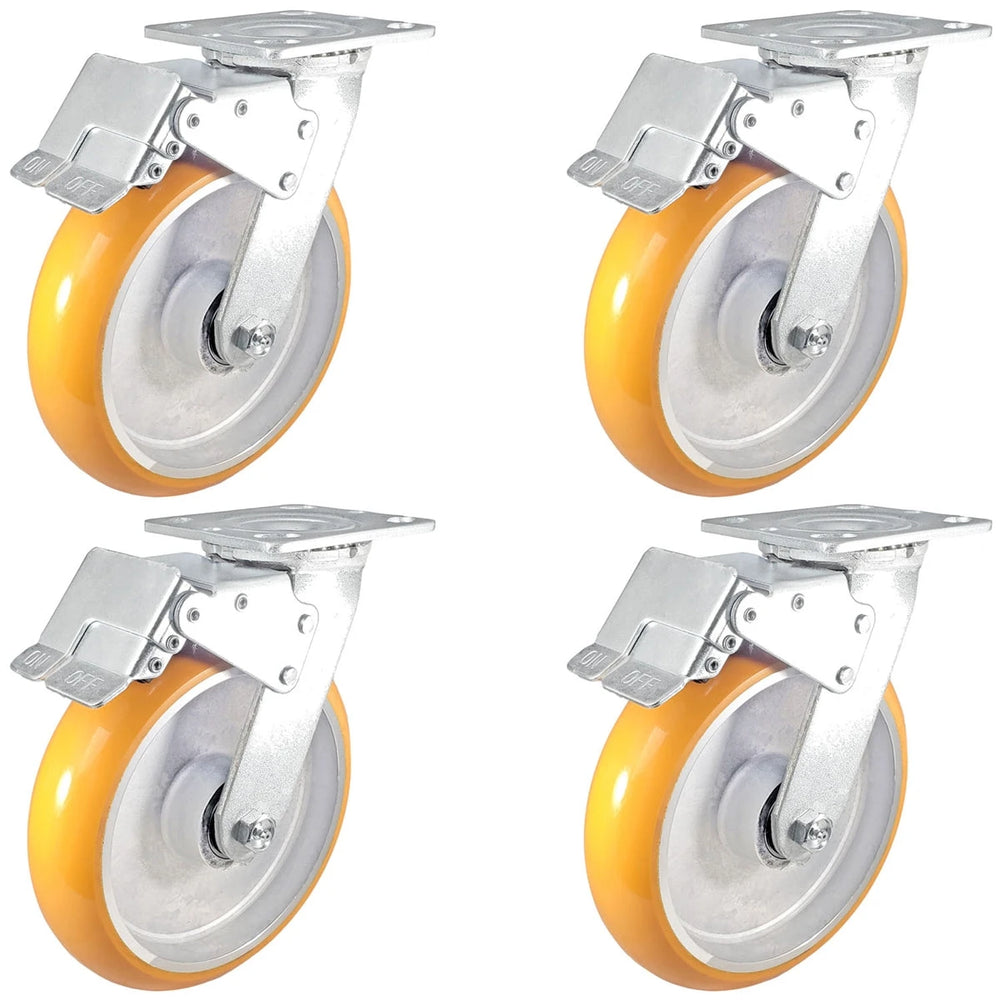

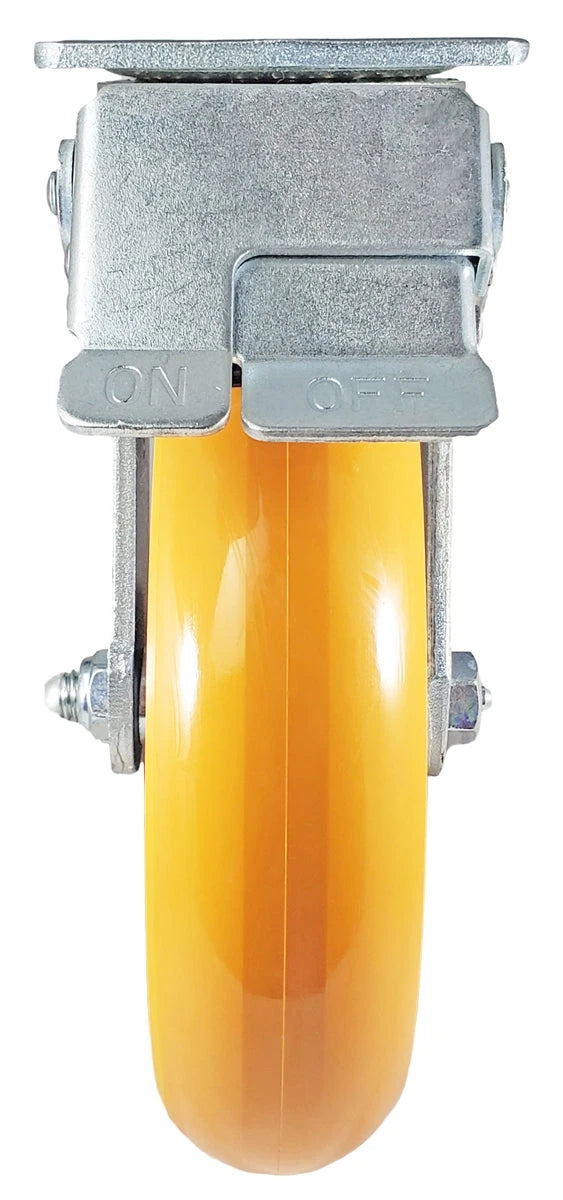

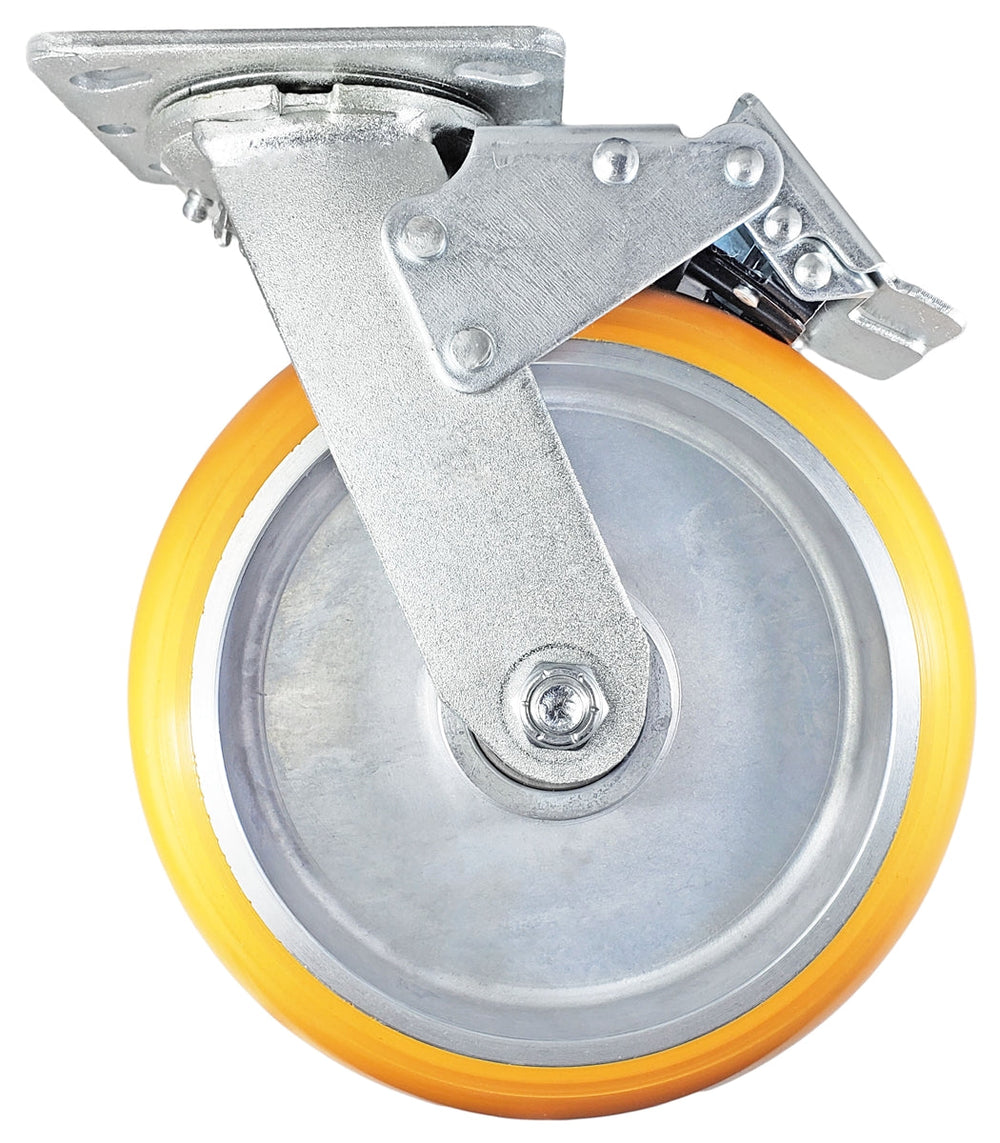

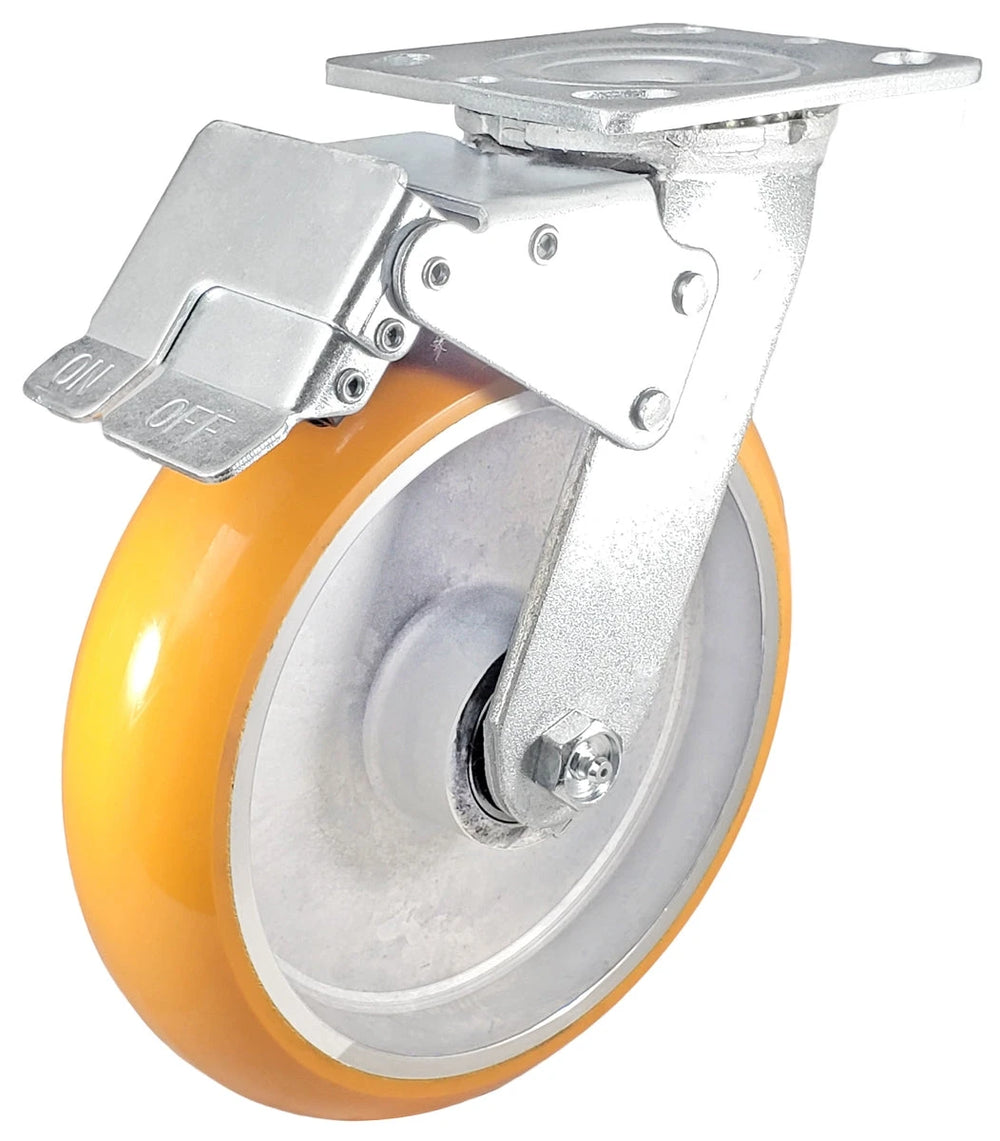

This 8" x 2" Orange Poly on Aluminum Total Lock Caster Set – 5,000 lb is rated to 5000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

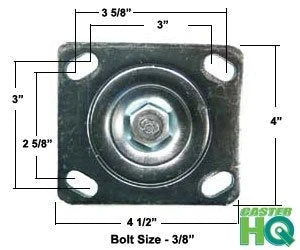

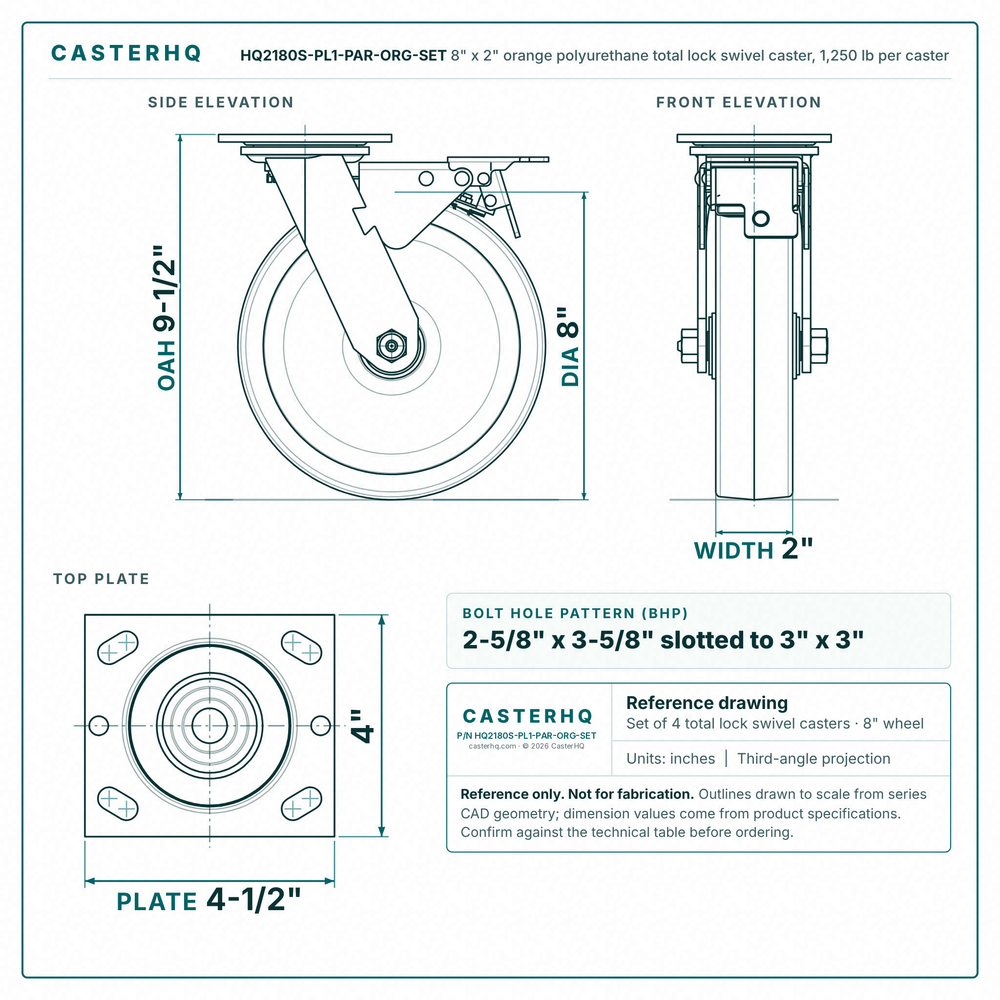

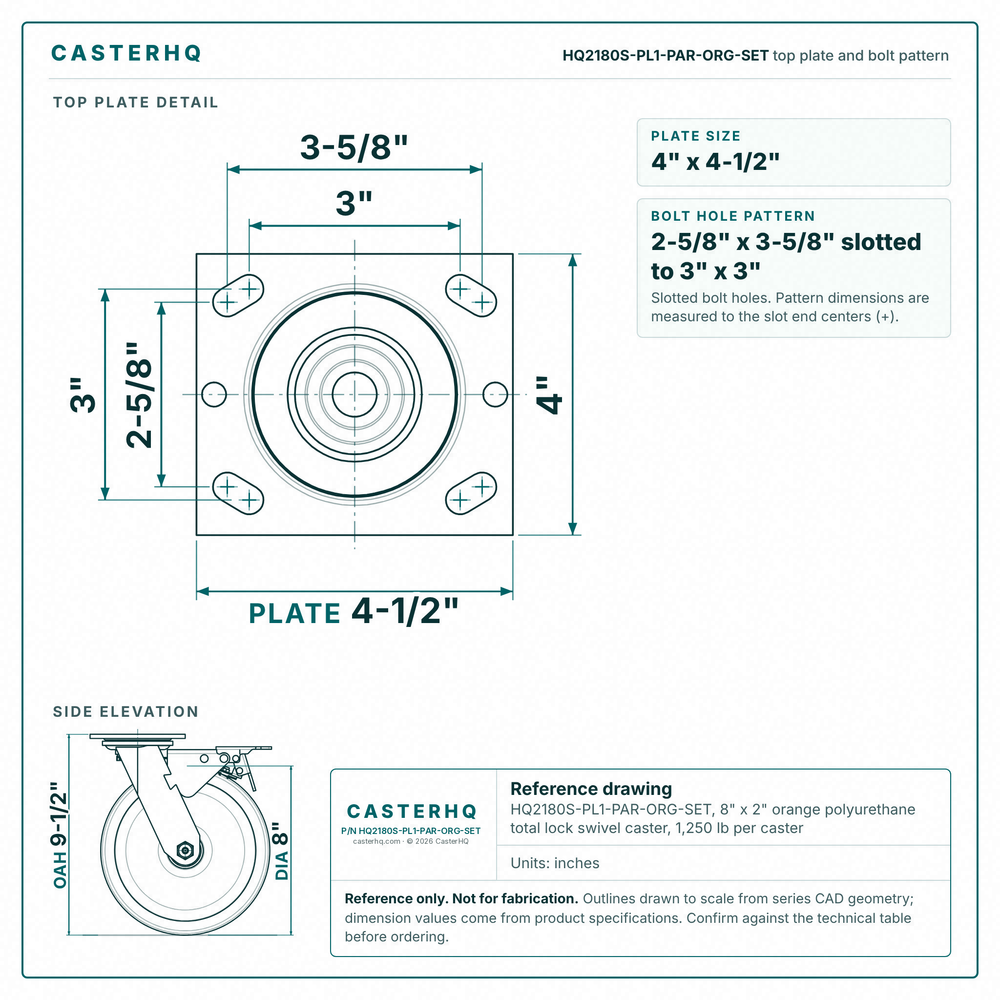

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$558.00
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 5000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Iron |
| Frame Material | Zinc Plated Steel |

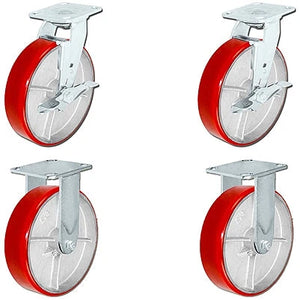

8" x 2" Red Polyurethane Swivel & Rigid Caster – 5000 lb | CasterHQ
8" x 2" · 5000 lbs · Direct fit
$171

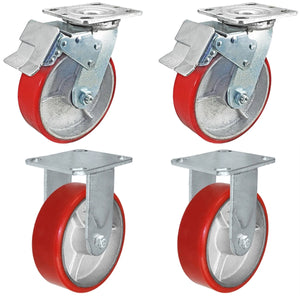

8" x 2" Poly on Steel Total Lock Caster Set – 5,000 lb | CasterHQ
8" x 2" · 5000 lbs · Direct fit
$260
8" x 2" Poly on Steel Total Lock Caster Set – 5,000 lb | CasterHQ
8" x 2" · 5000 lbs · Direct fit
$275
View all 8′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|

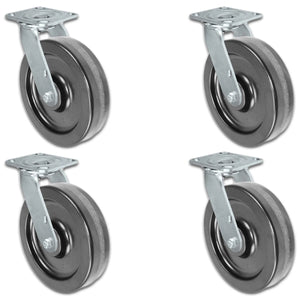

| 4000 lbsLighter duty | 8" × 2"Phenolic | Swivel | — | $134.00 | View → | |

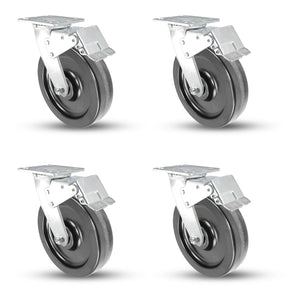

| 4000 lbsLighter duty | 8" × 2"Phenolic | — | 9-1/2" | $149.00 | View → | |
| 5000 lbs | 8" × 2"Polyurethane | — | 9-1/2" | $558.00 | Viewing | |
| 5000 lbsSame capacity | 8" × 2"Polyurethane | Rigid | 9-1/2" | $171.00 | View → | |
| 5000 lbsSame capacity | 8" × 2"Polyurethane | Rigid with Brake + brake | 9-1/2" | $260.00 | View → |
