![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-1086-top-plate-drawing_100x.png?v=1792277556)
Discover superior mobility and durability with the Albion Casters 4" x 2" Kingpinless Swivel Caster featuring a MAX-Efficiency Orange Wheel. Designed for industrial environments, this caster combines strength and smooth operation with its kingpinless design, reducing wear and extending service life. The 4" x 4.5" plate provides a stable foundation, ensuring secure attachment to your equipment. Whether you're upgrading your existing setup or outfitting new machinery, this caster delivers reliable performance and reduced maintenance, thanks to its innovative design and durable polyurethane construction.
Enhance the efficiency and longevity of your industrial operations with the Albion Casters 4" x 2" Kingpinless Swivel Caster. Invest in a product that prioritizes strength, stability, and reduced maintenance for all your heavy-duty needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

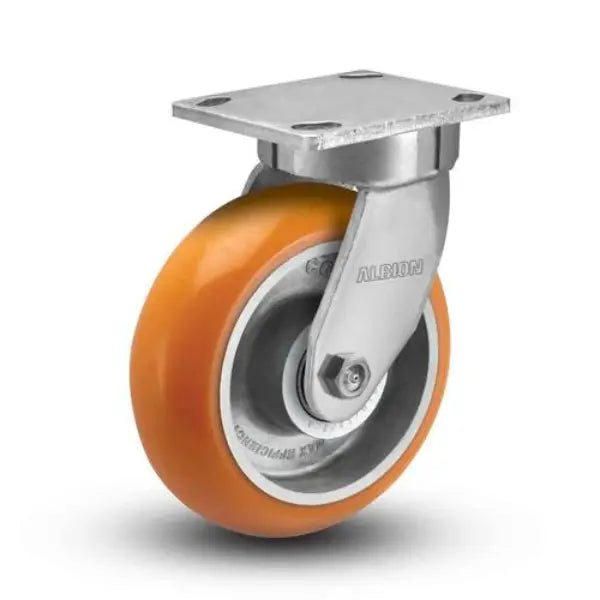

The Albion Casters 4" x 2" Kingpinless Swivel Caster with MAX-Efficiency Orange Polyurethane Wheel and 4" x 4.5" Heavy-Duty Plate is engineered to meet the rigorous demands of industrial applications. This high-performance caster is designed to provide reliable mobility, minimize maintenance, and maximize the lifespan of your equipment.
This caster features a kingpinless design, which is a significant advancement over traditional kingpin models. By eliminating the kingpin, a common failure point in swivel casters, this design enhances durability and reduces the need for frequent maintenance, making it ideal for heavy-duty industrial environments.
The MAX-Efficiency Orange Polyurethane Wheel is another standout feature of this caster. Known for its superior wear resistance and smooth rolling performance, this wheel material is optimized for both longevity and quiet operation, ensuring your equipment moves effortlessly even on rough surfaces. The vibrant orange color also aids in visual identification, which can be crucial in busy industrial settings.
The heavy-duty 4" x 4.5" plate offers a stable and secure mounting solution, ensuring that the caster remains firmly attached to your equipment. This robust plate size is specifically designed to distribute weight evenly, further enhancing the caster’s load-bearing capabilities.
With a strong emphasis on performance, the Albion Casters 4" x 2" Kingpinless Swivel Caster is capable of handling heavy loads with ease. Its design reduces the wear and tear typically associated with frequent movement and heavy-duty use. The corrosion-resistant components ensure that this caster will maintain its integrity even in harsh industrial environments, making it a reliable choice for long-term use.
Additionally, the smooth swivel action of this caster provides superior maneuverability, allowing for easy navigation in confined spaces and around obstacles. This makes it an ideal solution for applications where precise movement is essential.
The versatility of the Albion Casters 4" x 2" Kingpinless Swivel Caster makes it suitable for a wide range of industrial uses. Whether you need to upgrade carts, machinery, or other equipment requiring robust and reliable mobility solutions, this caster is up to the task. Its quiet operation also makes it an excellent choice for environments where noise control is a priority.
Investing in the Albion Casters 4" x 2" Kingpinless Swivel Caster with MAX-Efficiency Orange Polyurethane Wheel and Heavy-Duty Plate is a smart choice for those seeking durability, performance, and reduced maintenance. Model 110AN04228S is specifically designed to meet the demands of industrial applications, offering a reliable solution for all your heavy-duty needs.
This Albion 110AN04228S 4" x 2" Polyurethane Kingpinless Swivel Caster is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

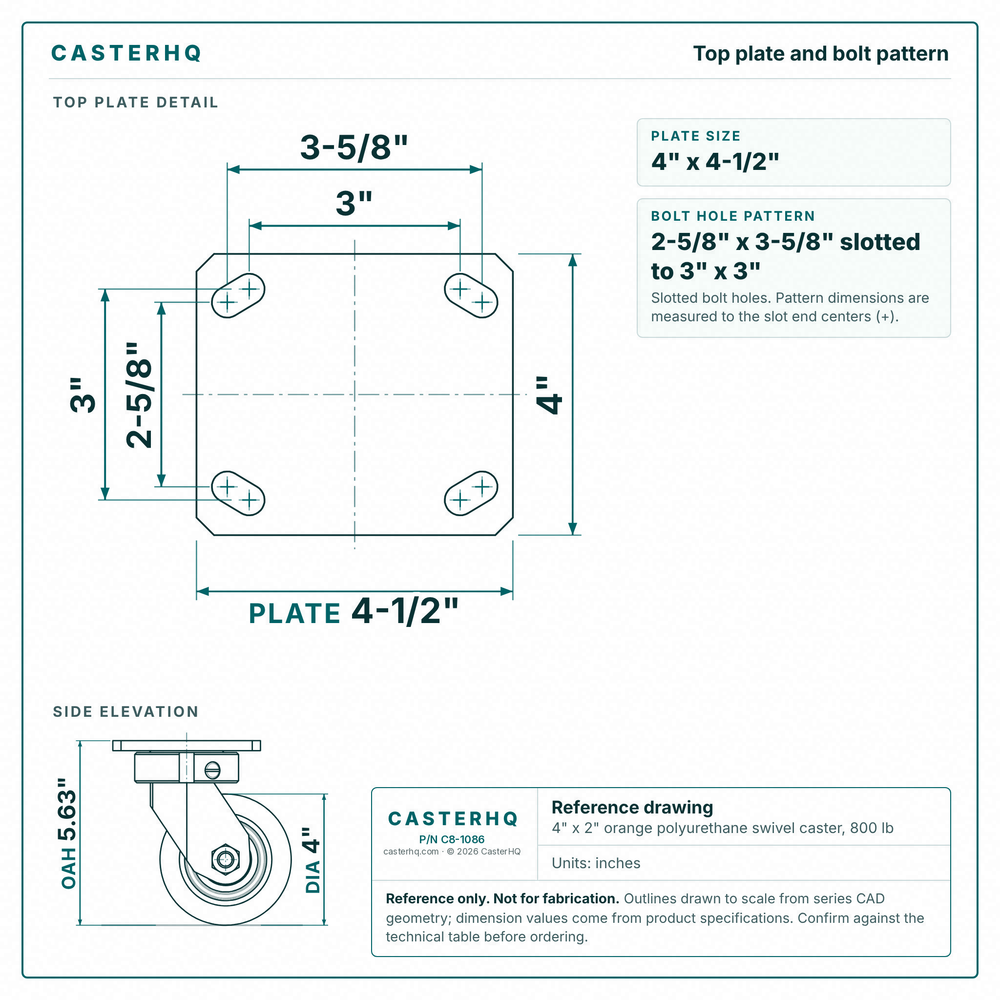

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$126.00
| Identification | |
|---|---|
| Part Number / SKU | 110AN04228S |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5.63" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 3-3/16" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-3/16" |
| Swivel Construction | Kingpinless |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 85 Shore A |
| Wheel Color | Orange Tread on Aluminum Core |
| Bearing Type | Precision Ball Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -40°F to 180°F |
| Warranty | 3 Years |

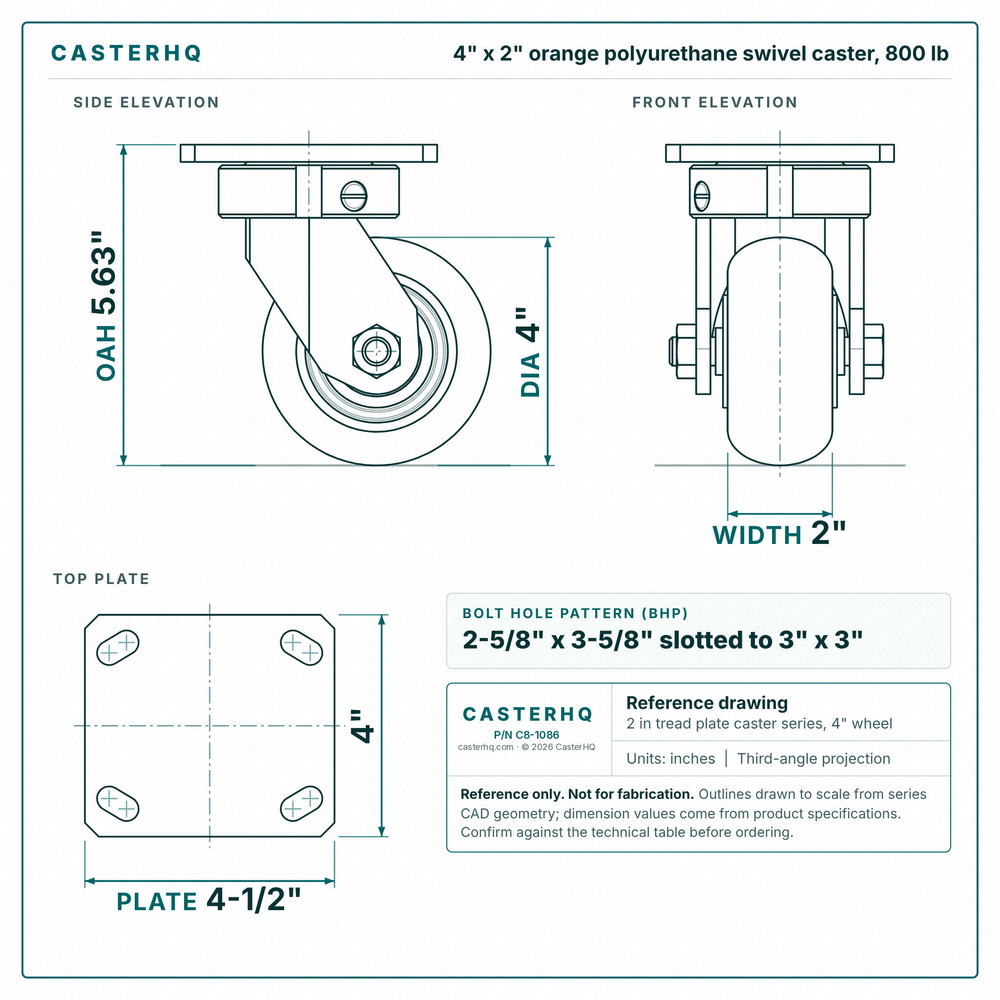

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | Brake | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Polyurethane | Swivel | 5.63" | $126.00 | Viewing | |
 Direct fit4" x 2" Phenolic Rigid Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → |
 Direct fit4" x 2" Phenolic Swivel Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
