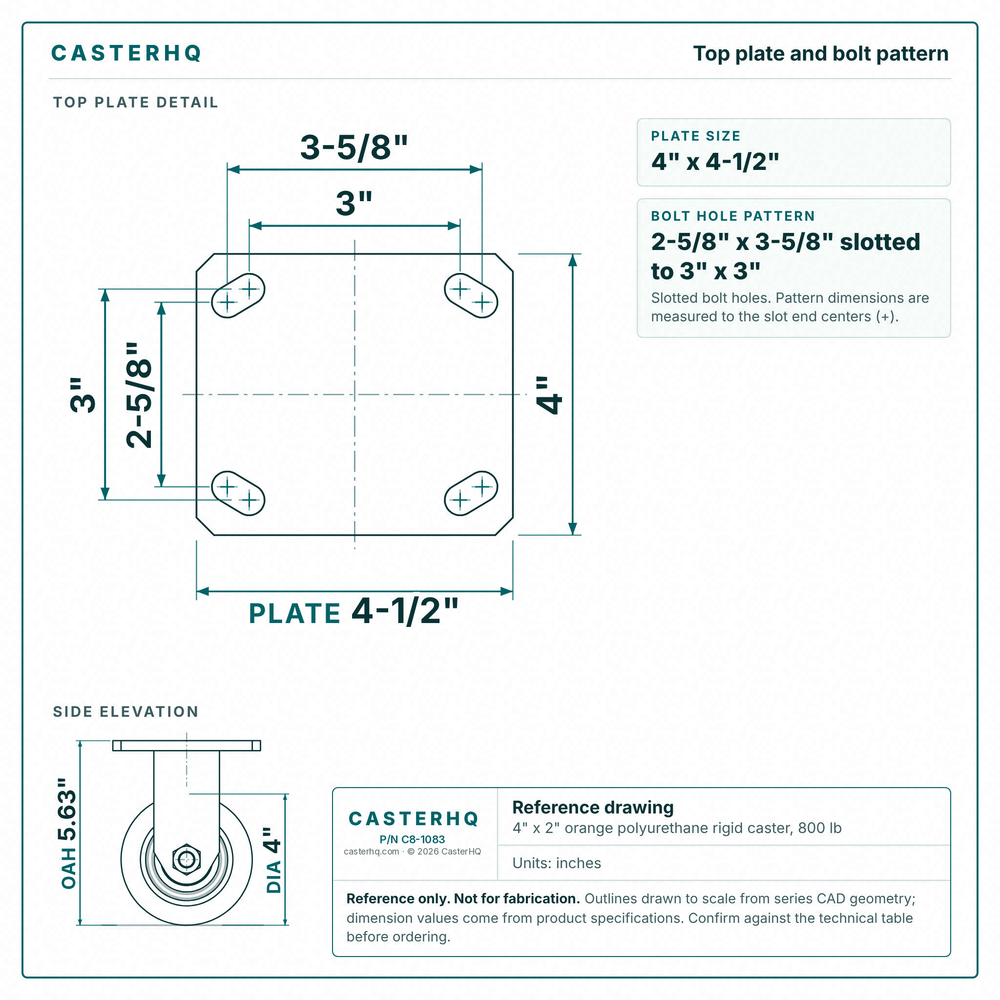

![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-1083-top-plate-drawing_100x.png?v=1792277557)

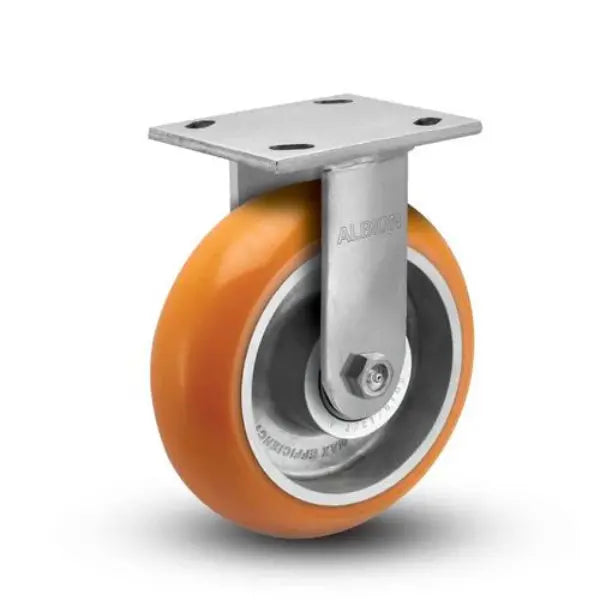

The Albion Casters 4" x 2" Kingpinless Swivel Caster with MAX-Efficiency Orange Wheel is engineered for unmatched performance and reliability. Featuring a robust 4" x 4-1/2" plate, this caster is perfect for demanding industrial applications that require high load capacities and smooth, efficient mobility. The innovative Kingpinless design ensures maximum durability and resistance to shock and impact, reducing the risk of caster failure under heavy loads. With the advanced MAX-Efficiency Orange Wheel, this caster delivers a seamless, quiet ride while minimizing floor damage and ensuring long-lasting use on various surfaces.
Elevate your industrial mobility solutions with the Albion Casters 4" x 2" Kingpinless Swivel Caster. Experience superior performance, durability, and efficiency with the MAX-Efficiency Orange Wheel and robust Kingpinless design.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" Kingpinless Swivel Caster with MAX-Efficiency Orange Wheel and 4" x 4.5" Plate is expertly engineered for superior performance in demanding industrial environments. This caster combines advanced design with high-quality materials, making it the ideal choice for applications that require durability, smooth maneuverability, and reliable load-bearing capacity.
The innovative Kingpinless Design of this caster is a standout feature, providing exceptional durability by eliminating the traditional kingpin, which is often the weakest point in conventional swivel casters. This design significantly enhances the caster’s resistance to shock, impact, and heavy loads, ensuring long-lasting performance even in the most rigorous industrial settings.
The MAX-Efficiency Orange Wheel is crafted from a specialized material that not only ensures a smooth and quiet operation but also minimizes wear and tear on floors. This wheel is designed to handle the rigors of industrial use while providing a seamless, low-resistance roll, making it ideal for both smooth and uneven surfaces.
Engineered for Heavy-Duty Performance, the Albion Casters 4" x 2" Swivel Caster is capable of supporting substantial weights, making it perfect for heavy-duty equipment, carts, and material handling applications. Its robust construction and high load capacity ensure it can handle the demands of industrial environments with ease.
The versatility of the Albion Casters 4" x 2" Kingpinless Swivel Caster with MAX-Efficiency Orange Wheel makes it suitable for a wide range of industrial applications. Whether you are outfitting carts, dollies, or other material handling equipment, this caster offers the reliability and performance you need to keep operations running smoothly.
Identified by Model Number 110AN04228R, this caster is easily identifiable for reordering and compatibility checks, ensuring you get the right part for your needs every time. The standard 4" x 4.5" plate size provides easy integration with existing equipment setups.
Upgrade your industrial equipment with the Albion Casters 4" x 2" Kingpinless Swivel Caster and experience the difference that superior design, advanced materials, and heavy-duty construction can make. From enhanced durability to smooth, quiet operation, this caster is the ideal solution for those seeking reliability and efficiency in their industrial applications.
This Albion 110AN04228R 4" x 2" Orange Kingpinless Swivel Caster – CasterHQ is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$84.00
| Identification | |
|---|---|
| Part Number / SKU | 110AN04228R |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5.63" |
| Rig Type | Swivel |
| Brake | No Brake |
| Swivel Construction | Kingpinless |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 85 Shore A |
| Wheel Color | Orange Tread on Aluminum Core |
| Bearing Type | Precision Ball Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -40°F to 180°F |
| Warranty | 3 Years |

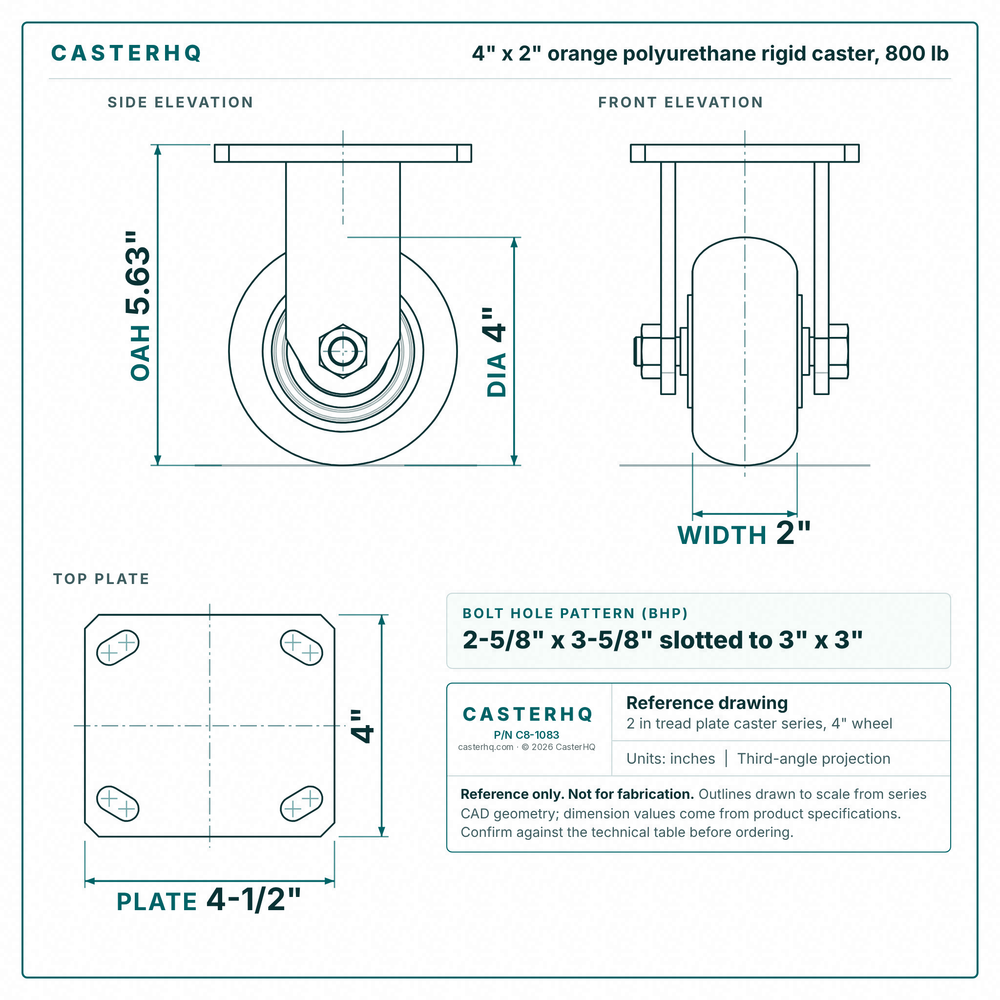

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | Brake | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Polyurethane | Swivel | 5.63" | $84.00 | Viewing | |
 Direct fit4" x 2" Phenolic Rigid Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → |
 Direct fit4" x 2" Phenolic Swivel Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-1083-top-plate-drawing_1000x.png?v=1792277557)
