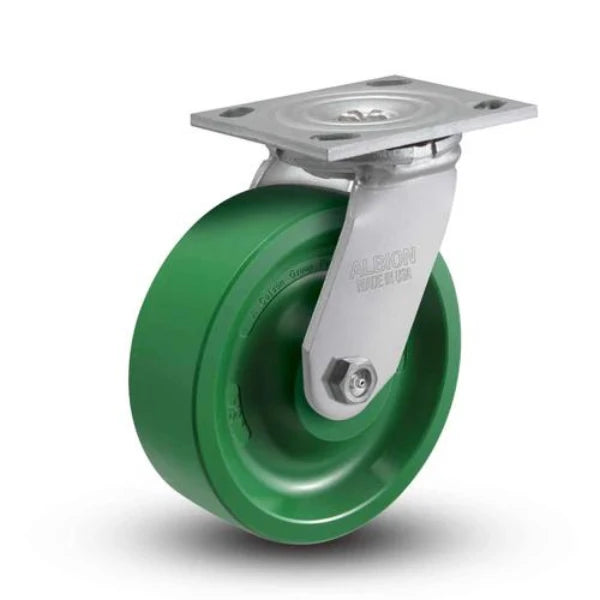

Experience unmatched maneuverability and smooth performance with the Albion Casters 4" x 2" USA-Made Swivel Caster. Designed with a solid polyurethane wheel and a durable 4" x 4-1/2" top plate, this caster ensures stability and strength under heavy loads. Ideal for demanding environments, its ergonomic design minimizes effort and maximizes efficiency.
Improve your equipment's operational efficiency with our Albion Casters Swivel Caster. Designed and manufactured in the USA, this caster offers durability and ergonomic benefits that are unmatched in the industry.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" Swivel Caster is expertly crafted in the USA, ensuring premium quality and durability. Featuring an ergonomic solid polyurethane wheel, this caster is designed for both high performance and substantial load management. The swivel functionality allows for 360-degree rotation, providing unparalleled mobility across a variety of environments including industrial floors, warehouses, and other challenging surfaces.
With its solid construction, the caster's top plate, measuring 4 inches by 4.5 inches, offers robust support and stability. This design not only enhances the operational efficiency of the equipment but also ensures a longer lifespan with minimal maintenance requirements.
To maximize the caster's efficiency and lifespan, regular maintenance such as periodic cleaning of the wheel and checking for secure attachment of the plate is recommended. Suitable for use on various types of floors, the caster's polyurethane wheel provides excellent traction and smooth operation, reducing wear and tear on both the wheel and the floor.
Elevate your equipment's performance with our Albion Casters Swivel Caster. Click to explore our range and benefit from our expert support and rapid delivery options.
This Albion 16XI04229S 4" x 2" Polyurethane Swivel Ergonomic Caster – CasterHQ is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

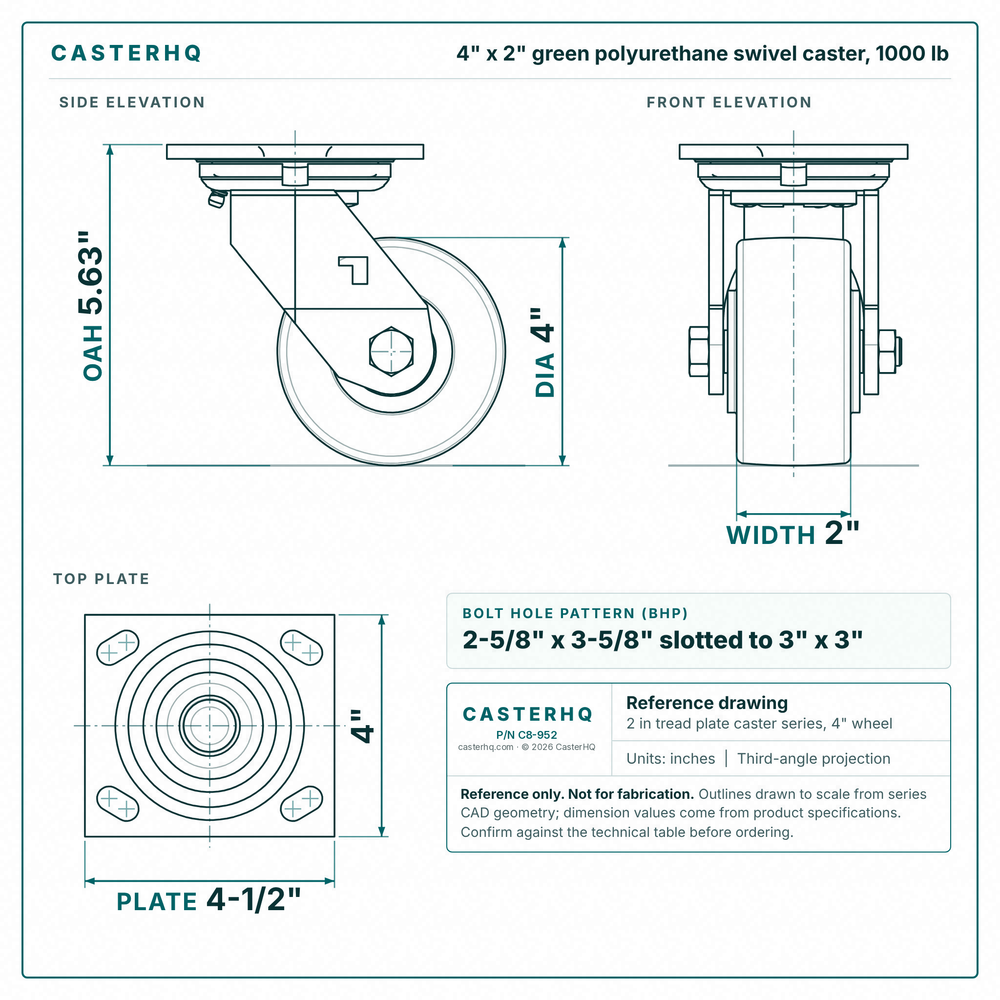

The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$59.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Solid Polyurethane |
| Frame Material | Zinc Plated Steel |
4" x 2" Rigid Caster Yoke 4" x 4-1/2" Top Plate Zinc Plated | CasterHQ
4" x 2" · 1000 lbs
$10
4" x 2" Poly on Aluminum Swivel Caster 4-1/2" x 6-1/4" Plate – 1,000 lb | CasterHQ
4" x 2" · 1000 lbs
$63
4" x 2" Polyurethane on Aluminum Dual Wheel Caster – 1,000 lb | CasterHQ
4" x 2" · 1000 lbs · Direct fit
$183
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 4" × 2"Cast Iron | Swivel | 5-5/8" | $29.00 | View → | |
| 800 lbsLighter duty | 4" × 2"Polyurethane | Rigid | 5-5/8" | $164.00 | View → | |
| 1000 lbs | 4" × 2"Solid Polyurethane | Swivel | 5.63" | $59.00 | Viewing | |
| 1000 lbsSame capacity | 4" × 2"Polyurethane | — | 5-5/8" | $183.00 | View → | |
| 1000 lbsSame capacity | 4" × 2" | Rigid | 5-5/8" | $10.00 | View → |
