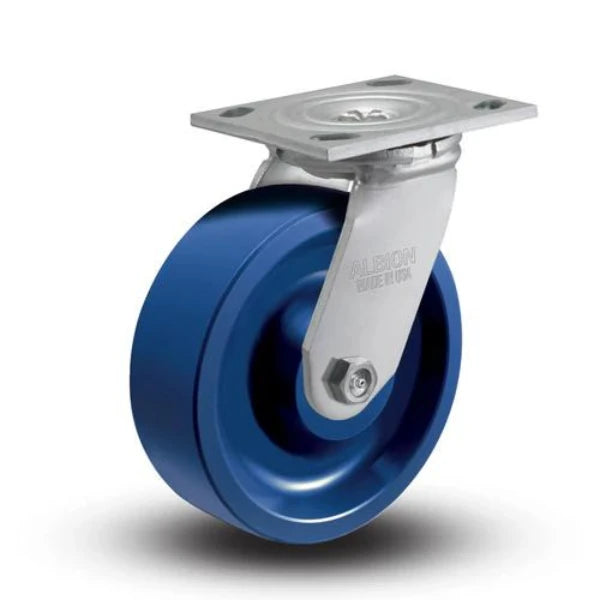

Invest in reliable mobility with the Albion Casters 4" x 2" USA-Made Top Total Lock Caster. Featuring a robust 4" x 4.5" top plate and a solid polyurethane wheel, this caster delivers outstanding durability and stability. The top total lock mechanism secures both the wheel and the swivel for maximum safety, making it ideal for industrial environments where precision and safety are paramount. Built in the USA with high-quality materials, this caster ensures smooth, reliable operation even under heavy loads, reducing maintenance and downtime.
Upgrade your industrial or commercial equipment with the Albion Casters Top Total Lock Caster. Experience the perfect combination of American-made quality, exceptional durability, and superior performance.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" USA-Made Top Total Lock Caster with a solid polyurethane wheel is a premium choice for industries that demand durability, stability, and safety. Engineered with a robust 4" x 4.5" plate, this caster is ideal for a wide range of heavy-duty applications, offering superior load capacity and smooth performance. The top total lock feature ensures that both the wheel and swivel remain securely in place, providing maximum control in industrial environments.
Albion Casters is a trusted name in the industry, known for producing high-quality, reliable casters designed for the most demanding environments. The 4" x 2" Top Total Lock Caster is no exception. With its solid polyurethane wheel and secure top plate, this caster offers unmatched stability and performance, reducing the risk of accidents and equipment damage. Whether you’re upgrading existing equipment or outfitting new machinery, Albion Casters provides the reliability and longevity you need to keep your operations running smoothly.
Don’t compromise on quality or safety. Invest in the Albion Casters 4" x 2" USA-Made Top Total Lock Caster and experience the difference in performance and durability. Order Model 16XI04202S now and ensure your equipment is outfitted with the best in the industry.
This Albion 16XI04202S 4" x 2" Polyurethane Total Lock Caster – 4" x 4.5" Plate is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

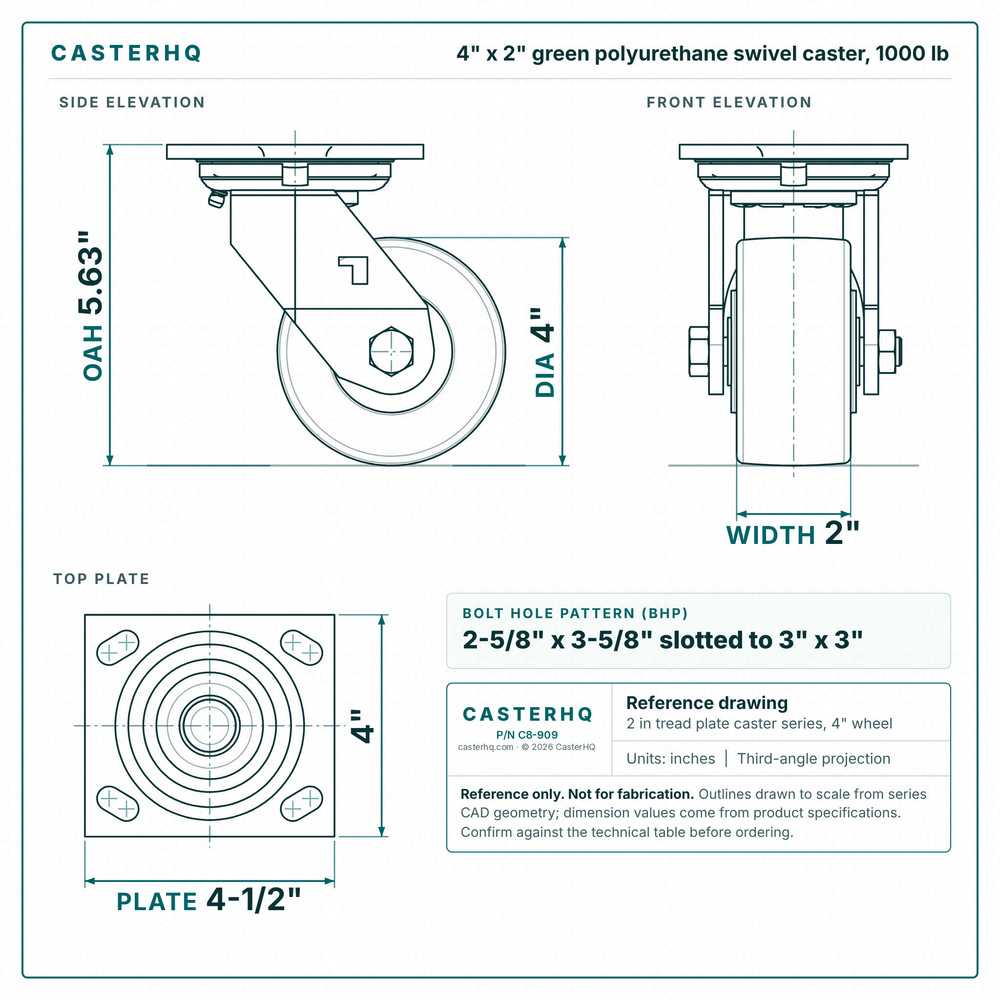

The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$46.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Solid Polyurethane |
| Frame Material | Zinc Plated Steel |
