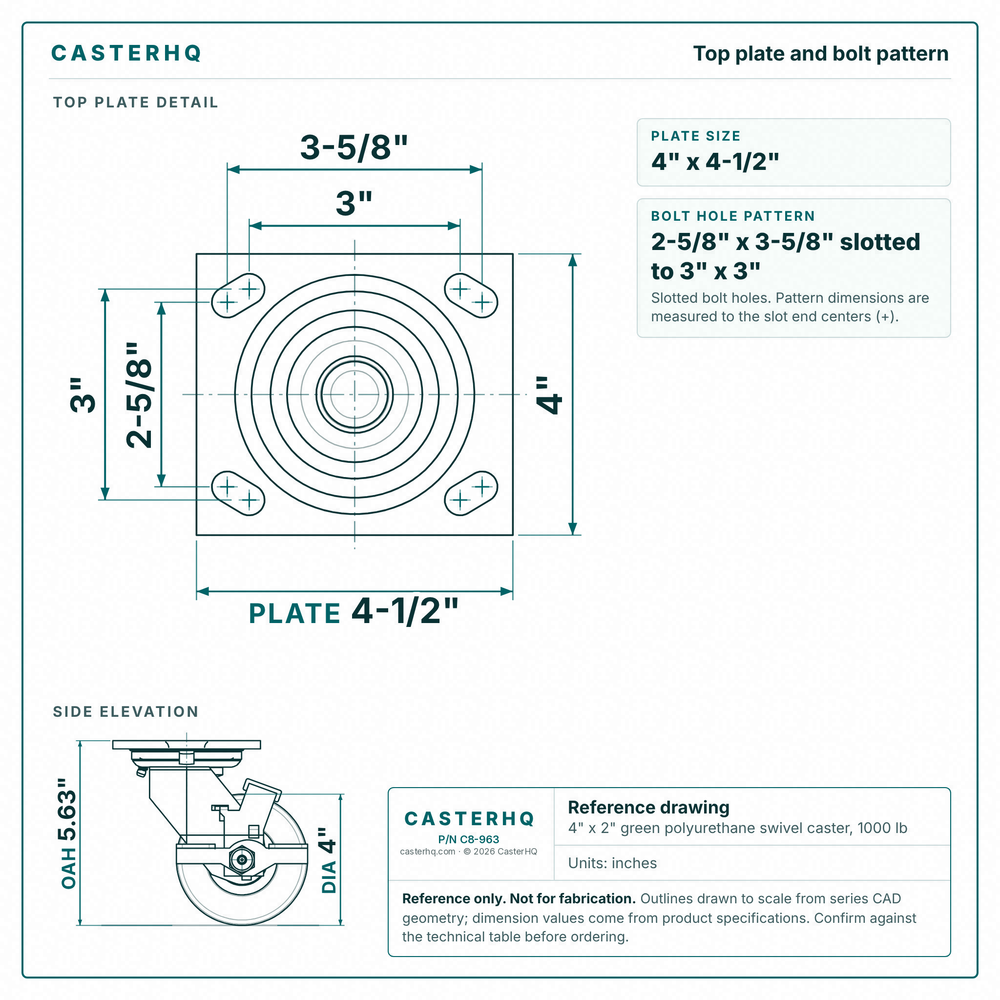

![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-963-top-plate-drawing_100x.png?v=1792285942)

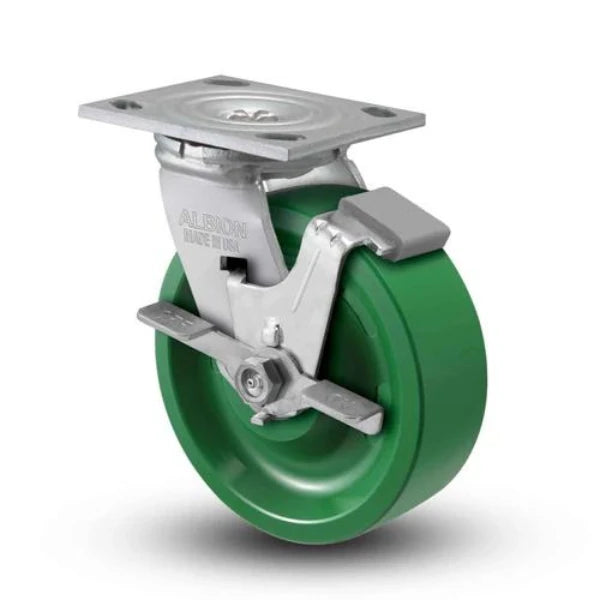

Upgrade your mobility solutions with the Albion Casters 4" x 2" USA-Made Side Locking Caster. This high-quality caster features an ergonomic polyurethane wheel that ensures smooth, quiet operation while providing excellent durability. The side locking mechanism adds an extra layer of stability, making it ideal for applications where secure positioning is essential. With a sturdy 4" x 4-1/2" top plate, this caster supports a range of equipment, enhancing both safety and performance. Made in the USA, it combines superior craftsmanship with advanced materials for a reliable and long-lasting solution.
Discover the benefits of the Albion Casters Side Locking Caster. With its ergonomic design and robust construction, it offers a reliable solution for secure and smooth mobility. Invest in quality and performance with this USA-made caster.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" Side Locking Caster is engineered to deliver exceptional performance and durability for a wide range of industrial applications. Proudly made in the USA, this caster features a high-quality ergonomic polyurethane wheel and a sturdy 4" x 4.5" top plate, ensuring reliable and smooth mobility.
Albion Casters is renowned for its commitment to quality and innovation. The 4" x 2" Side Locking Caster model 16XI04229SFBA exemplifies this dedication with its advanced design and robust features. Whether you need reliable mobility for heavy equipment or a caster that enhances the stability of your setup, this product meets the highest standards of performance and durability.
Upgrade your industrial equipment with the Albion Casters 4" x 2" Side Locking Caster and experience the benefits of superior engineering and quality. Order now to enhance your equipment's mobility and stability.
This Albion 16XI04229SFBA 4" x 2" Polyurethane Caster with Wheel Lock Brake is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for Up to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$42.00
| Identification | |
|---|---|
| Part Number / SKU | 16XI04229SFBA |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5.63" |
| Brake | Wheel Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 4.08" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-11/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Solid Polyurethane |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 70 Shore D |
| Wheel Color | Green Polyurethane |
| Bearing Type | Pedestal Precision Ball Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 180°F |
| Warranty | 3 Years |

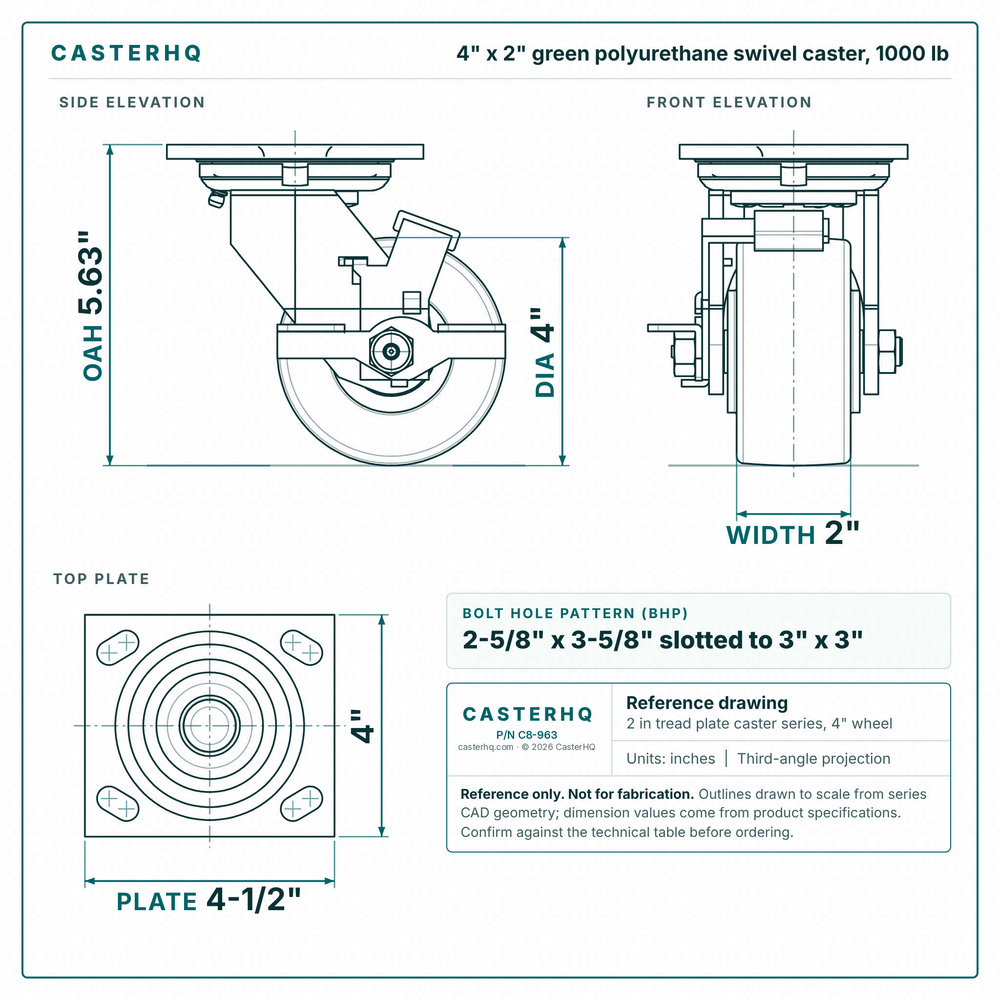

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
 Direct fit4" x 2" Phenolic Swivel Caster – 800 lb |
800 lbsLighter duty | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
| 800 lbsLighter duty | 4" × 2"Phenolic | Swivel | 5-5/8" | $29.00 | View → | |
| 1000 lbs | 4" × 2"Solid Polyurethane | — | 5.63" | $42.00 | Viewing | |
| 1000 lbsSame capacity | 4" × 2"Polyurethane | Swivel | 5-5/8" | $183.00 | View → | |
| 1000 lbsSame capacity | 4" × 2" | Rigid | 5-5/8" | $10.00 | View → |
