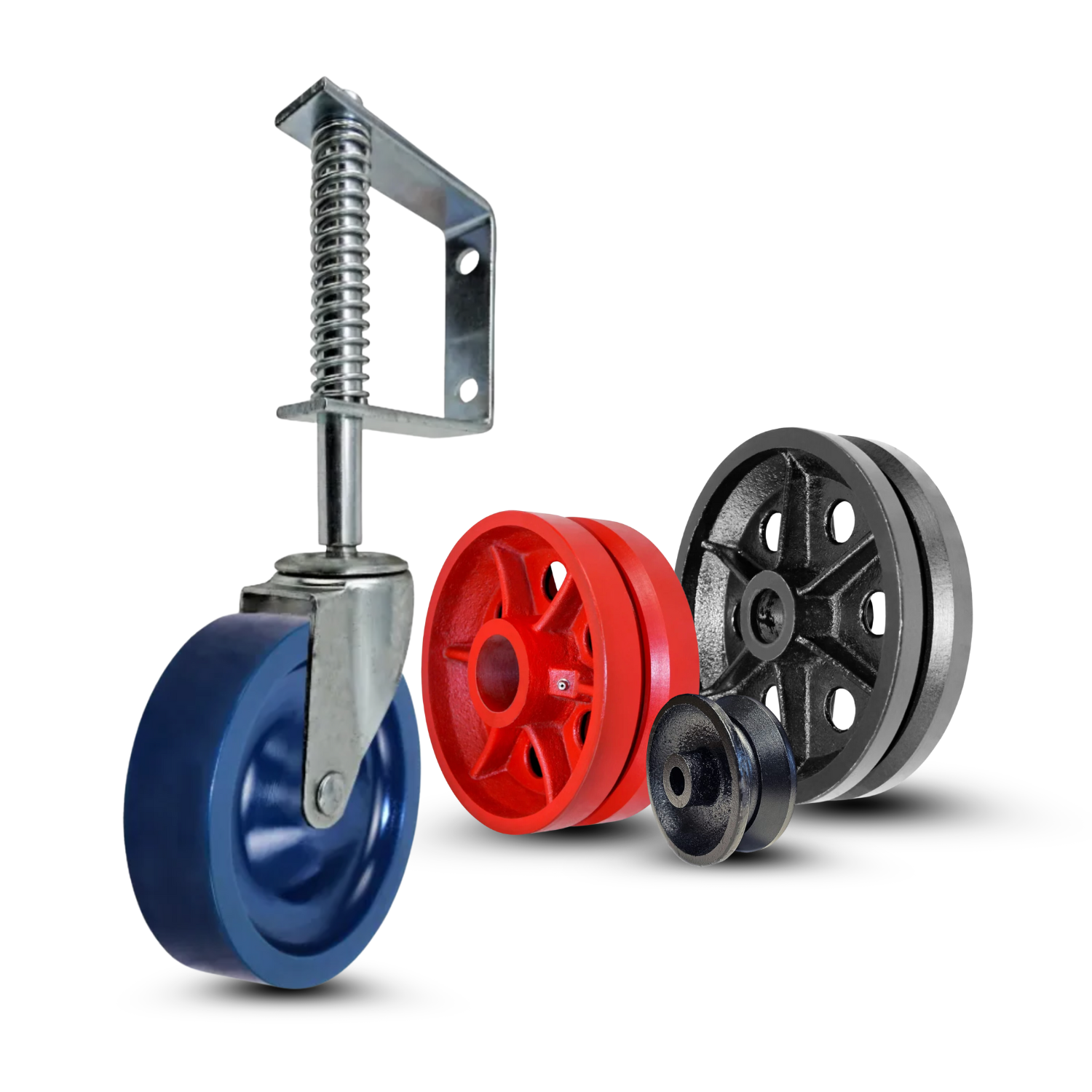

Gate Casters
BBQ Pit & Smoker Casters

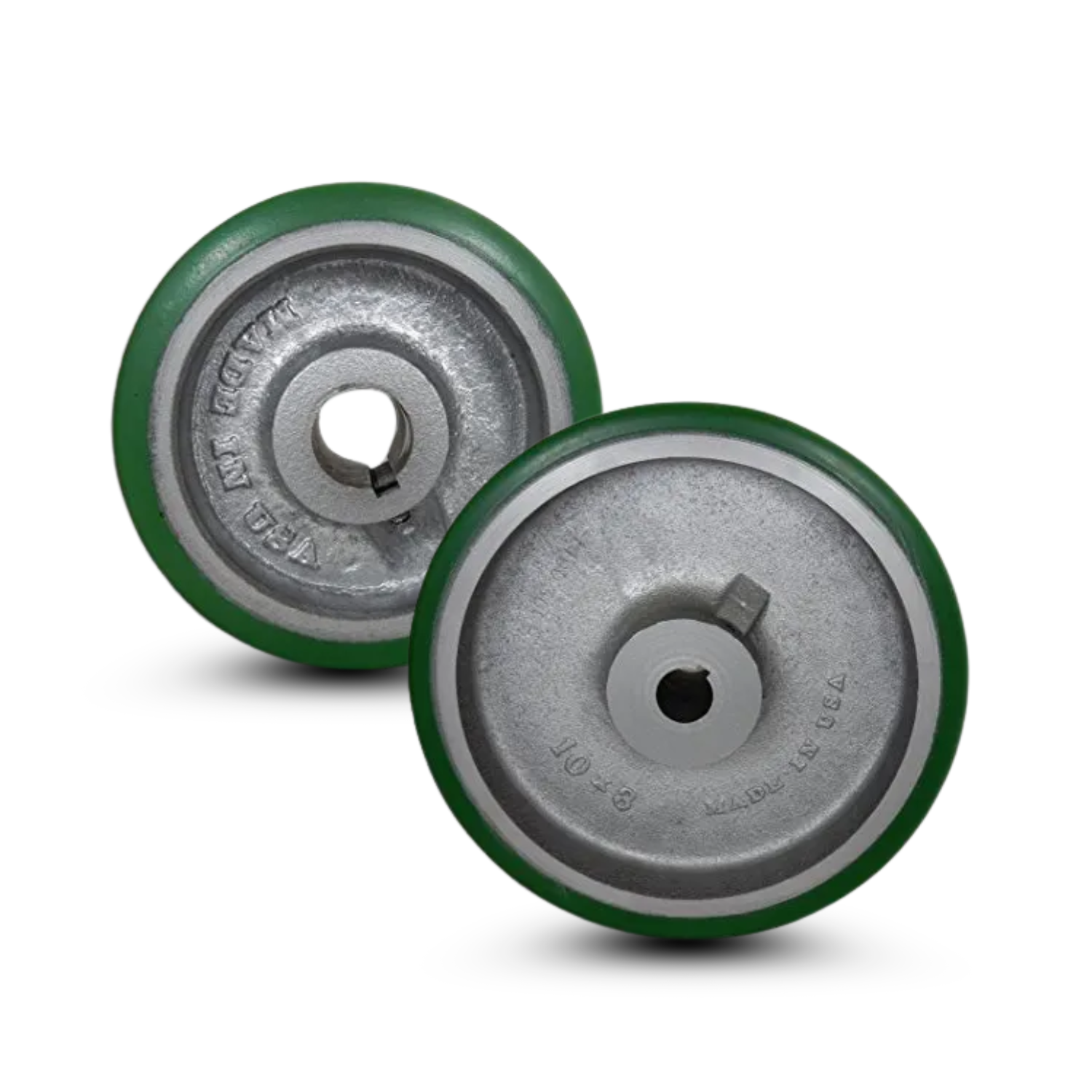

Keyed Drive Wheels

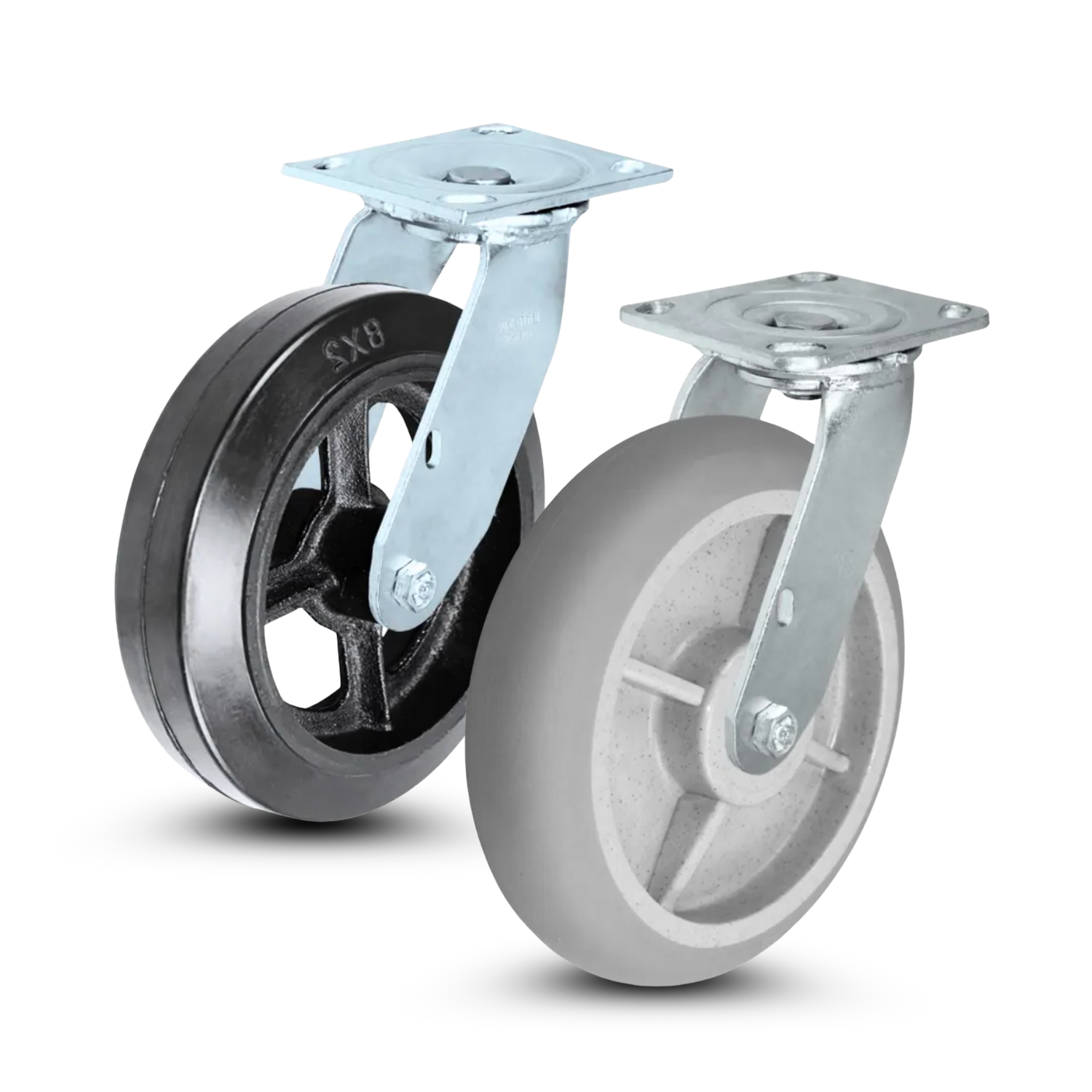

Drywall Cart Casters
Skid Wheels & Casters for RVs

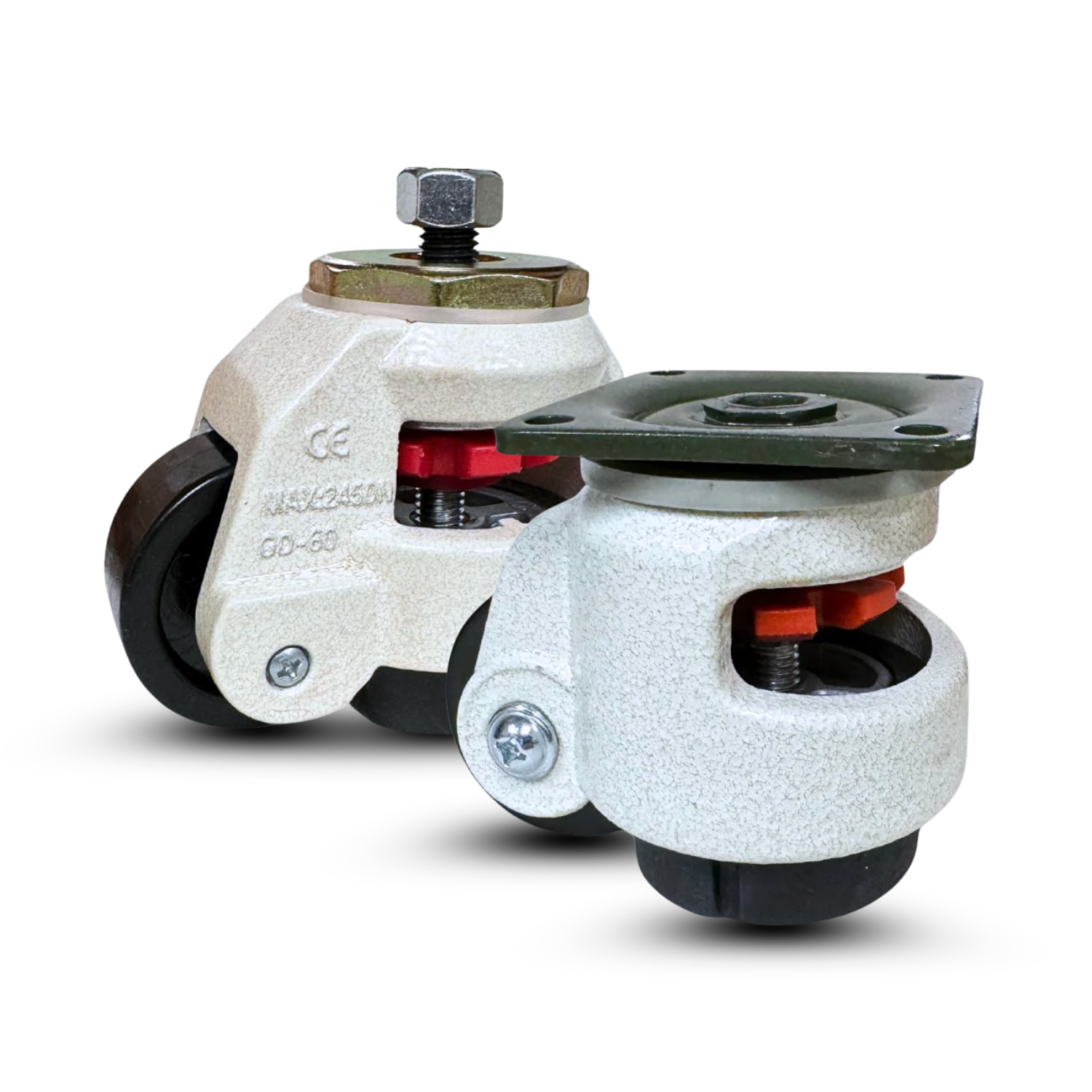

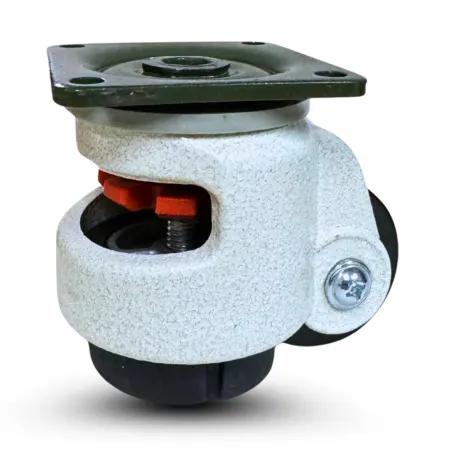

Leveling Casters
Shopping Cart Wheels & Casters

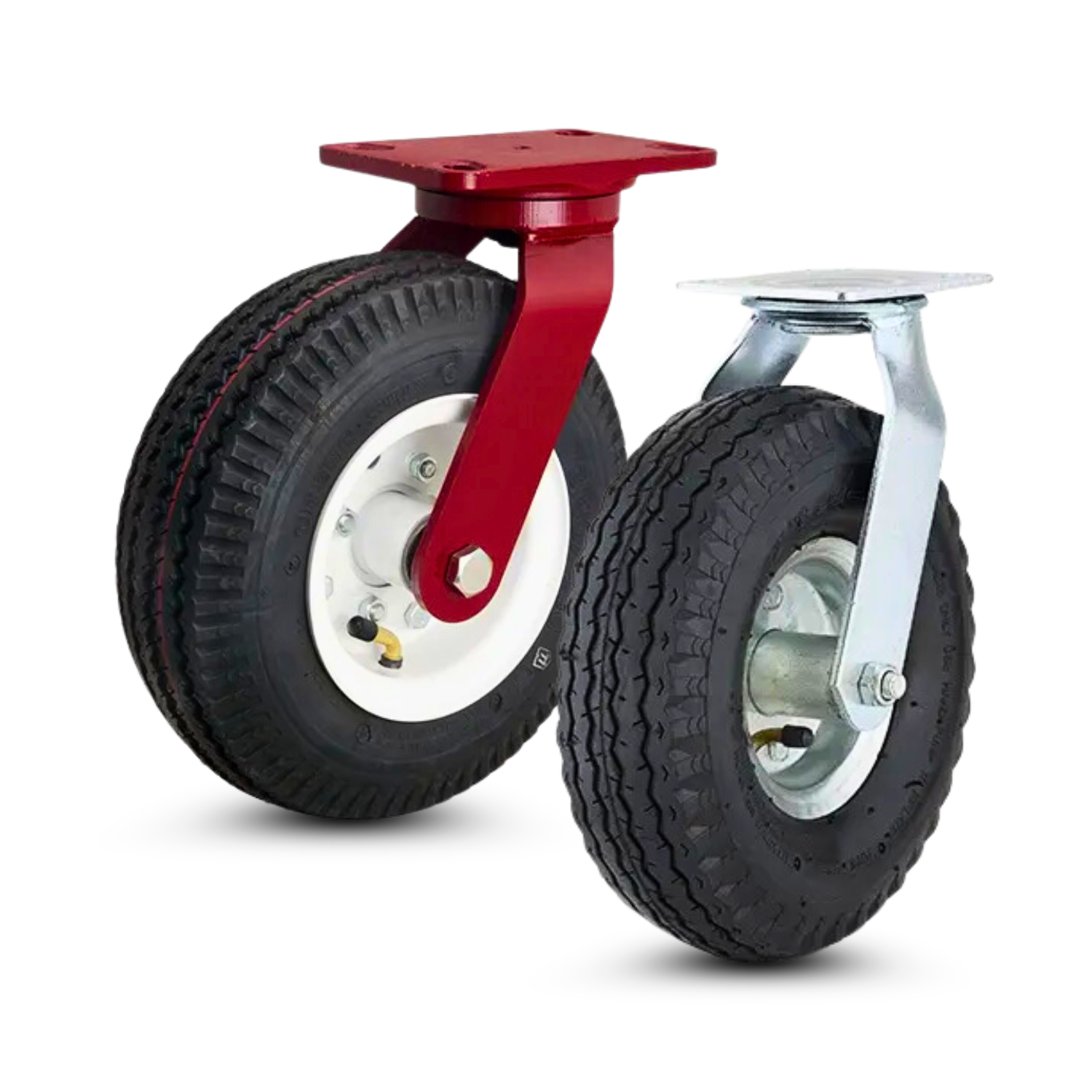

Band Equipment Casters & Wheels

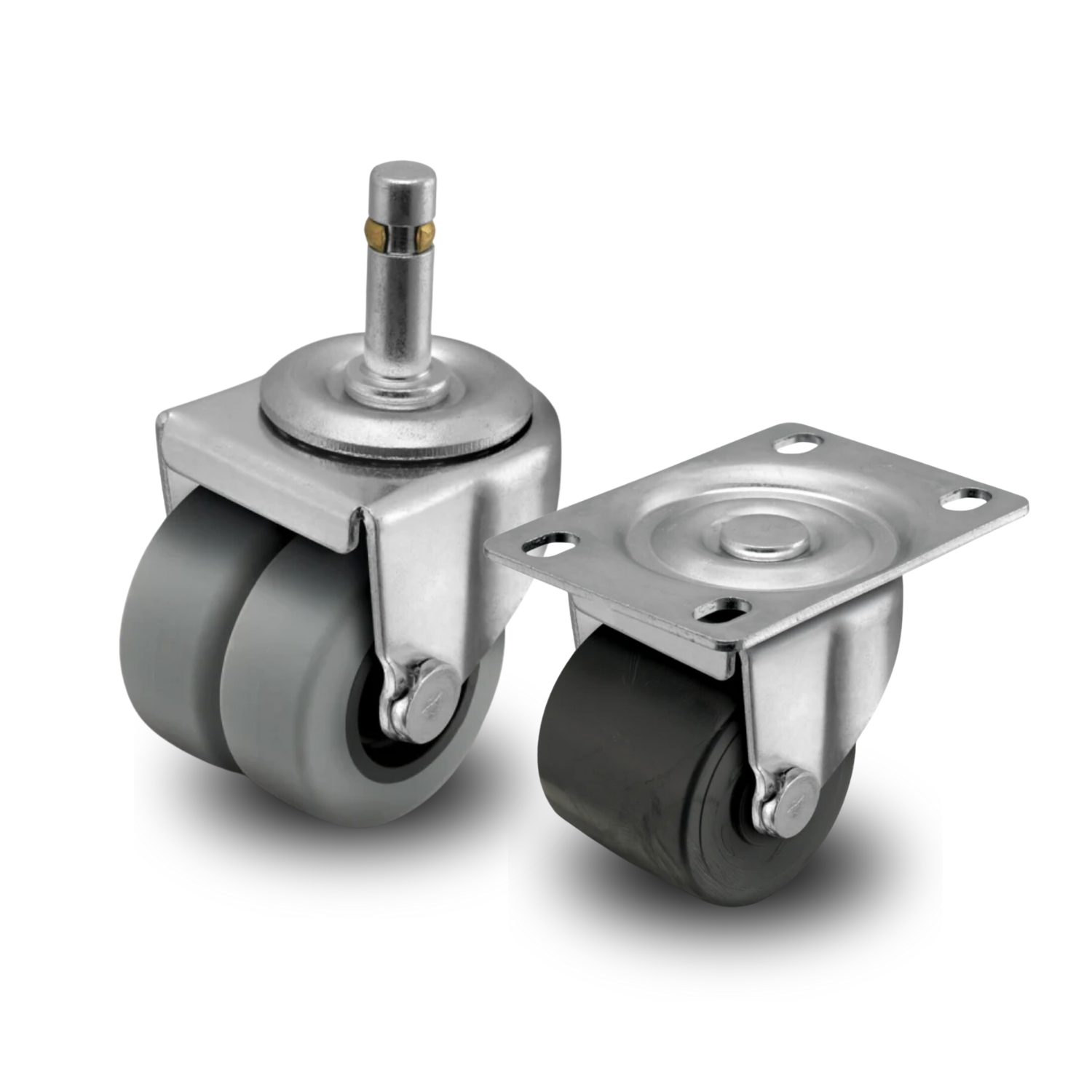

Low Profile Casters

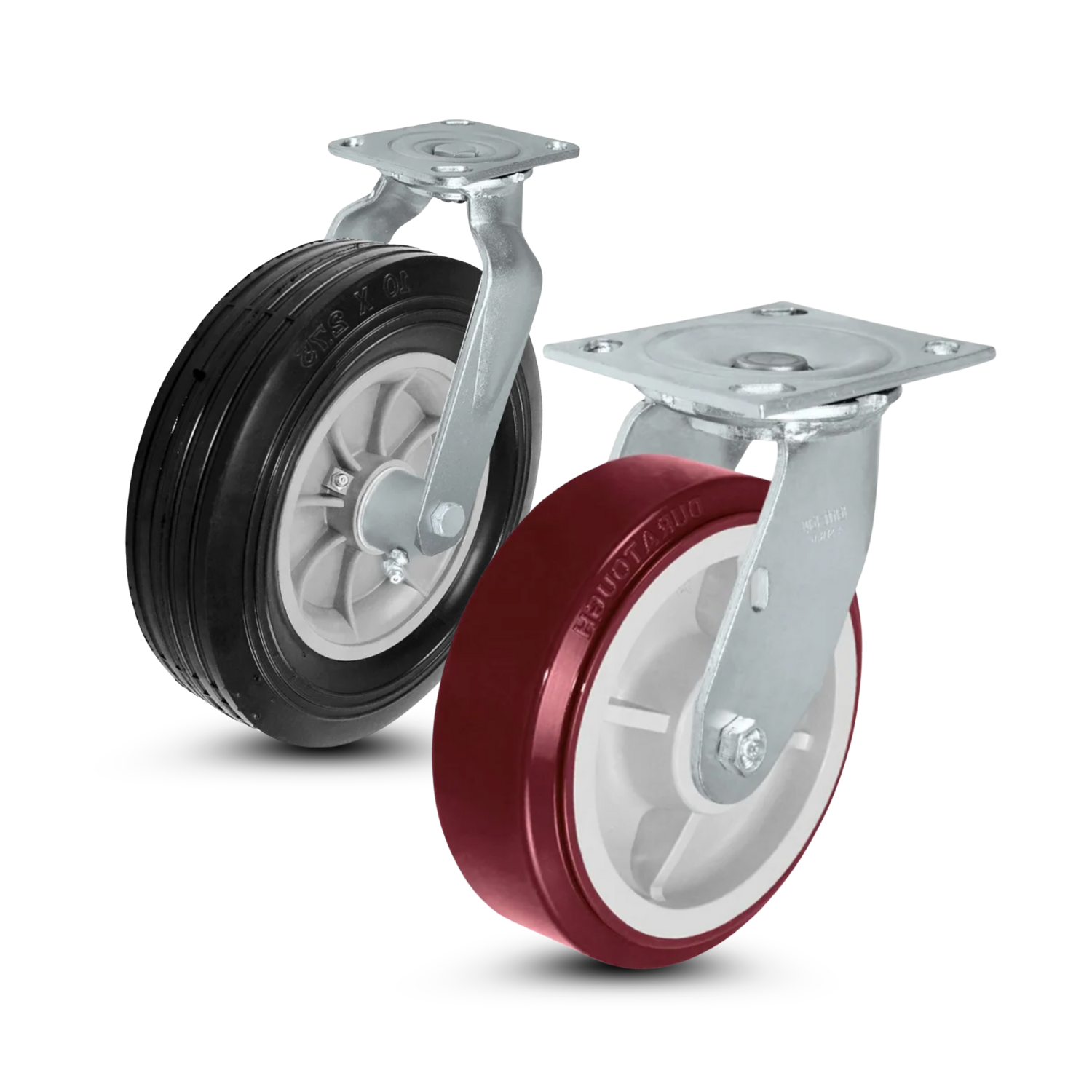

Cart Wheels & Casters

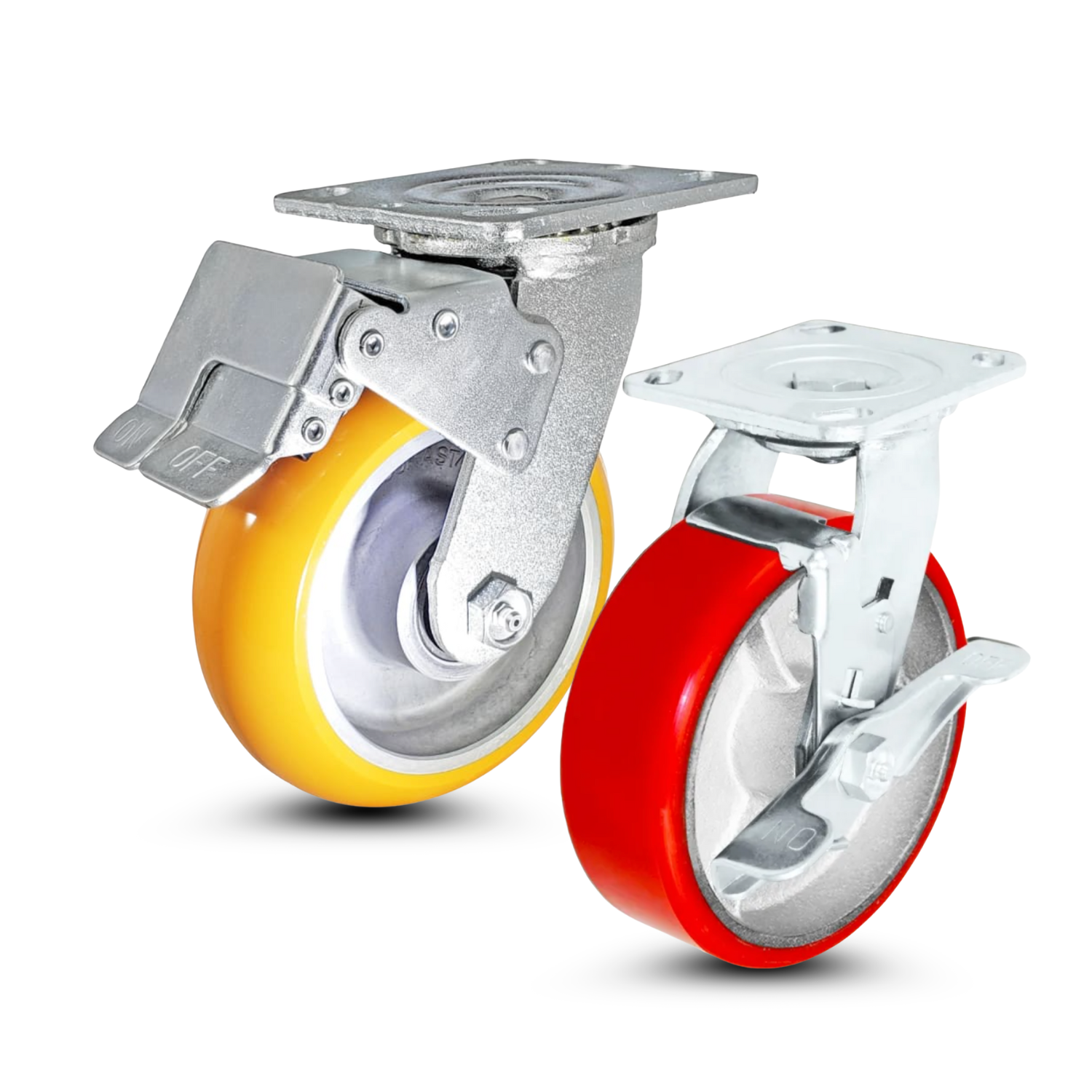

Toolbox Caster Sets

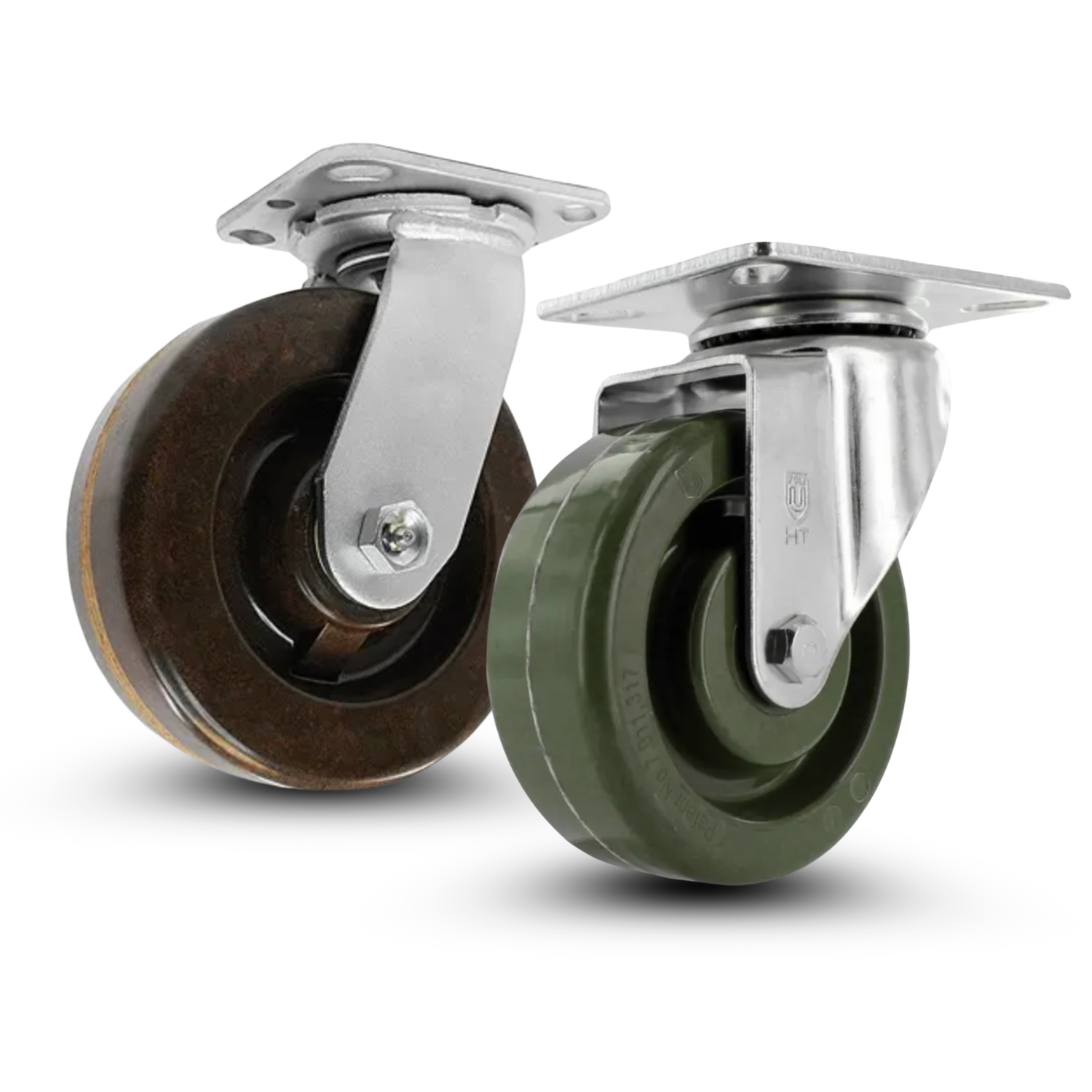

Bakery Oven Rack Casters

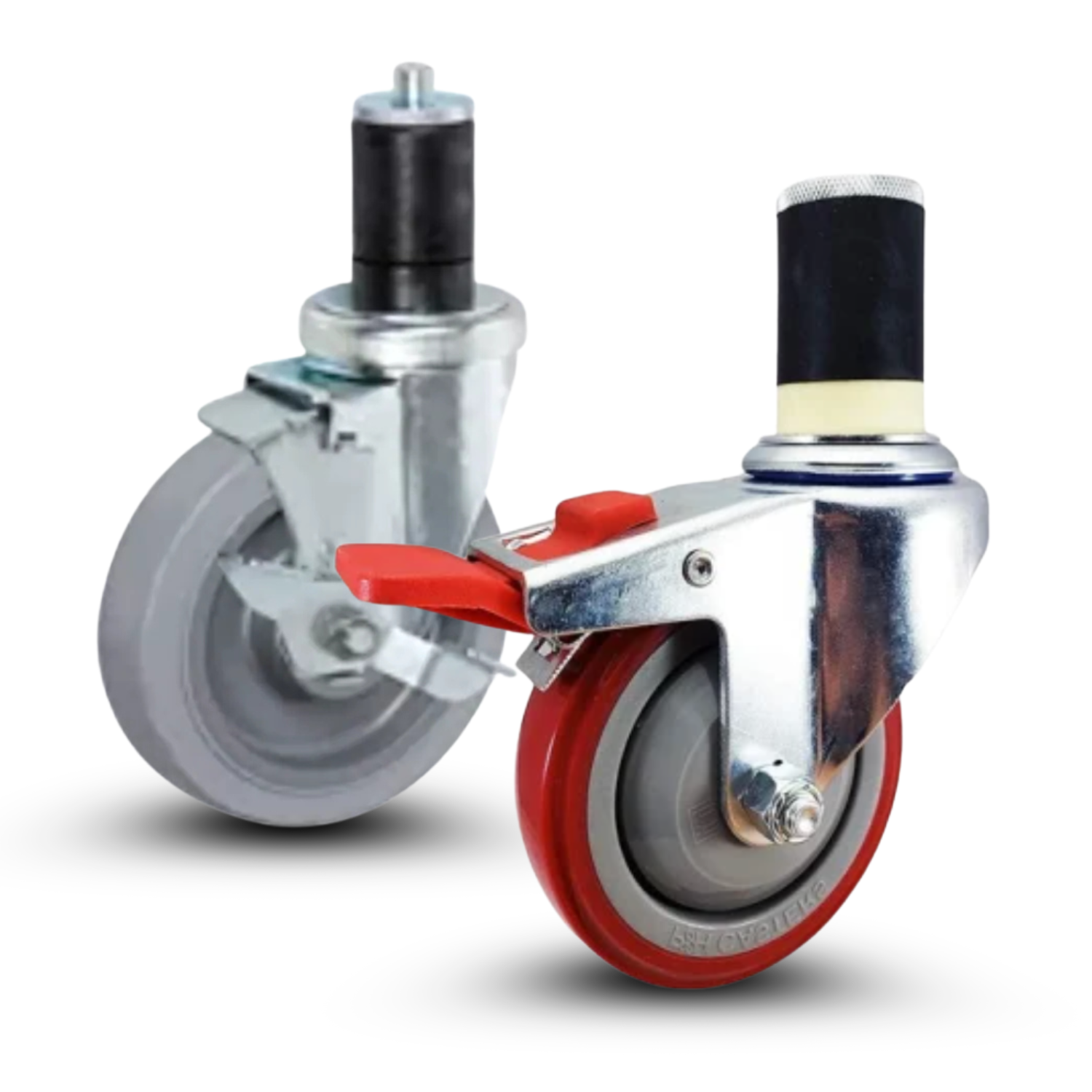

Kitchen Prep Table Caster Sets

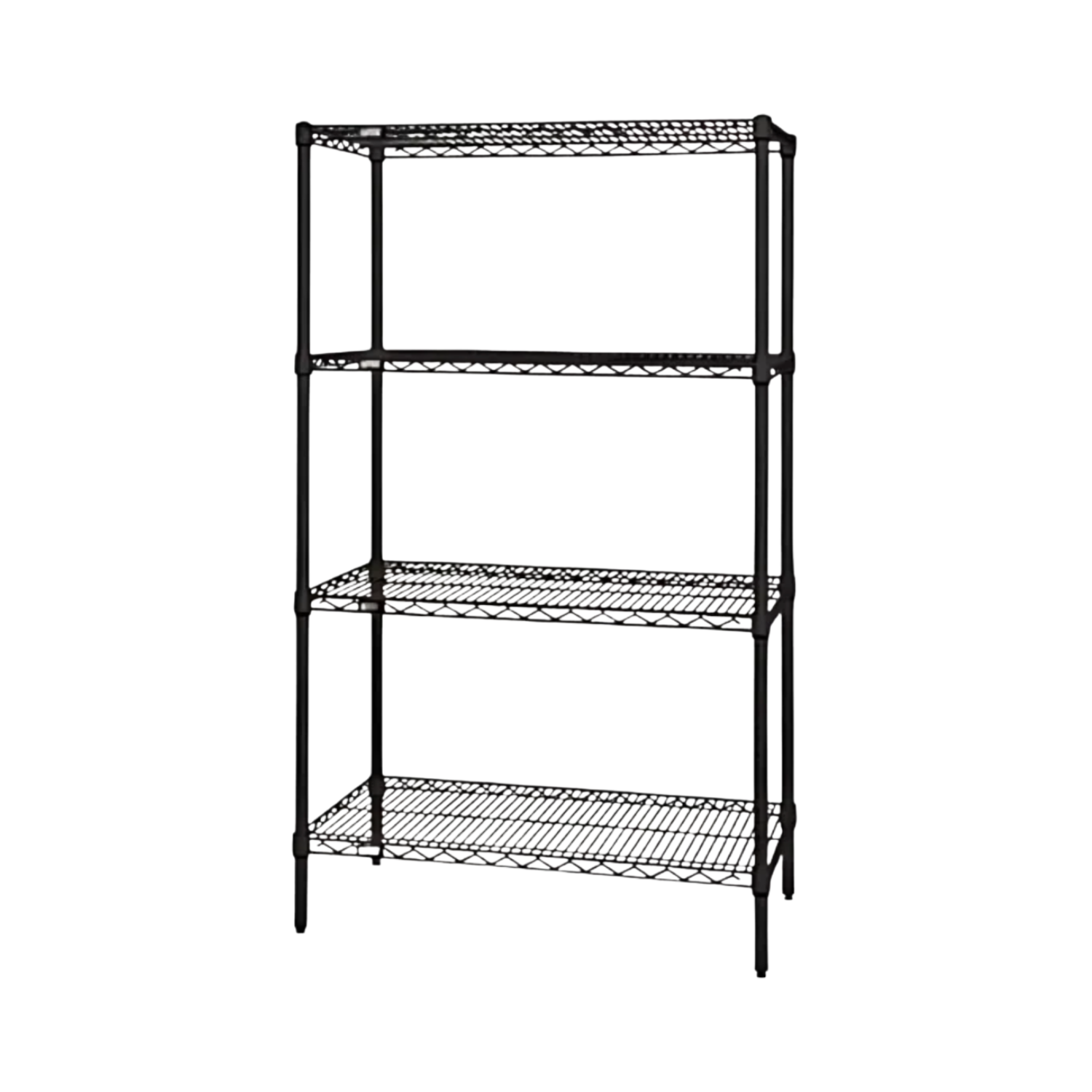

Wire Shelving Casters
Silent Glide Casters
![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-313-top-plate-drawing_100x.png?v=1792277785)
Brand: Albion Casters
SKU: 16AX05228ST
Size: 5"x2"
Type: USA-Rig Top Total Lock Caster
Material: MAX Efficiency Maroon Wheel
Load Capacity: 1000 lb
Mount Height: 6.5 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

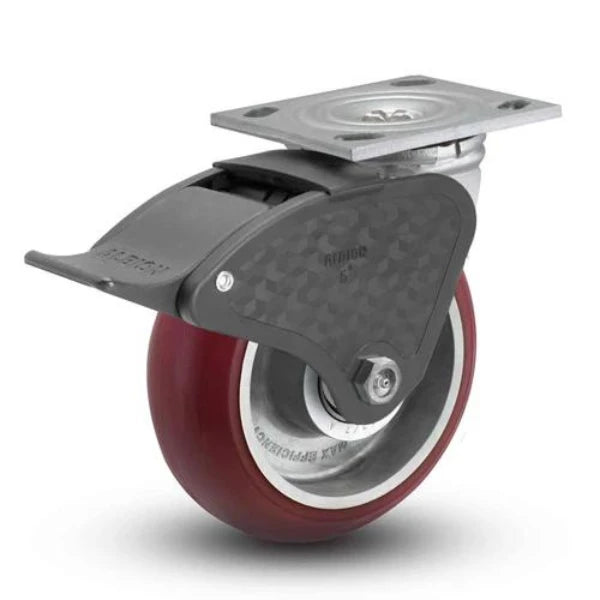

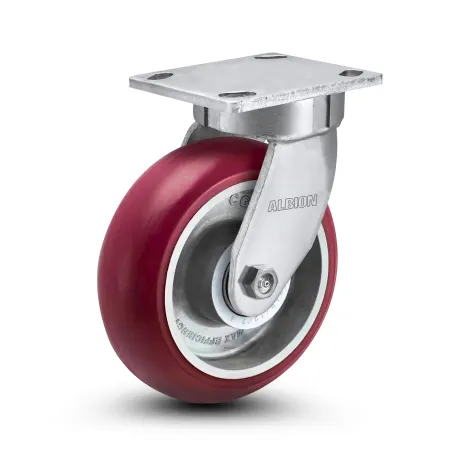

The Albion Casters 5" x 2" Floor Protective Caster is designed with a MAX Efficiency Maroon Wheel for exceptional performance and durability. Manufactured in the USA, this caster offers an impressive 1000 lb load capacity and features a 6.5" mount height for versatile applications. The 4" x 4-1/2" top plate provides a secure attachment, while the total lock mechanism ensures enhanced stability and safety. Ideal for high-demand environments, this caster is engineered to safeguard your floors and withstand rigorous use, making it a reliable choice for heavy-duty tasks.
Our dedicated team of Caster Experts is available Monday through Friday, 8 am - 5 pm, to answer your questions and help you choose the perfect caster for your needs. Contact us for personalized assistance and support.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" Floor Protective Caster is designed to deliver outstanding performance and durability in demanding environments. Engineered with a MAX Efficiency Maroon Wheel and a USA-Rig Top Total Lock mechanism, this caster ensures high stability and superior floor protection.
The caster is equipped with a 4" x 4-1/2" top plate for secure mounting, and its 1000 lb load capacity makes it ideal for heavy-duty applications. The 6.5 inch mounting height provides flexibility in equipment setup, while the precision ball bearings offer smooth and reliable operation.
Built to withstand a wide range of conditions, the caster operates efficiently within an operating temperature range of -40°F to +180°F. The Zinc Plated finish enhances corrosion resistance, ensuring long-lasting durability.
The Albion Casters 5" x 2" Floor Protective Caster stands out due to its high-quality construction and advanced features. Its MAX Efficiency Maroon Wheel and robust USA-Rig Top Total Lock mechanism are designed for exceptional performance and reliability.
Whether you're dealing with heavy machinery or delicate equipment, this caster provides the right balance of load capacity, maneuverability, and floor protection. Its total lock brake feature ensures that your equipment remains stationary when needed, reducing the risk of accidental movement.
Choose Albion Casters for a solution that combines durability, efficiency, and ease of use. Our commitment to quality and performance is evident in every product, making it the ideal choice for your heavy-duty caster needs.
Our dedicated team of Caster Experts is here to assist you with any questions or concerns you may have. Available Monday through Friday, 8 am - 5 pm, we ensure you get the best support to find the perfect caster for your needs.
This Albion 16AX05228ST 5" x 2" Maroon Total Lock Caster – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

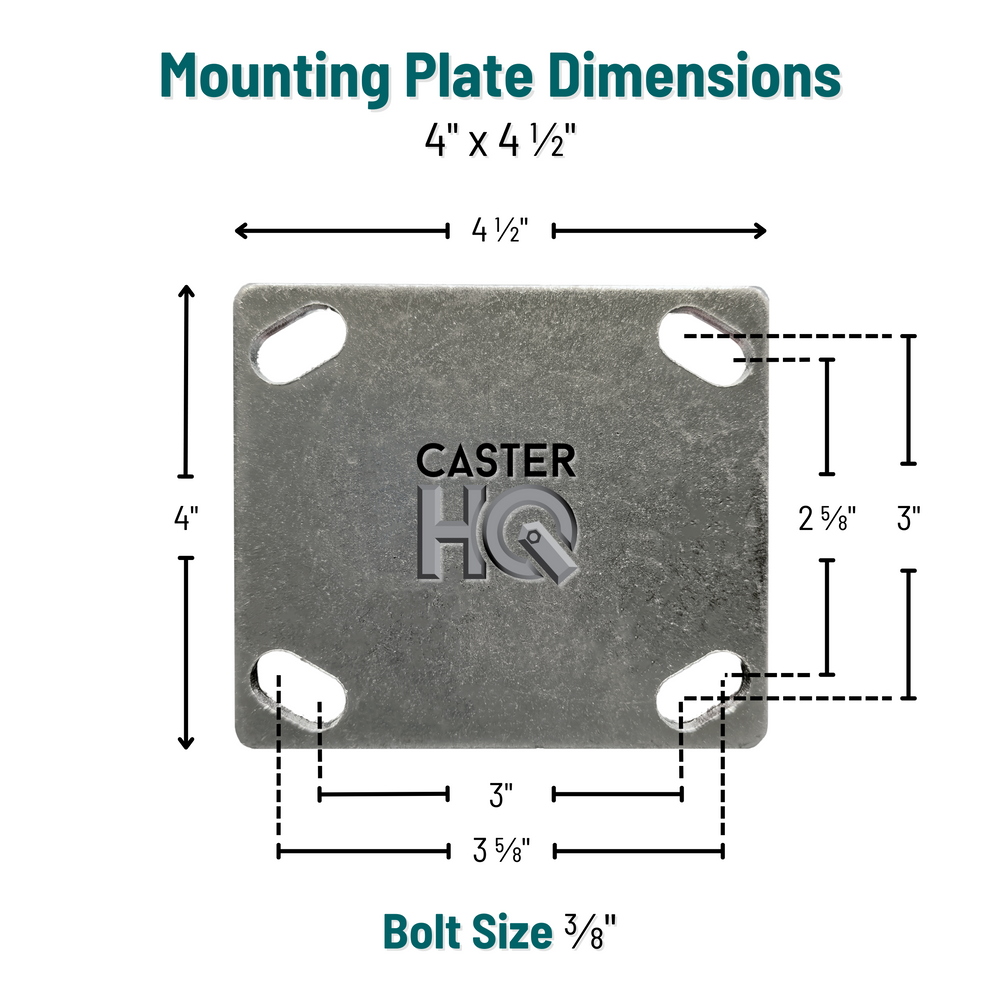

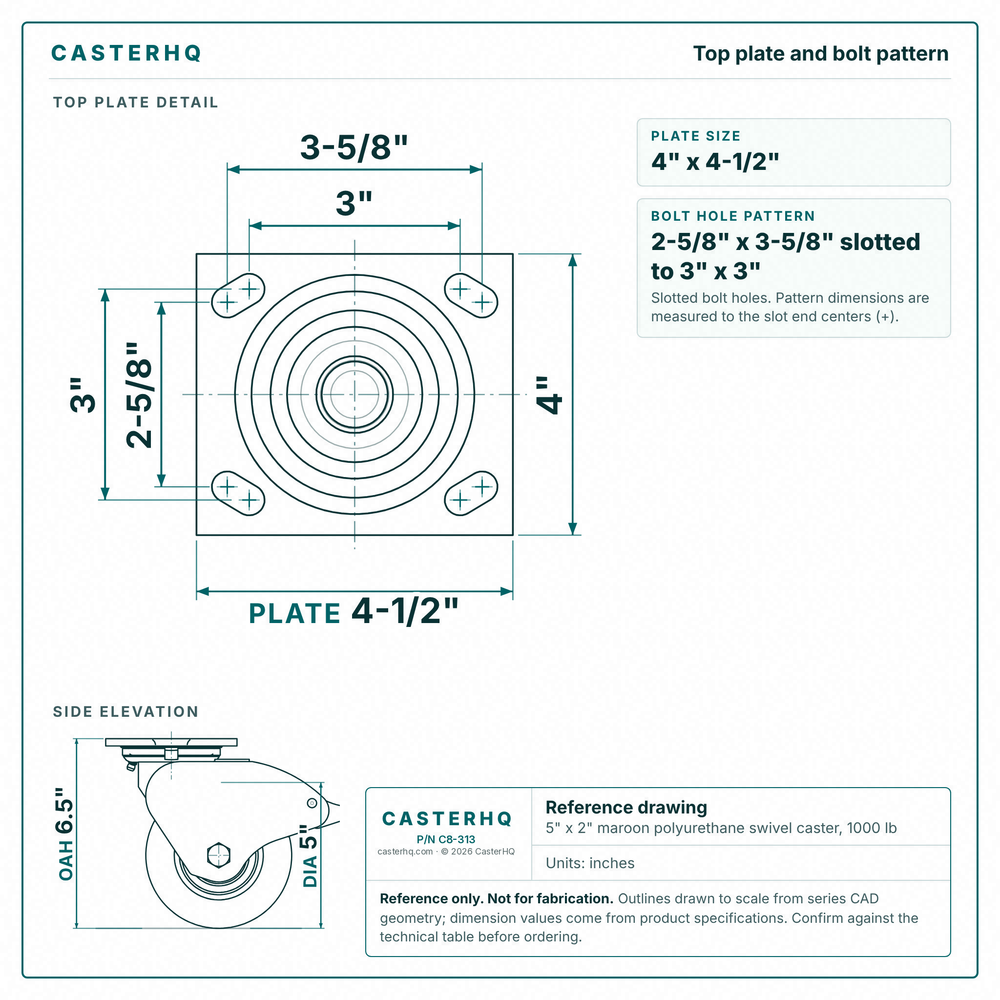

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$134.00
| Identification | |
|---|---|
| Part Number / SKU | 16AX05228ST |
| Product Series | Albion 44 Series |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6.5" |
| Brake | Total Lock Brake (locks wheel and swivel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 7" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-5/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 85 Shore A |
| Wheel Color | Maroon Tread on Aluminum Core |
| Bearing Type | Precision Ball Bearing |
| Axle Diameter | 1/2" |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -40°F to 180°F |
| Warranty | 3 Years |

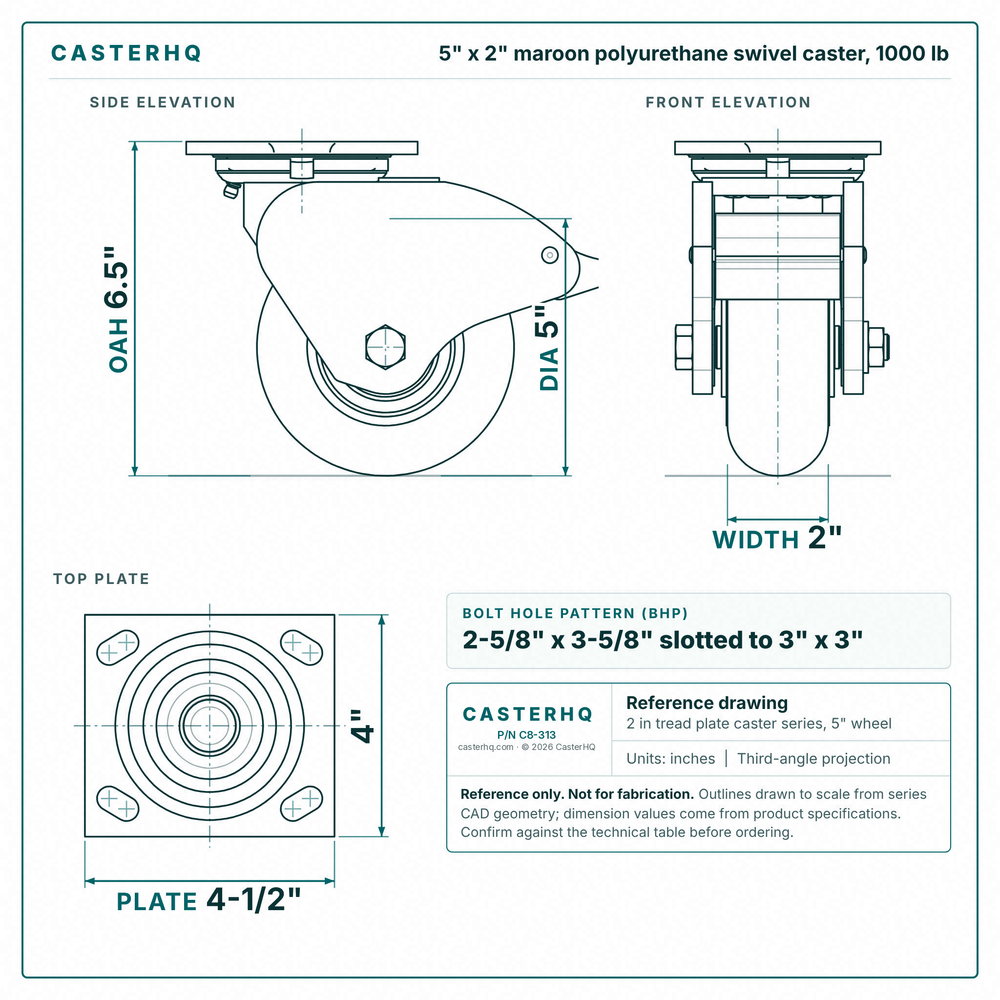

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → | |
| 1000 lbs | 5" × 2"Polyurethane | — | 6.5" | $134.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | 6-1/2" | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Semi-Steel | Rigid | 6-1/2" | $31.00 | View → |
