Brand: Albion Casters
SKU: 18AN05228S
Size: 5"x2"
Type: Maintenance-Free Swivel Caster
Material: MAX Efficiency Orange Wheel
Load Capacity: 1000 lb
Mount Height: 6.5 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

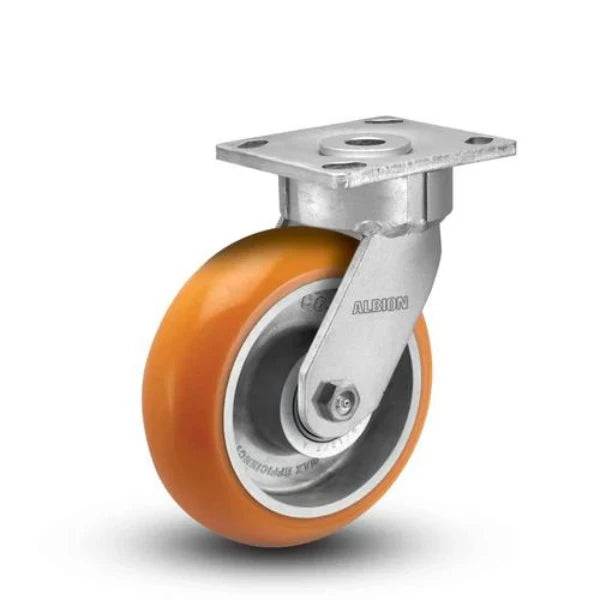

The Albion Casters 5" x 2" Floor Protective Caster with MAX Efficiency Orange Wheel offers exceptional performance and durability, crafted in the USA. This maintenance-free swivel caster is engineered for demanding applications with a 1000 lb load capacity and a 6.5" mount height. The 4" x 4-1/2" top plate ensures a secure attachment to various equipment, while the swivel design provides excellent maneuverability. Perfect for heavy-duty environments, this caster combines high efficiency with reliable floor protection.
Our dedicated Caster Experts are available Monday through Friday, 8 am - 5 pm to assist with any inquiries and help you select the ideal caster for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" Maintenance-Free Swivel Caster with MAX Efficiency Orange Wheel is designed to deliver exceptional performance and durability for a variety of demanding applications. This caster combines advanced engineering with high-quality materials to offer a reliable solution for heavy-duty use while ensuring ease of maintenance and long-lasting operation.
This caster is perfect for use in a variety of industrial and commercial settings, including warehouses, factories, and equipment requiring reliable mobility. Its robust design and high load capacity make it an excellent choice for handling heavy loads and ensuring smooth movement across different surfaces.
Albion Casters is known for its commitment to quality and innovation. The 5" x 2" Maintenance-Free Swivel Caster exemplifies our dedication to providing high-performance solutions that meet the needs of demanding environments. With advanced features, superior materials, and rigorous testing, you can trust Albion Casters to deliver exceptional value and reliability.
This Albion 18AN05228S 5" x 2" Orange Swivel Caster – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

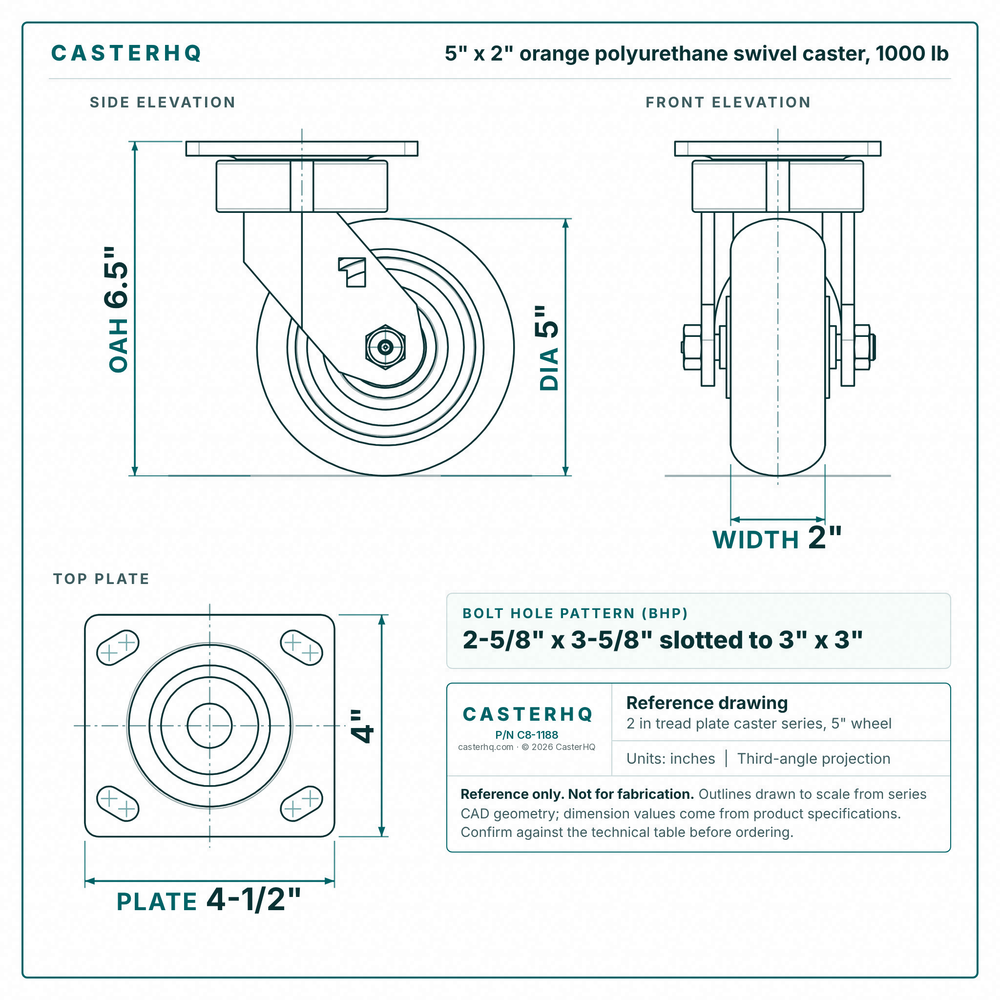

The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$96.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
5" x 2" Phenolic Rigid Caster – 1000 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 1000 lbs · Direct fit
$20
View all 5′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 500 lbsLighter duty | 5" × 2"Gray Rubber | Rigid | 6-1/2" | $27.00 | View → | |
| 750 lbsLighter duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
| 1000 lbs | 5" × 2"Polyurethane | Swivel | 6.5" | $96.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | — | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Cast Iron | Rigid | 6-1/2" | $31.00 | View → |
