Brand: Albion Casters
SKU: 16XI05229R
Size: 5"x2"
Type: USA-Made Rigid Caster
Material: Ergonomic Solid Polyurethane Wheel
Load Capacity: 1000 lb
Mount Height: 6.5 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

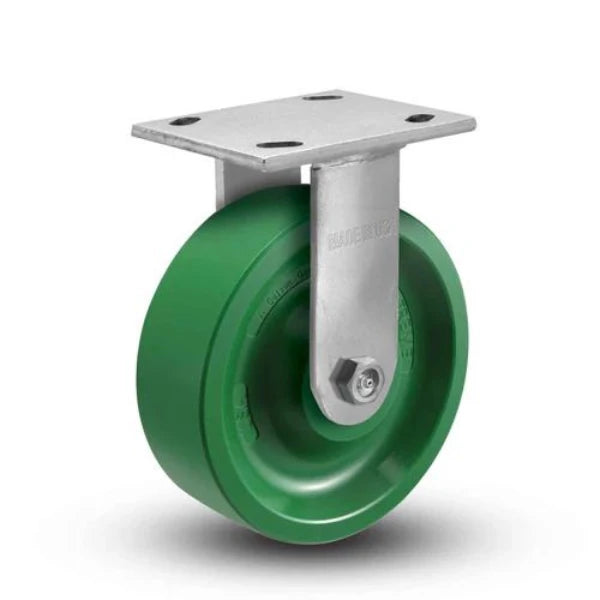

The Albion Casters 5" x 2" Floor Protective Caster is designed with an Ergonomic Solid Polyurethane Wheel, ensuring smooth, quiet movement and exceptional floor protection. Manufactured in the USA, this caster features a robust 1000 lb load capacity and a 6.5" mount height. Its 4" x 4-1/2" top plate allows for a secure fit on a variety of equipment, while the rigid design provides stability and durability. Ideal for high-traffic environments and heavy-duty applications, this caster offers reliable performance and long-lasting protection for your floors.
Our expert team is available Monday through Friday, 8 am - 5 pm to provide assistance and ensure you find the perfect caster for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" Floor Protective Rigid Caster combines exceptional durability with advanced design for superior performance in demanding environments. Crafted with precision, this caster is part of the 44 Series - Medium/Heavy range and is designed to handle heavy loads up to 1000 lb. Its ergonomic X-treme Solid Polyurethane Wheel ensures smooth operation and excellent floor protection, making it an ideal choice for various industrial and commercial applications.
The Albion Casters 5" x 2" Floor Protective Rigid Caster is engineered to provide reliable performance in challenging conditions. Whether used in industrial settings or commercial spaces, this caster ensures smooth mobility and long-term durability. Its robust construction and advanced wheel technology make it a top choice for applications requiring high load capacities and reliable floor protection.
This Albion 16XI05229R 5" x 2" Polyurethane Rigid Ergonomic Caster – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

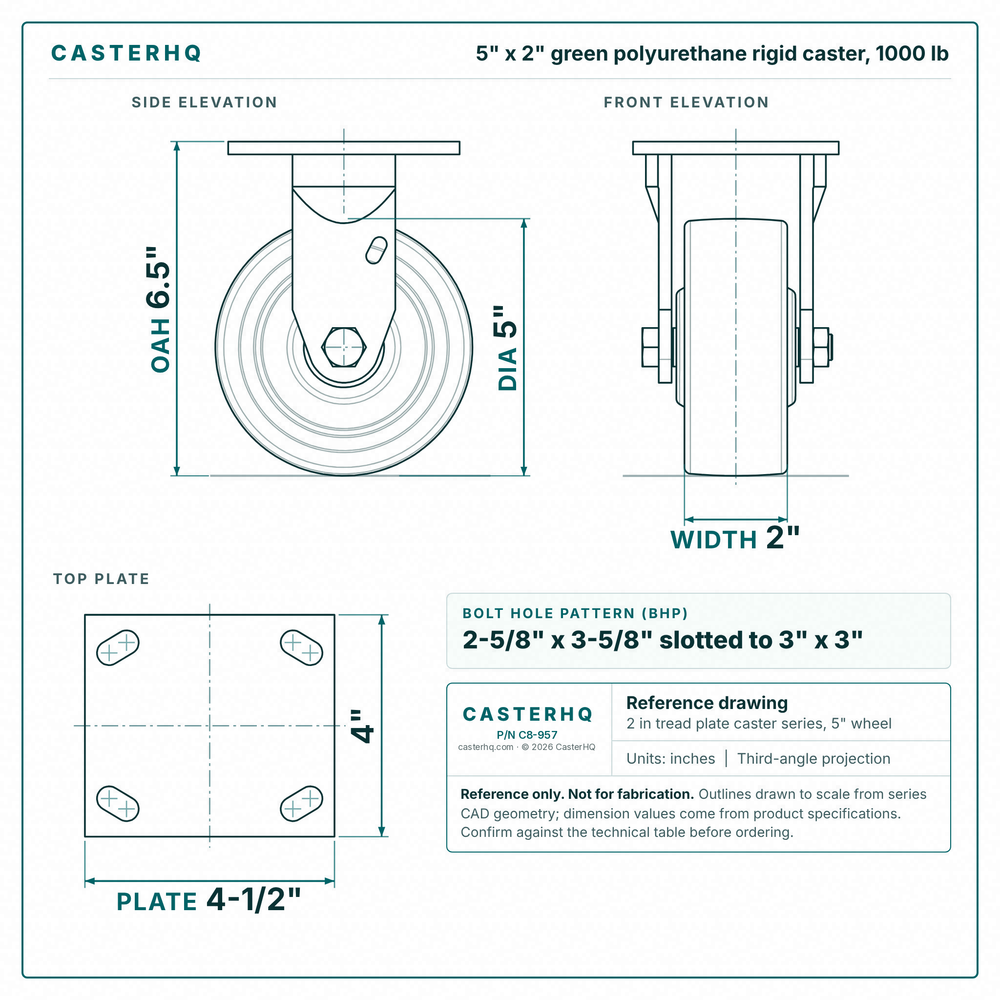

The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$53.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Solid Polyurethane |
| Frame Material | Zinc Plated Steel |
