PRODUCT CODE: 16AX05228SFBA
| Part Number: | 44XMB52S-TB |
| SKU: | 16AX05228SFBA |
| Series: | 44 Series - Medium/Heavy (to 1250 lb/ea) |
| Raceway Type: | 3/4" Kingpin Hardened Dual Ball Bearing Raceway |
| Brake: | FBA Face Brake (FBA) |
| Load Capacity: | 1000 lb |
| Mounting Height: | 6.5 in |
| Wheel Diameter: | 5 in |
| Wheel Tread Width: | 2 in |
| Wheel Description: | AX - Round Polyurethane (Aluminum Core) |
| Wheel Color: | Maroon Tread on Aluminum Core |
| Wheel Bearing: | Precision Ball |
| Wheel Profile: | Radius Tread |
| Wheel Hardness: | 85 Shore A |
| Wheel Thread Guards: | None |
| Fastening: | 4" x 4-1/2" top plate |
| Bolt Hole Pattern: | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Plate Bolt Size Recommended: | 3/8" |
| Swivel Radius: | 4.13 in |
| Swivel Lead: | 1.63 in |
| Finish: | Zinc Plated |
| Axle Size: | 1/2" diameter |
| Operating Temperature Range: | -40°F to +180°F |
| Mfg: | 16AX05228SFBA |
| Warranty: | 3 year |
| Conformity: | RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability |
Brand: Albion Casters
SKU: 16AX05228SFBA
Size: 5" x 2"
Type: Side Locking Caster
Material: MAX-Efficiency Maroon Wheel
Load Capacity: 1000 lb
Mount Height: 6.5 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

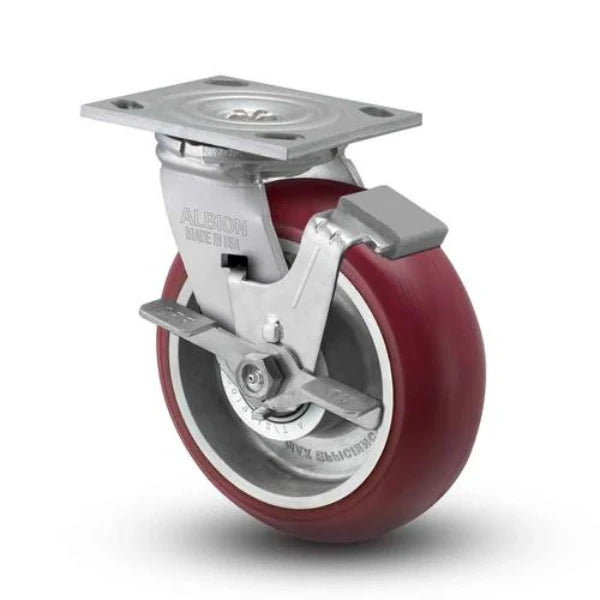

The Albion Casters 5" x 2" Floor-Protective Side Locking Caster, featuring a MAX-Efficiency Maroon Wheel, is meticulously engineered in the USA to deliver exceptional performance and floor protection. Designed for industrial use, this caster supports a load capacity of up to 1000 lbs, ensuring reliability in demanding environments. The 6.5" mount height and 4" x 4-1/2" top plate offer a secure fit, making it ideal for various equipment. Its floor-protective features and efficient design provide a balance of durability and functionality, making it an excellent choice for professionals seeking high-performance casters.
Our knowledgeable Caster Experts are available Monday through Friday, 8 am - 5 pm, to assist with any inquiries and help you find the optimal solution for your needs.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
The Albion Casters 5" x 2" Floor-Protective Side Locking Caster with MAX-Efficiency Maroon Wheel is a premium choice for industrial applications where durability and performance are crucial. Crafted with precision in the USA, this caster combines advanced materials and engineering to deliver superior load-bearing capacity and floor protection.
Ideal for heavy-duty use, this caster supports a substantial load capacity of 1000 lbs while ensuring smooth operation and reliable performance in demanding environments. The innovative design features a MAX-Efficiency Maroon Wheel, which enhances maneuverability and reduces operational effort, making it suitable for various types of equipment and setups.
For assistance with your purchase or product inquiries, our knowledgeable Caster Experts are available Monday through Friday, from 8 am to 5 pm. Contact us to ensure you find the right solution for your specific needs.
$109.00
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
