Brand: Albion Casters
SKU: 16XI05229ST
Size: 5" x 2"
Type: Top Total Lock Caster
Material: Ergonomic Polyurethane Wheel
Load Capacity: 1000 lb
Mount Height: 6.5 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

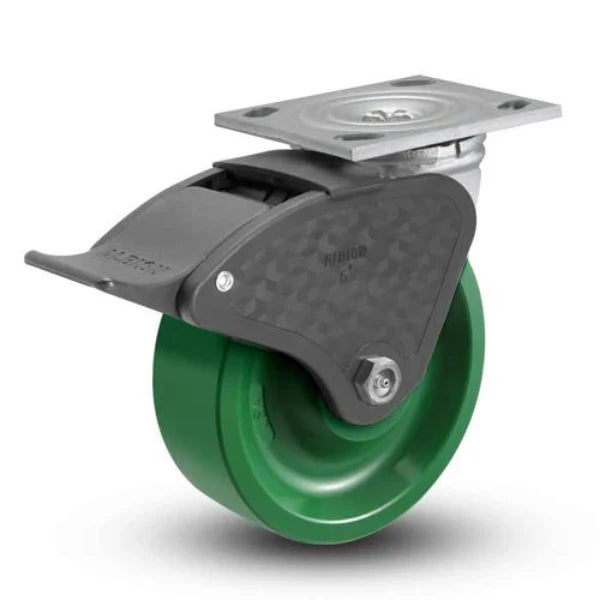

The Albion Casters 5" x 2" Floor-Protective Top Total Lock Caster with an Ergonomic Polyurethane Wheel is expertly crafted in the USA to deliver exceptional performance and floor protection. Designed to handle a load capacity of up to 1000 lbs, this caster is ideal for use in both industrial and commercial settings. The 6.5" mount height and 4" x 4-1/2" top plate ensure a stable and secure fit, making it a versatile solution for various applications. The total lock feature provides enhanced safety and control, while the floor-protective polyurethane wheel minimizes damage to surfaces. Choose Albion Casters for reliability and superior quality in every application.
Our knowledgeable Caster Experts are available Monday through Friday, 8 am - 5 pm, to answer your questions and help you find the perfect caster solution for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" Floor-Protective Top Total Lock Caster with an Ergonomic Polyurethane Wheel is engineered to deliver superior performance and durability. Made in the USA, this caster is designed for heavy-duty applications and provides exceptional floor protection. Ideal for both industrial and commercial use, it ensures smooth and quiet operation while maintaining a high load capacity.
The Albion Casters 5" x 2" Floor-Protective Top Total Lock Caster is a high-performance solution for environments that demand both floor protection and high load capacity. The caster's ergonomic polyurethane wheel provides exceptional floor safeguarding and smooth maneuverability, while the total lock brake ensures maximum stability. Its robust construction, made in the USA, adheres to strict quality standards, making it a reliable choice for various industrial and commercial applications.
With a temperature range of -40°F to +180°F, this caster is built to perform under extreme conditions, making it suitable for diverse environments. The caster's design features include a crowned tread profile and precision ball bearings, contributing to its longevity and reliable performance. The zinc-plated finish not only enhances its durability but also adds a touch of corrosion resistance, ensuring that the caster maintains its functionality and appearance over time.
This Albion 16XI05229ST 5" x 2" Polyurethane Total Lock Caster – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$81.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Solid Polyurethane |
| Frame Material | Zinc Plated Steel |
