Brand: Albion Casters
SKU: 16AN05228SFBA
Size: 5"x2"
Type: USA-Rig Side Locking Caster
Material: MAX Efficiency Orange Wheel
Load Capacity: 1000 lb
Mount Height: 6.5 inches
Fastening: 4" x 4-1/2" Side Plate
Origin: Made in the USA

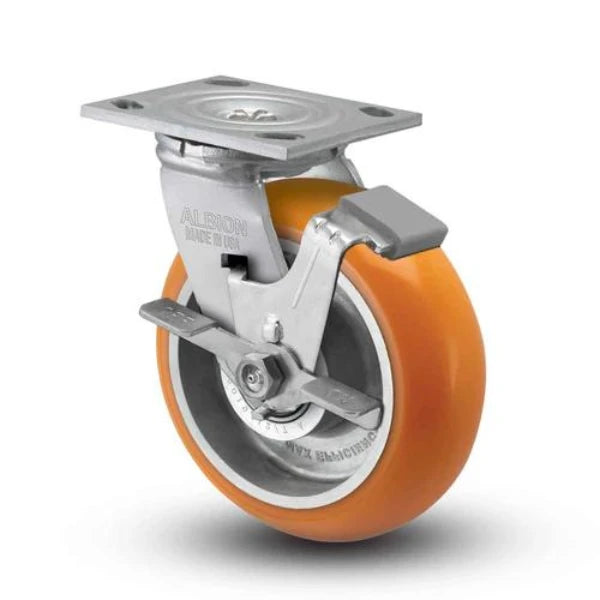

The Albion Casters 5" x 2" Floor Protective Caster with MAX Efficiency Orange Wheel is meticulously designed and manufactured in the USA to deliver exceptional durability and performance. This caster is ideal for settings that require superior efficiency and floor protection. With a robust 1000 lb load capacity and a 6.5" mount height, it ensures reliable support and stability. The 4" x 4-1/2" side plate provides a secure attachment to various equipment, while its side-locking feature enhances stability during use. Perfect for demanding environments, this caster is engineered to endure heavy-duty applications while safeguarding your floors.
Our expert team is available Monday through Friday, 8 am - 5 pm, to assist with any inquiries or support needs, ensuring you get the best caster for your specific requirements.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" Floor Protective Caster is designed to offer exceptional durability and performance, making it ideal for a range of applications. Featuring a MAX Efficiency Orange Wheel, this caster combines advanced engineering with high-quality materials to provide superior floor protection and smooth operation.
Our dedicated customer support team is available Monday through Friday, 8 am - 5 pm, to assist with any questions or concerns. We are committed to helping you find the perfect caster for your needs and ensuring your complete satisfaction with your purchase.
This Albion 16AN05228SFBA 5"x2" Orange Wheel Side Lock Caster – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

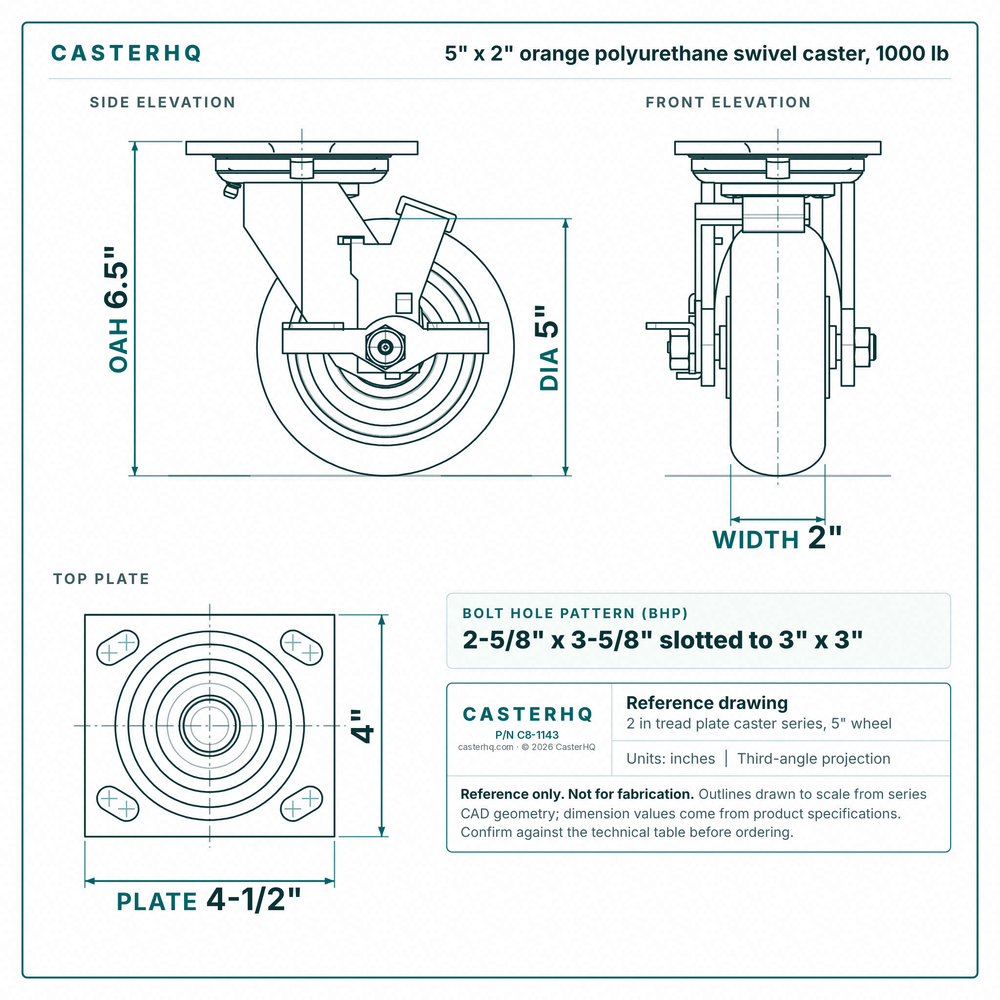

The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$109.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
