Technical Specifications

• Part Number: 44XMB52S
• SKU: 16AX05228S
• Series: 44 Series - Medium/Heavy (up to 1250 lb/ea)
• Raceway Type: 3/4" Kingpin Hardened Dual Ball Bearing Raceway
• Brake: None
• Load Capacity: 1000 lb
• Mounting Height: 6.5 inches
• Wheel Diameter: 5 inches
• Wheel Tread Width: 2 inches
• Wheel Description: AX - Round Polyurethane (Aluminum Core)
• Wheel Color: Maroon Tread on Aluminum Core
• Wheel Bearing: Precision Ball
• Wheel Profile: Radius Tread
• Wheel Hardness: 85 Shore A
• Wheel Thread Guards: None

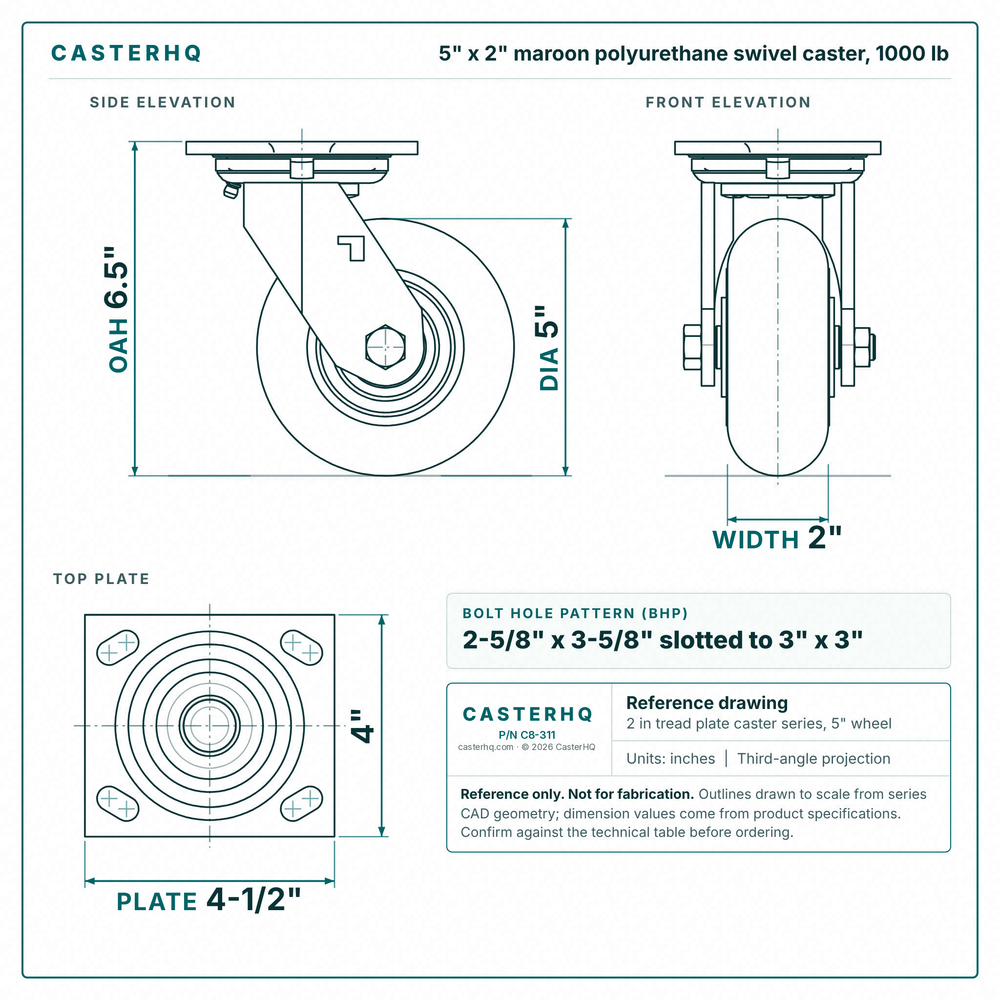

• Fastening: 4" x 4-1/2" top plate

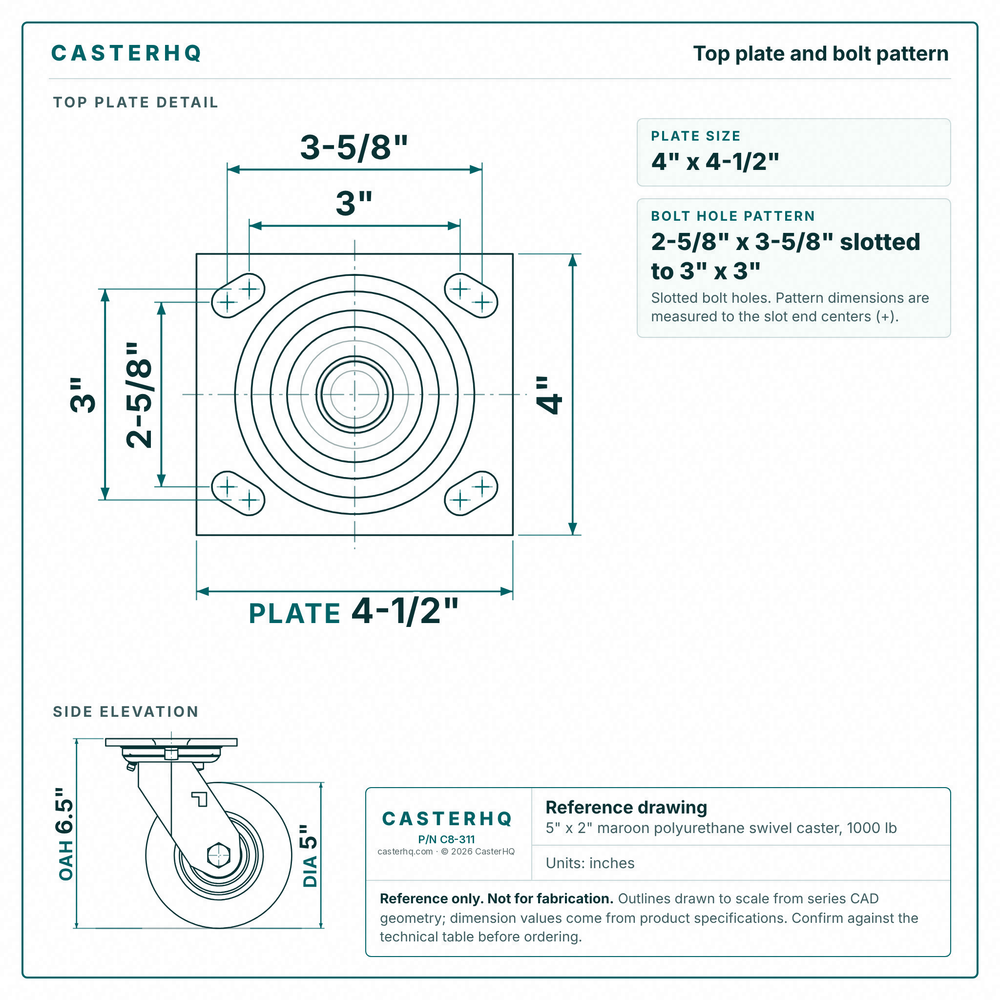

• Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
• Plate Bolt Size Recommended: 3/8"
• Swivel Radius: 4.13 inches
• Swivel Lead: 1.63 inches
• Finish: Zinc Plated
• Axle Size: 1/2" diameter
• Operating Temperature Range: -40°F to +180°F
• Manufacturer: 16AX05228S
• Warranty: 3 years
• Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

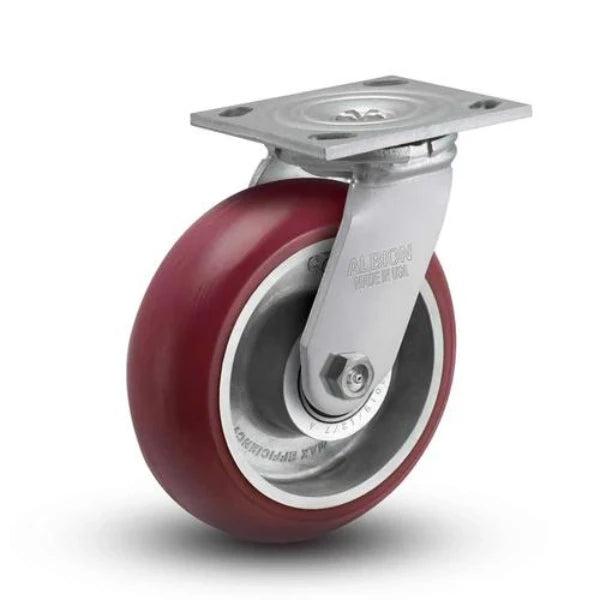

Albion Casters 5" x 2" Floor Protective - USA-Rig Swivel Caster with MAX Efficiency Maroon Wheel - 16AX05228S

Product Overview

Brand: Albion Casters

SKU: 16AX05228S

Size: 5"x2"

Type: USA-Rig Swivel Caster

Material: MAX Efficiency Maroon Wheel

Load Capacity: 1000 lb

Mount Height: 6.5 inches

Fastening: 4" x 4-1/2" Swivel Plate

Origin: Made in the USA

The Albion Casters 5" x 2" Floor Protective Caster with MAX Efficiency Maroon Wheel is a top choice for high-performance applications. Made in the USA, this caster combines durability with advanced efficiency. Designed for demanding environments, it features a 1000 lb load capacity and a 6.5" mount height. The 4" x 4-1/2" swivel plate ensures versatile movement and a secure attachment, while its swivel design provides enhanced maneuverability. Ideal for heavy-duty use, this caster is engineered to offer reliable performance and protect your floors from damage.

Dedicated Customer Support

Our expert team is available Monday through Friday, 8 am - 5 pm to assist with any questions or help you find the perfect caster for your needs.

Top 10 Features

• 1. High Load Capacity: Supports up to 1000 lbs, making it suitable for heavy-duty applications.
• 2. Optimal Mount Height: Features a 6.5" mount height for versatile use and easy installation.
• 3. Durable Material: Equipped with a MAX Efficiency Maroon Wheel for long-lasting performance and floor protection.
• 4. Swivel Design: The USA-Rig Swivel Caster allows for smooth, flexible movement in any direction.
• 5. Secure Fastening: Comes with a 4" x 4-1/2" swivel plate for a secure and stable attachment to equipment.
• 6. Floor Protection: Designed to minimize floor damage while providing reliable support.
• 7. Made in the USA: Crafted in the USA for quality assurance and durability.
• 8. Versatile Use: Ideal for a variety of heavy-duty applications including industrial and commercial environments.
• 9. Easy Maneuverability: The swivel feature enhances maneuverability, making it easy to navigate tight spaces.
• 10. Product Code: Identified with SKU 16AX05228S for easy reference and ordering.

• Flat-rate shipping by order size. Final shipping cost shown before payment.
• No post-checkout shipping adjustments or re-billing.
• Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Product Details

The Albion Casters 5" x 2" Floor Protective Swivel Caster is engineered for optimal performance and durability, making it an ideal choice for both industrial and commercial applications. This caster combines high load capacity with advanced design features to ensure reliable movement and floor protection.

Key Features

• High Load Capacity: With a robust 1000 lb load capacity, this caster is built to handle heavy-duty tasks with ease.
• Optimal Mount Height: The 6.5-inch mounting height provides versatile use and fits a wide range of equipment.
• Durable Construction: The MAX Efficiency Maroon Wheel with an aluminum core ensures long-lasting performance and superior floor protection.
• Swivel Design: The USA-Rig Swivel Caster allows for smooth, flexible movement and enhanced maneuverability.
• Precision Bearings: Features precision ball bearings for a smooth rolling experience.
• High Hardness: The wheel hardness of 85 Shore A provides optimal resilience and durability.
• Secure Fastening: Equipped with a 4" x 4-1/2" top plate for stable attachment and reliability.
• Swivel Radius: A swivel radius of 4.13 inches enhances maneuverability.
• Temperature Range: Operates efficiently in temperatures ranging from -40°F to +180°F.
• Warranty: Backed by a 3-year warranty for peace of mind and reliability.

Additional Information

The Albion Casters 5" x 2" Floor Protective Swivel Caster stands out in the market due to its superior build quality and versatility. Whether used in heavy-duty industrial settings or for specialized commercial applications, this caster delivers exceptional performance and reliability. The combination of a high load capacity, durable materials, and precise engineering ensures that this caster will meet your demanding needs while protecting your floors from damage.

Its zinc-plated finish provides resistance to corrosion, making it suitable for a range of environmental conditions. The caster's operational temperature range from -40°F to +180°F allows it to perform reliably in extreme temperatures. With a focus on user-friendly design and advanced engineering, this caster is an excellent choice for enhancing the mobility and functionality of your equipment.
