Brand: Albion Casters
SKU: 18AN05228SFBB
Size: 5" x 2"
Type: Swivel Caster with Face Brake
Material: MAX Efficiency Orange Wheel
Feature: Maintenance-Free, Integrated Face Brake
Load Capacity: 1000 lb
Mount Plate Size: 4" x 4.5"
Origin: Made in USA

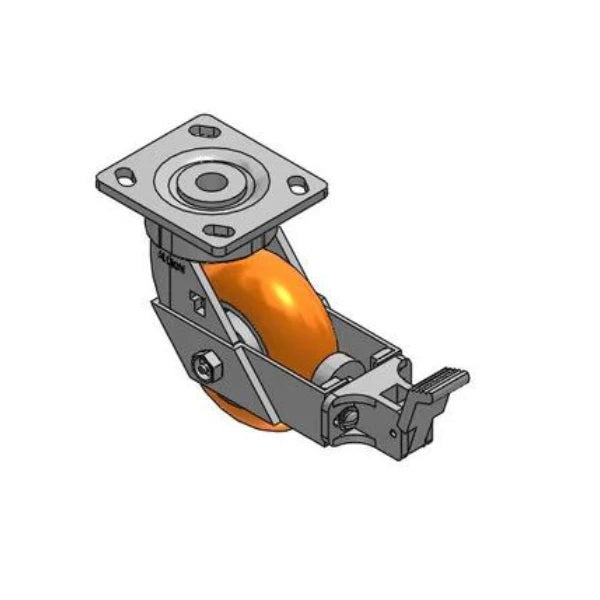

The Albion Casters 5" x 2" Maintenance-Free Swivel Caster with MAX Efficiency Orange Wheel and Face Brake is engineered for superior safety and versatility. This caster combines the reliability of maintenance-free operation with the added functionality of an integrated face brake, ideal for controlling movement and securing equipment. Designed for a variety of industrial and commercial applications, it supports a load capacity of 1000 lb and features a 4" x 4.5" mount plate for stable attachment. Its advanced wheel technology ensures smooth operation and long-lasting performance, making it a valuable addition to any workspace where efficiency and safety are priorities.
Our knowledgeable support team is available Monday through Friday, 8 am - 5 pm to assist with your inquiries and provide expert guidance on selecting the best caster solution for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" Maintenance-Free Swivel Caster with MAX Efficiency Orange Wheel is engineered to provide exceptional performance and reliability for a wide range of industrial and commercial applications. Designed with a large, sealed precision ball bearing raceway, this caster eliminates the need for routine maintenance, ensuring hassle-free operation and long-lasting durability.
The integrated FBB Face Brake enhances safety by securely locking the caster in place, making it ideal for environments where movement control is crucial. With a robust load capacity of 1000 lb, this caster is well-suited for handling heavy loads with ease.
This Albion 18AN05228SFBB 5" x 2" Orange Swivel Caster with Brake – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Face Contact Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

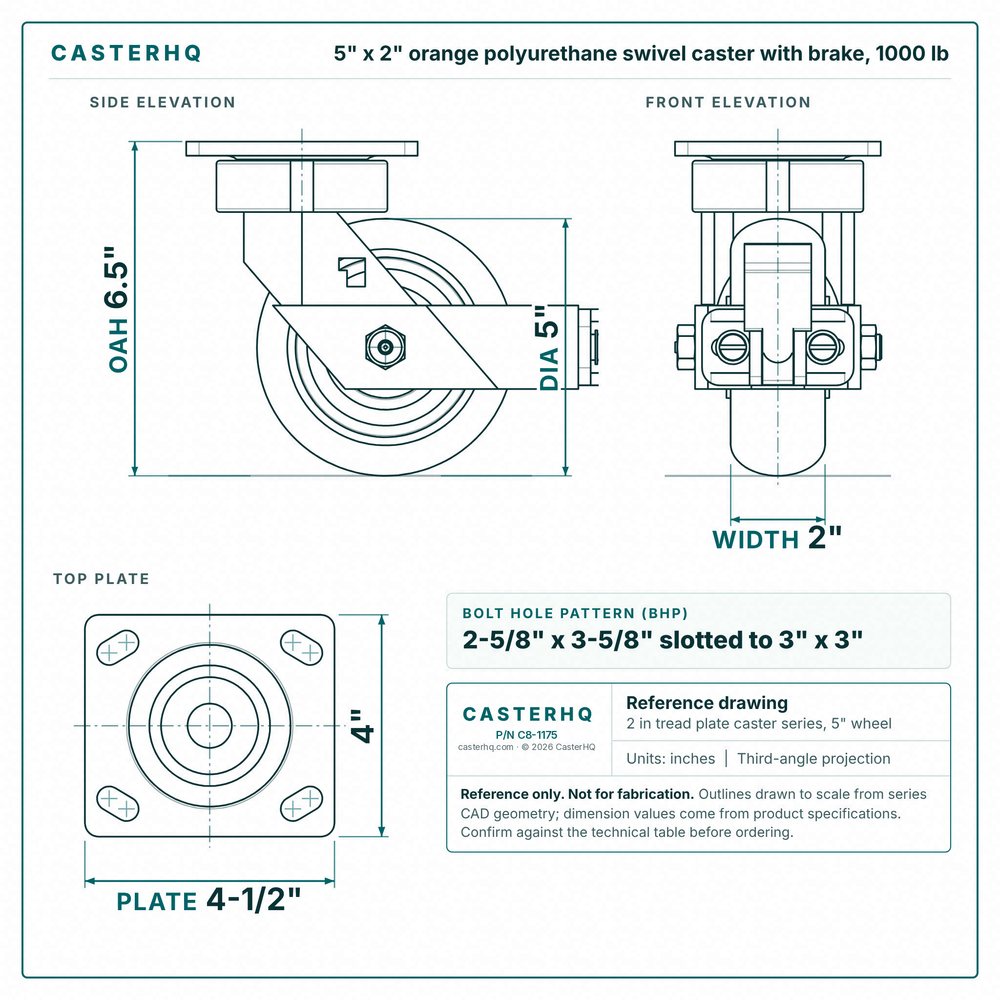

The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$152.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Face Contact Brake |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Face Contact Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
