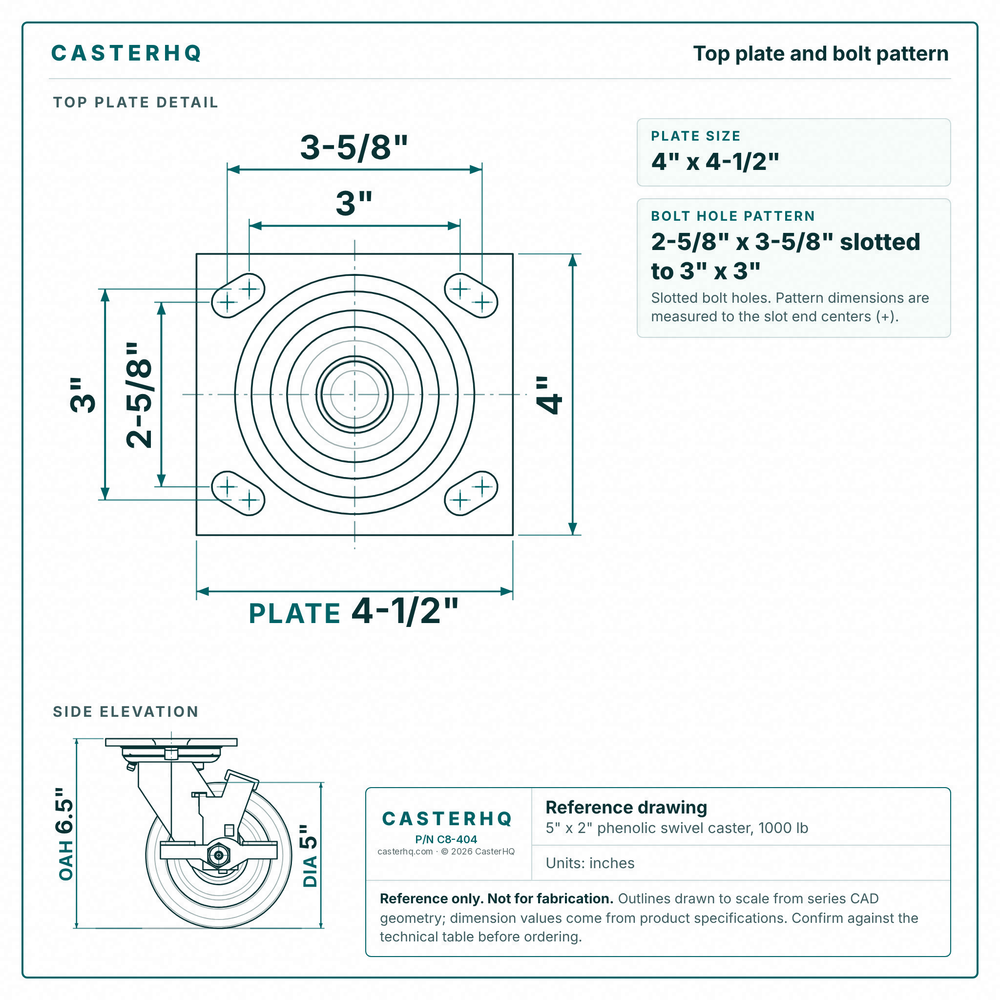

![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-404-top-plate-drawing_100x.png?v=1792278361)

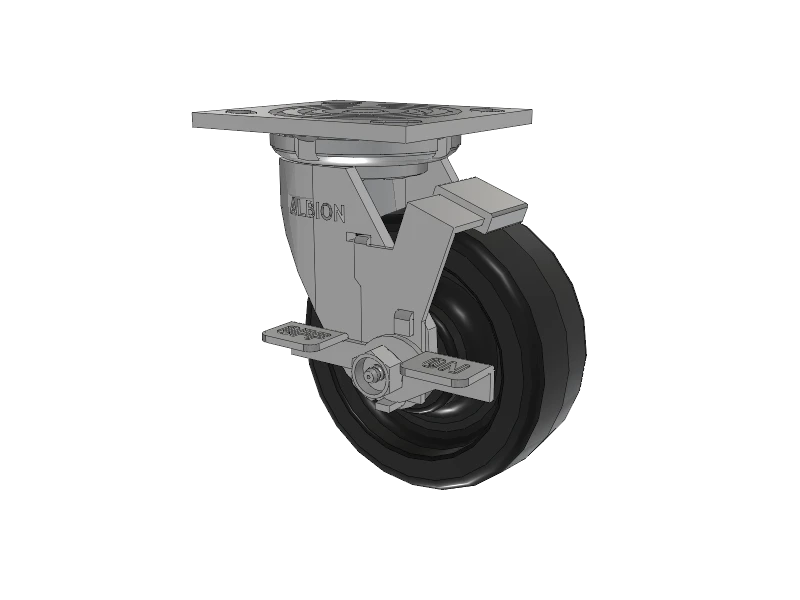

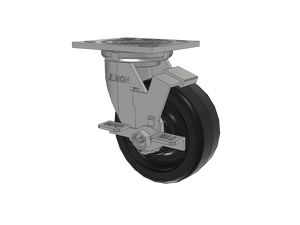

Discover superior mobility with the Albion Casters 5" x 2" USA-Made Side Locking Caster. Designed for strength and reliability, this caster features a robust phenolic wheel and a 4" x 4-1/2" top plate. The side locking mechanism ensures secure and stable positioning, making it ideal for heavy-duty industrial and commercial applications. Manufactured in the USA, this caster offers durability and performance you can trust. Its phenolic wheel is engineered to withstand rigorous use while providing smooth movement on various surfaces.
Upgrade your equipment with the Albion Casters 5" x 2" Side Locking Caster for optimal performance and reliability. Perfect for demanding environments, this USA-made caster combines durability with precision engineering to deliver a superior mobility solution.
Made in the USA by Albion.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" Side Locking Caster is engineered to provide exceptional durability and stability for various industrial and commercial applications. This high-quality caster features a robust 5-inch diameter phenolic wheel, offering superior strength and a smooth rolling experience even under heavy loads. The 2-inch width of the wheel ensures a balanced load distribution, reducing wear and tear on surfaces and extending the caster's lifespan.
With its 4" x 4-1/2" top plate, this caster is designed to fit securely onto a wide range of equipment, making it a versatile choice for different setups. The side locking mechanism is a key feature, allowing for secure positioning and preventing accidental movement, which is crucial in high-traffic or heavy-duty environments.
Proudly made in the USA, this caster adheres to stringent quality standards, ensuring reliable performance and long-term use. The phenolic wheel is specially designed to withstand tough conditions, making this caster a dependable choice for applications that require durability and efficiency.
Whether you need to upgrade your industrial equipment or enhance the mobility of commercial machinery, the Albion Casters 5" x 2" Side Locking Caster is an excellent choice. Its combination of strength, stability, and ease of use makes it a valuable addition to any equipment requiring high-performance mobility solutions.
Enhance your industrial and commercial setups with the Albion Casters 5" x 2" Side Locking Caster. Offering exceptional durability and performance, this caster is perfect for high-demand environments. Invest in quality and efficiency with the Albion Casters model 16TM05201SFBA today.
This Albion 16TM05201SFBA 5" x 2" Phenolic Caster with Wheel Lock Brake – 4" x 4-1/2" Top Plate is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$32.00
| Identification | |
|---|---|
| Part Number / SKU | 16TM05201SFBA |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6.5" |
| Brake | Wheel Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 4-1/8" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-5/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Phenolic |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Rockwell 102 E |
| Wheel Color | Black Phenolic Resin |
| Bearing Type | Roller Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 250°F |
| Warranty | 3 Years |
| Compliance | |
| Country of Origin | United States |
| Buy American | Yes |

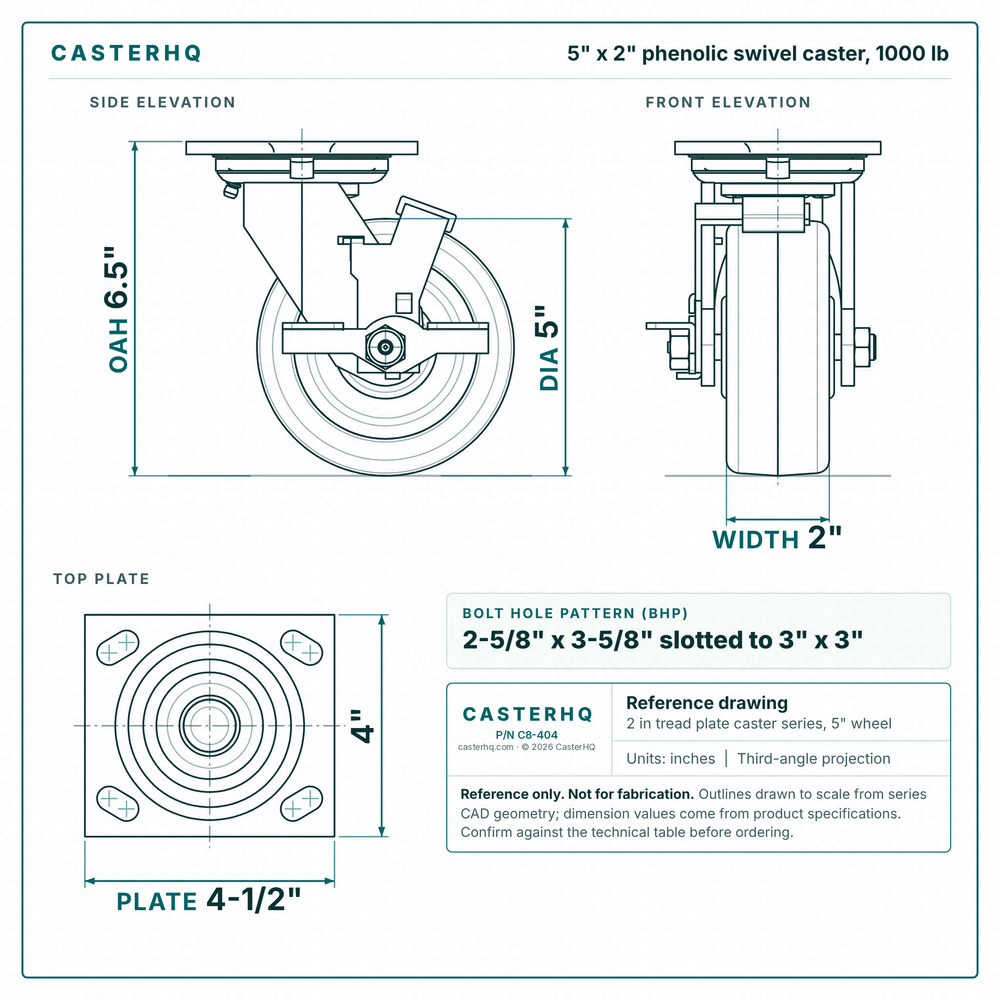

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → | |
| 1000 lbs | 5" × 2"Phenolic | — | 6.5" | $32.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | 6-1/2" | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Semi-Steel | Rigid | 6-1/2" | $31.00 | View → |
