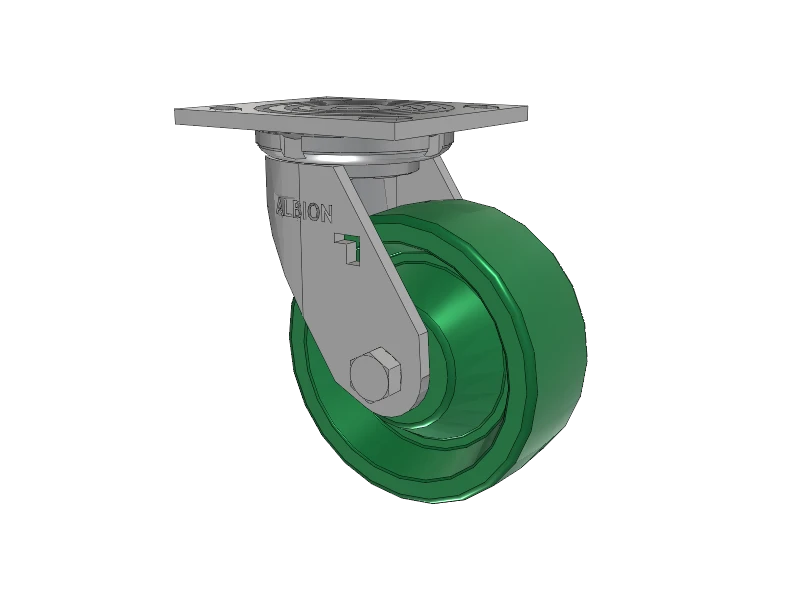

The Albion Casters 5" x 2" USA-Made Top Total Lock Caster offers unmatched stability and durability for industrial applications. Featuring a solid polyurethane wheel and a reliable 4" x 4.5" top plate, this caster is designed to withstand heavy loads while providing a smooth, quiet ride. The top total lock mechanism ensures maximum stability, locking both the wheel and swivel simultaneously, making it ideal for environments that require precise positioning and secure locking. Whether you're outfitting industrial carts, workbenches, or other equipment, this USA-made caster delivers superior performance and reliability.
Upgrade your industrial applications with the Albion Casters 5" x 2" USA-Made Top Total Lock Caster. Experience enhanced stability, durability, and performance with this high-quality caster designed for demanding environments.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" USA-Made Top Total Lock Caster with Solid Polyurethane Wheel is meticulously engineered to meet the rigorous demands of industrial applications. This heavy-duty caster, identified by model number 16XI05202S, combines exceptional durability with innovative design features to ensure optimal performance in a variety of settings. Whether used in industrial carts, workbenches, or other essential equipment, this caster guarantees smooth, stable movement while offering the strength to handle substantial loads with ease.
This Albion Caster is particularly well-suited for use in environments where precise control and secure locking are essential. It’s an excellent choice for:
Albion Casters is a trusted name in the industry, known for producing high-quality, durable casters that meet the needs of demanding industrial applications. The 5" x 2" Top Total Lock Caster with Solid Polyurethane Wheel exemplifies this commitment to excellence, offering a combination of durability, stability, and smooth operation that few competitors can match. When you choose Albion Casters, you're investing in products that are built to last, ensuring you get the best value for your industrial mobility solutions.
This Albion 16XI05202S 5" x 2" Polyurethane Total Lock Caster – CasterHQ is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$59.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Solid Polyurethane |
| Frame Material | Zinc Plated Steel |
