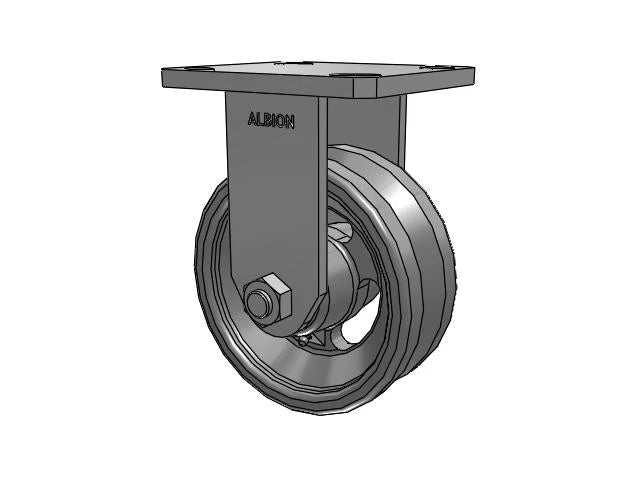

The Albion Casters 5"x2" Kingpinless Rigid Caster with V-Groove Cast Iron Wheel is engineered for superior durability and performance. Designed with a kingpinless construction, this caster provides enhanced strength and stability, eliminating common issues associated with kingpin wear. The V-Groove cast iron wheel offers reliable traction on rail and track systems, making it ideal for heavy-duty industrial and commercial applications. With its robust build and precision engineering, this caster ensures smooth operation and long-lasting service.
Discover the unmatched durability and performance of the Albion Casters 5"x2" Kingpinless Rigid Caster with V-Groove Cast Iron Wheel. Enhance your equipment's efficiency with a caster built for heavy-duty use and precise operation.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5"x2" Kingpinless Rigid Caster with V-Groove Cast Iron Wheel, model 110VG05201R, represents the pinnacle of heavy-duty caster design. Engineered for demanding industrial and commercial applications, this caster offers exceptional performance, durability, and reliability. Its kingpinless design and V-groove wheel make it a top choice for rail and track systems, ensuring smooth, efficient movement even under the heaviest loads.
Enhance the efficiency and durability of your industrial or commercial equipment with the Albion Casters 5"x2" Kingpinless Rigid Caster. Its advanced features and robust design make it an excellent choice for demanding applications. Order now to experience unmatched performance and reliability.
This Albion 110VG05201R 5"x2" V-Groove Cast Iron Rigid Kingpinless Caster is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 3" x 3" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

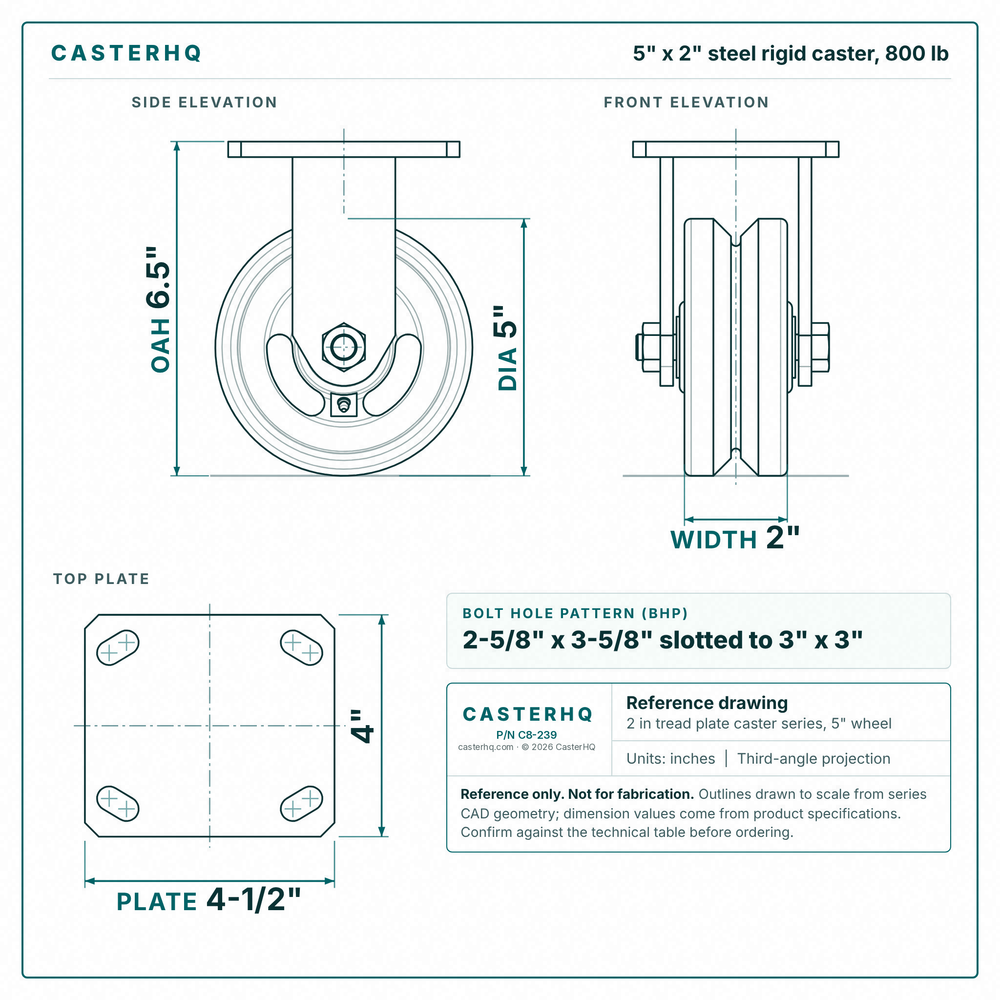

The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$68.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 3" x 3" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
