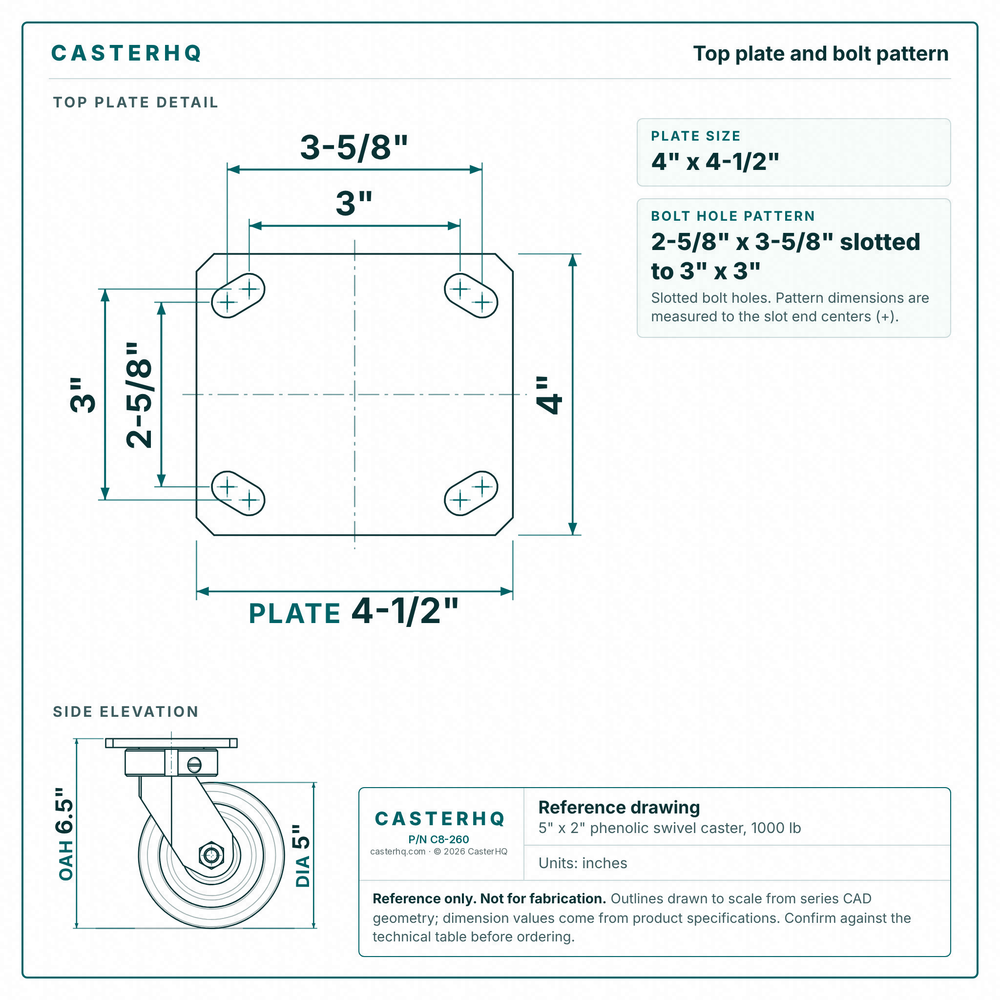

![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-260-top-plate-drawing_100x.png?v=1792277490)
Brand: Albion Casters
SKU: 110TM05201S
Size: 5"x2"
Type: Kingpinless Top Lock Caster
Material: Phenolic Wheel
Load Capacity: 1000 lb
Mount Height: 6.5 inches
Fastening: 4'' x 4-1/2'' Top Plate
Origin: Made in the USA

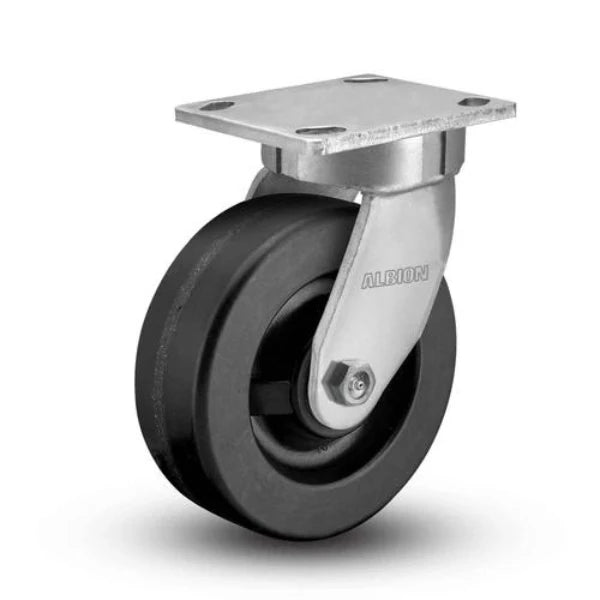

The Albion-Casters 5"x2" Kingpinless Top Lock Caster, featuring a durable Phenolic Wheel, is meticulously crafted in the USA to meet the demanding needs of industrial environments. With a load capacity of 1000 lbs, this caster is designed for heavy-duty use, offering outstanding performance and longevity. The 6.5" mount height and 4'' x 4-1/2'' top plate provide a secure and versatile fit for a wide range of equipment. As part of Albion Casters' commitment to quality, this caster delivers reliable operation in rigorous conditions, making it a top choice for professionals seeking durability and performance.
Our experienced Caster Experts are available Monday through Friday, 8 am - 5 pm, to assist with any inquiries, ensuring you find the perfect solution for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5"x2" Kingpinless Top Lock Caster is designed to meet the rigorous demands of industrial environments. Its phenolic wheel construction offers superior strength, while the 1000 lb load capacity ensures it can handle heavy loads with ease. Manufactured in the USA, this caster is engineered with a focus on durability and reliability, making it a top choice for professionals across various industries.
The kingpinless design of this caster is a standout feature that significantly reduces the risk of failure in demanding applications. Unlike traditional casters, which rely on a central kingpin that can be a point of weakness, the kingpinless design distributes stress more evenly across the caster. This results in enhanced durability, particularly in environments where the caster is subject to shock loads or frequent directional changes.
The 5"x2" phenolic wheel on this caster is known for its exceptional toughness and resistance to impact. Phenolic wheels are favored in industrial settings for their ability to withstand high temperatures and exposure to chemicals, making them ideal for a wide range of applications. Whether you're moving equipment in a manufacturing plant or transporting goods in a warehouse, the phenolic wheel offers low rolling resistance and reliable performance.
When you choose the Albion Casters 5"x2" Kingpinless Top Lock Caster, you're investing in a product that's proudly made in the USA. Albion Casters is a trusted name in the industry, known for producing high-quality casters that deliver consistent performance. Each caster is built with precision and attention to detail, ensuring it meets the high standards required for industrial applications. The commitment to quality means you can trust this caster to perform reliably, even in the most challenging conditions.
This caster is versatile enough to be used across a variety of industries, including manufacturing, warehousing, and logistics. Its robust construction and top lock feature make it suitable for equipment that needs to be securely positioned during operation. The 6.5" mount height and 4"x4-1/2" top plate provide flexibility in installation, ensuring compatibility with a broad range of equipment.
Installing the Albion Casters 5"x2" Kingpinless Top Lock Caster is straightforward, thanks to the standard 4"x4-1/2" top plate. This ensures a secure fit and easy integration into existing setups. Additionally, the caster's design requires minimal maintenance, allowing for long-term use with minimal upkeep. The top lock brake is also easy to engage, providing quick and reliable stationary positioning when needed.
Our dedicated team of Caster Experts is here to support you every step of the way. Whether you have questions about installation, need advice on choosing the right caster for your application, or require assistance with your purchase, we're available to help. Our experts are knowledgeable and ready to provide the guidance you need to ensure you get the best performance from your Albion Casters products.
This Albion 110TM05201S 5"x2" Phenolic Kingpinless Caster Top Plate – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

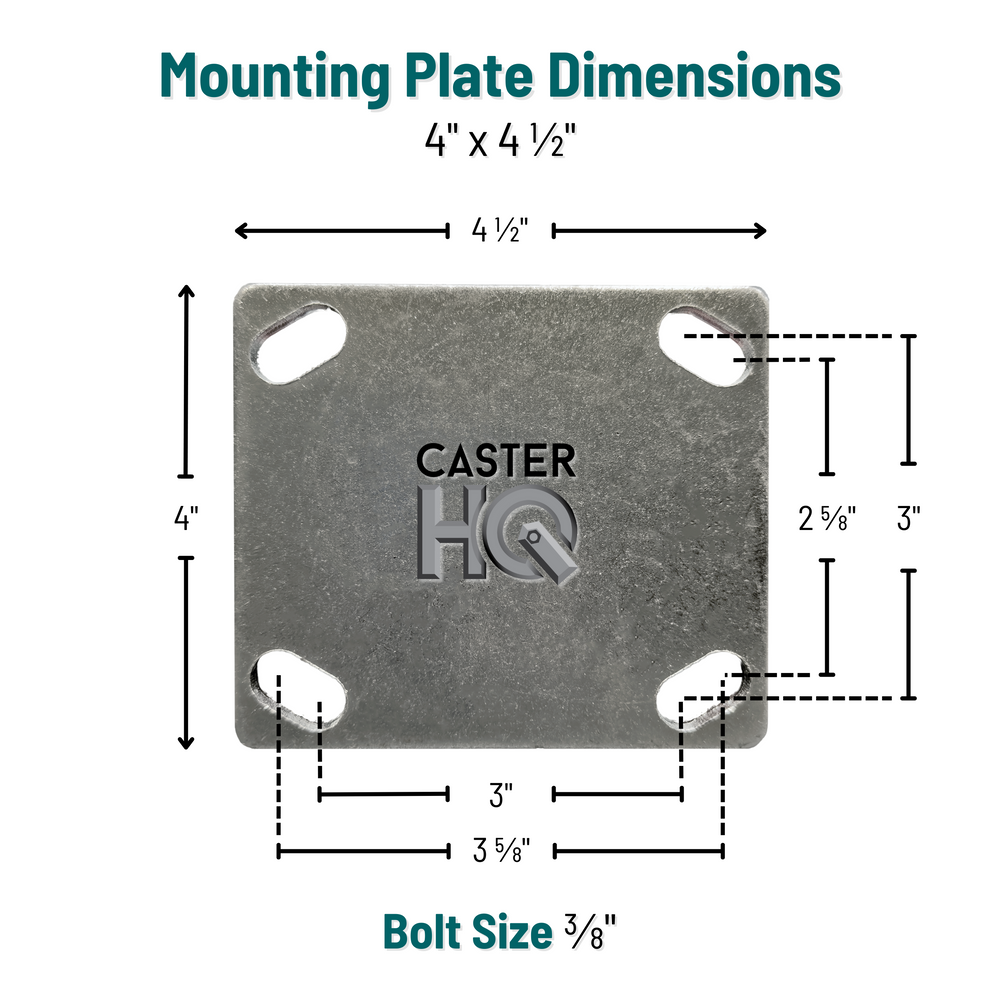

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$89.00
| Identification | |
|---|---|
| Part Number / SKU | 110TM05201S |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6.5" |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 3-7/8" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-3/8" |
| Swivel Construction | Kingpinless |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Wheel | |
| Wheel Material | Phenolic |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Rockwell 102 E |
| Wheel Color | Black Phenolic Resin |
| Bearing Type | Roller Bearing |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 250°F |

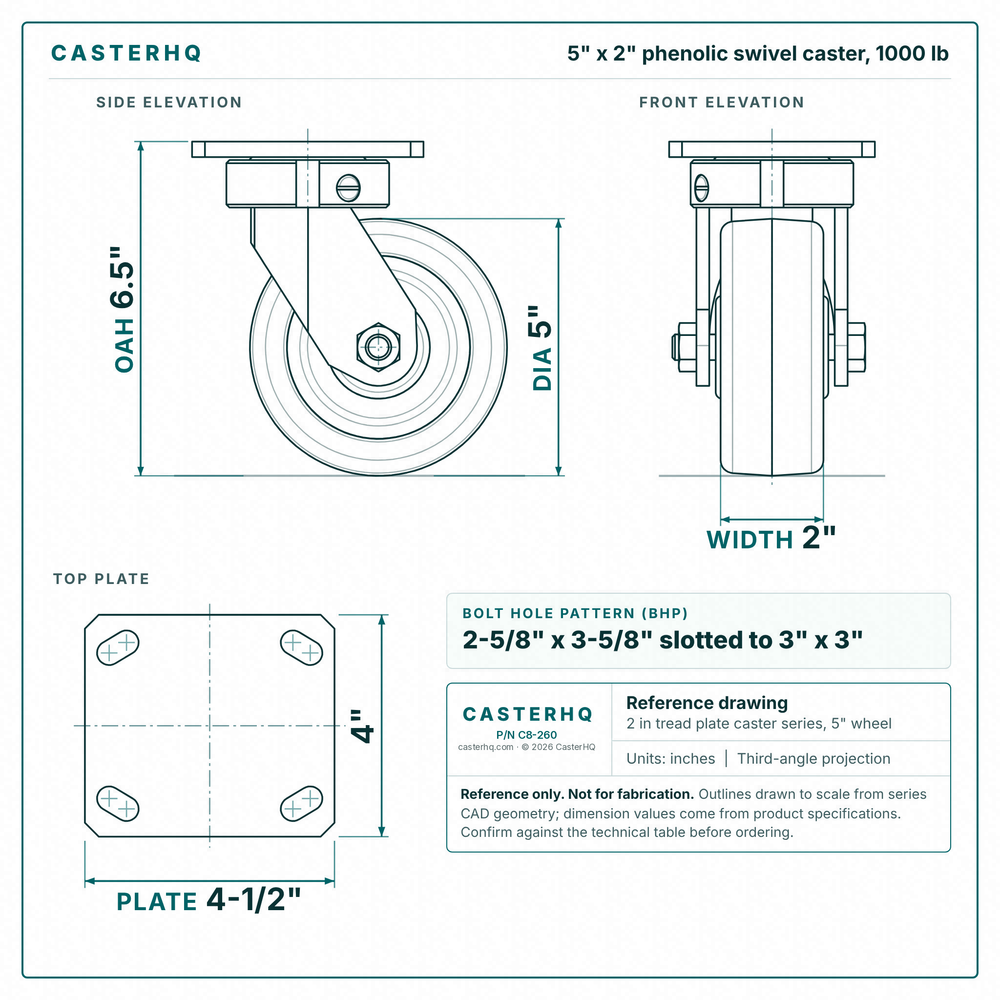

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → | |
| 1000 lbs | 5" × 2"Phenolic | — | 6.5" | $89.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | 6-1/2" | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Semi-Steel | Rigid | 6-1/2" | $31.00 | View → |
