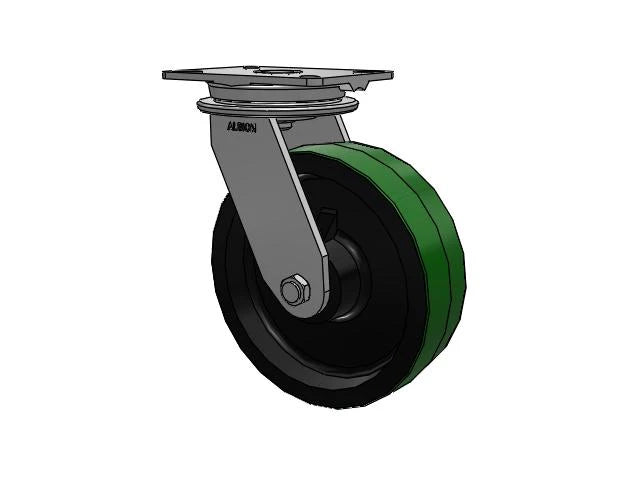

Discover the Albion Casters HD Raceway 10" x 3" Green Poly-on-Iron Tapered Roller Bearing Caster, designed for superior strength and reliability. Featuring a robust 7.25" x 5.25" plate and a durable green poly-on-iron construction, this caster excels in industrial settings where performance and longevity are crucial. The tapered roller bearing system ensures smooth and efficient movement, reducing friction and wear. Ideal for heavy-duty applications, this caster supports substantial loads while maintaining stability and reducing operational noise. Enhance your equipment's mobility with this high-performance caster, engineered to provide reliable service in demanding environments.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters HD Raceway 10" x 3" Green Poly-on-Iron Tapered Roller Bearing Caster is engineered to provide robust performance and exceptional durability for industrial applications. With a generous 10-inch wheel diameter and a 3-inch width, this caster is built to handle heavy loads while ensuring a smooth, stable ride. The green poly-on-iron construction combines the flexibility of poly with the strength of iron, offering superior resistance to wear and impact.
This caster is perfect for a range of industrial applications including heavy-duty carts, machinery, and equipment that require robust support and reliable performance. Its design is suited for environments that demand durability and smooth operation under significant load conditions.
Albion Casters are known for their commitment to quality and performance. This HD Raceway caster exemplifies the brand’s dedication to providing high-quality, durable products that meet the needs of demanding industrial environments. With advanced engineering and premium materials, Albion Casters deliver reliable performance you can trust.
This Albion 90PY10509S 10" x 3" Poly-on-Iron Caster – 7.25" x 5.25" Plate is rated to 3000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

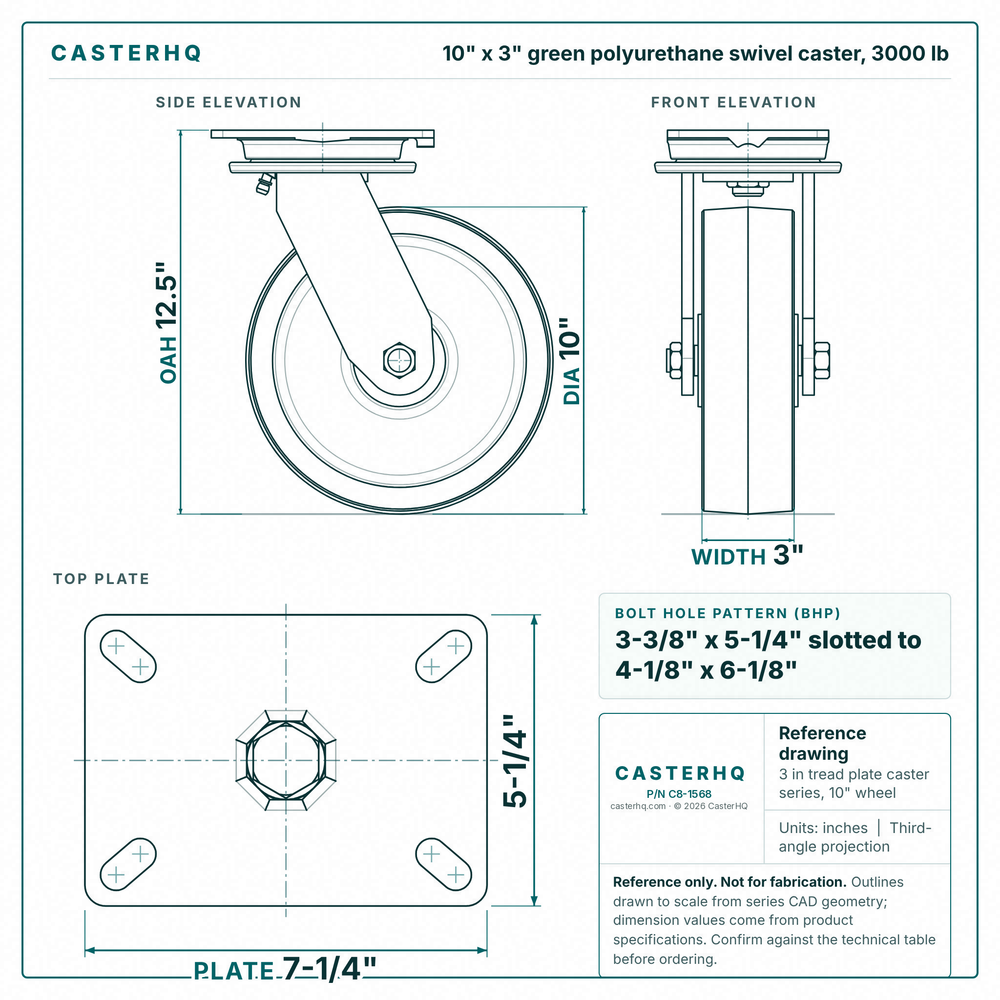

The overall height (floor to top of plate or stem) is 12.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$594.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 12.5" |
| Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 3000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
Albion 90PY10501SL 10" x 3" Py Caster — 3000 lb | CasterHQ
10" x 3" · 3000 lbs · Direct fit
$613
Albion 90PY10501R 10" x 3" Poly-on-Iron Rigid Caster 7.25" x 5.25" Plate | CasterHQ
10" x 3" · 3000 lbs · Direct fit
$386
10" x 3" Phenolic Rigid Kingpinless Caster – 2,900 lb | CasterHQ
10" x 3" · 2900 lbs
$100
View all 10′ x 3′ casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2900 lbsLighter duty | 10" × 3"Phenolic | Swivel | 11-1/2" | $237.00 | View → | |
| 2900 lbsLighter duty | 10" × 3"Phenolic | Swivel | 12.5" | $523.00 | View → | |
| 3000 lbs | 10" × 3"Cast Iron | — | 12.5" | $594.00 | Viewing | |
| 3000 lbsSame capacity | 10" × 3"Cast Iron | Swivel | 12.5" | $613.00 | View → | |
| 3000 lbsSame capacity | 10" × 3"Cast Iron | Rigid | 12.5" | $386.00 | View → |
