PRODUCT CODE: 90FS08501SL

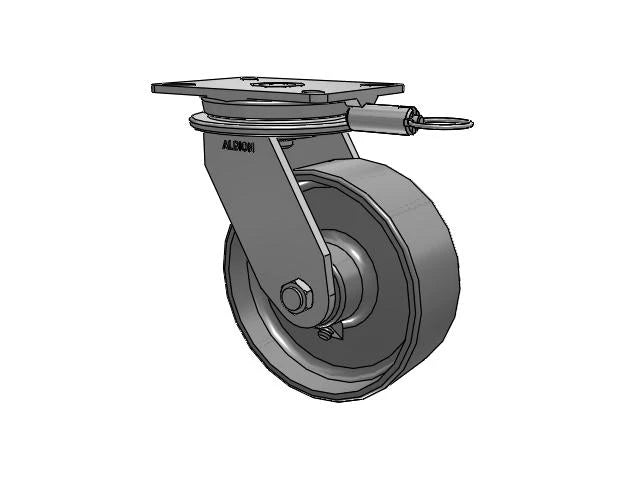

The Albion Casters HD Raceway 8" x 3" Forged Steel Wheel Caster is engineered for exceptional strength and stability. With a sturdy 7.25" x 5.25" plate and a swivel lock feature, this caster provides reliable maneuverability and control in industrial settings. The forged steel wheel is designed to withstand heavy loads while ensuring a smooth glide across various surfaces. Its robust construction minimizes wear, making it ideal for demanding applications that require both durability and performance.
Experience the difference in mobility with the Albion Casters HD Raceway Caster. Perfect for heavy-duty equipment, this caster combines strength, efficiency, and ease of use. Optimize your workflow today by upgrading to our high-performance caster solution.
| Specification | Details |
|---|---|
| SKU | 90FS08501SL |
| Raceway Type | Industrial dual ball bearing raceways with a 4” diameter deep-grooved load raceway with 1/2” steel balls for better load distribution, and the thrust race is 2-5/8” diameter using 3/8” diameter steel balls for increased capacity |
| Brake | None |
| Load Capacity | 3500 lb |
| Mounting Height | 10.5 in |
| Wheel Tread Width | 3 in |
| Wheel Description | FS - Drop-Forged Steel |
| Wheel Color | Clear Coat Enamel |
| Wheel Bearing | Roller |
| Wheel Profile | Machined flat with rounded edges |
| Wheel Hardness | Rockwell 80 B |
| Wheel Thread Guards | None |
| Fastening | 7 1/4" x 5 1/4" Top Plate |
| Bolt Hole Pattern | 5 1/4" x 3 3/8" slotted to 6 1/8" x 4 1/8" |
| Plate Bolt Size Recommended | 1/2" |
| Swivel Radius | None |
| Swivel Lead | None |
| Swivel Lock | Hand Operated Swivel Lock (L) |
| Toe Guard | None |
| Finish | Zinc Plated |
| Operating Temperature Range | Up to +800°F |
| Manufacturing Code | 90FS08501SL |
| Warranty | 1 year |
| Conformity | RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability |
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
The Albion Casters HD Raceway 8" x 3" Forged Steel Wheel Caster is expertly engineered for those demanding industrial applications that require robust performance and exceptional durability. This caster is designed to handle heavy loads while ensuring smooth and stable movement, making it an ideal choice for various settings, including warehouses, factories, and workshops.
This versatile caster is suitable for a wide range of applications, including:
Choosing Albion Casters means investing in quality and reliability. Our commitment to excellence is reflected in every product we offer. The HD Raceway caster not only meets industry standards but also exceeds expectations in performance, making it a trusted choice for professionals who demand the best.
$649.00
