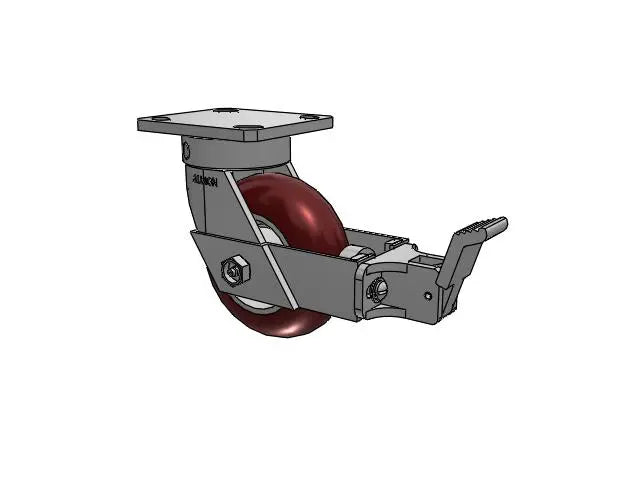

Discover the perfect blend of durability and efficiency with the Albion Casters Kingpinless 5" x 2" MAX-Efficiency Maroon Caster. Designed for high-performance applications, this caster features a kingpinless design that eliminates wear and enhances stability. The robust 4" x 4.5" plate ensures secure attachment, while the MAX-Efficiency Rubber provides excellent shock absorption and a smooth, quiet ride. The integrated face brake offers precise control, making it ideal for environments where stability and maneuverability are crucial. Upgrade your equipment with this caster for reliable, long-lasting performance.
Elevate your mobility solutions with the Albion Casters Kingpinless Caster. Experience unmatched durability, control, and efficiency with the MAX-Efficiency Rubber and integrated face brake. Ideal for industrial and heavy-duty use.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters Kingpinless 5" x 2" MAX-Efficiency Maroon Caster is engineered for superior performance and reliability in demanding industrial environments. With its innovative kingpinless design and MAX-Efficiency Rubber construction, this caster is built to provide exceptional durability and smooth operation even under heavy loads.
Albion Casters is renowned for its commitment to quality and innovation in caster design. The Kingpinless 5" x 2" MAX-Efficiency Maroon Caster exemplifies this dedication, offering a high-performance solution that meets the demands of modern industrial applications. By choosing this caster, you benefit from advanced engineering, reliable durability, and enhanced functionality, ensuring that your equipment performs optimally and stands the test of time.
Upgrade your equipment's performance and durability with the Albion Casters Kingpinless 5" x 2" MAX-Efficiency Maroon Caster. Experience the perfect combination of strength, efficiency, and ease of use, tailored to meet the needs of high-demand industrial settings.
This Albion 110AX05228SFBB 5" x 2" Rubber Kingpinless Caster with Brake – CasterHQ is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Face Contact Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$176.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Face Contact Brake |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Face Contact Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
