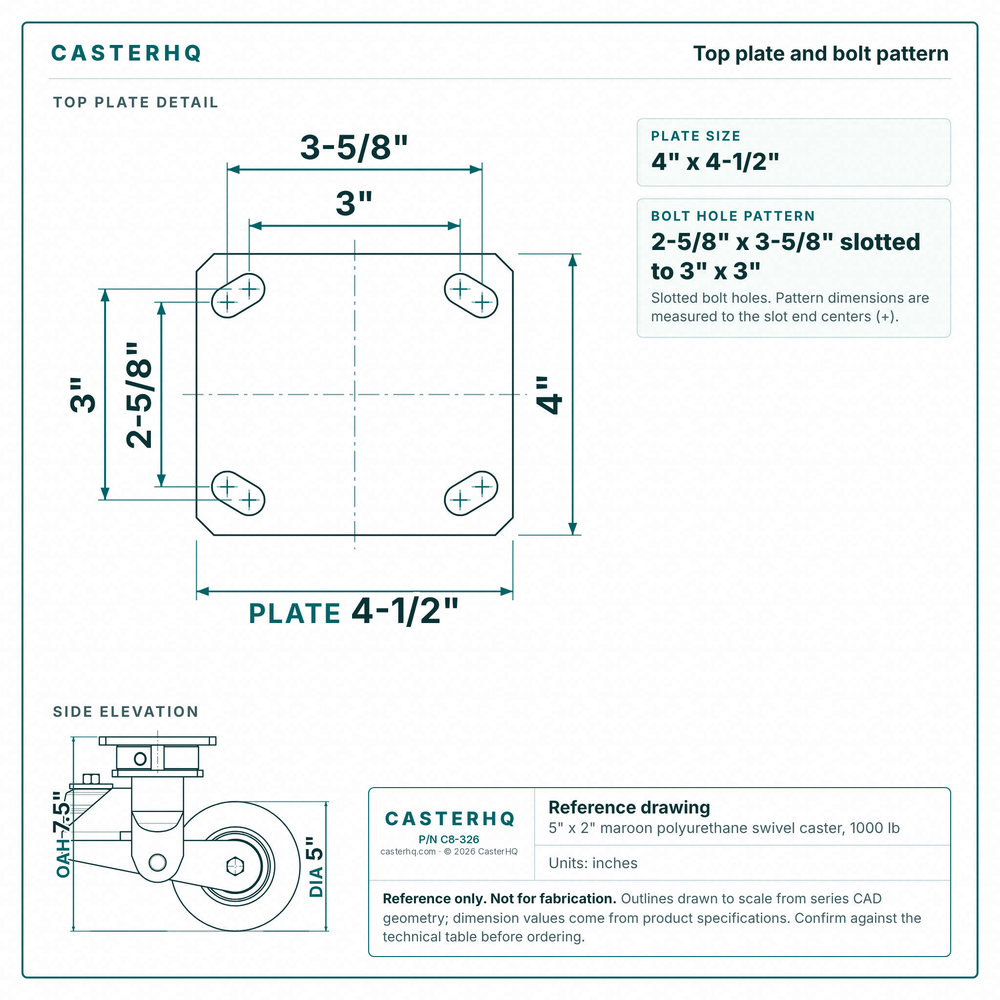

![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-326-top-plate-drawing_100x.png?v=1792277878)

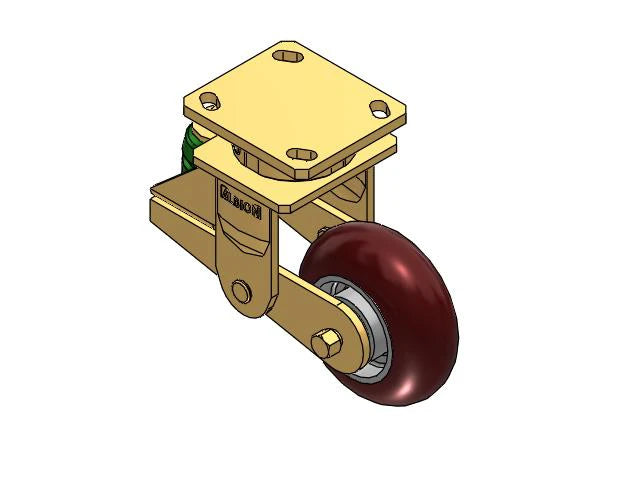

The Albion Casters Shock-Absorbing 5" x 2" MAX-Efficiency Maroon Poly-Spring Caster with 4" x 4.5" Plate is engineered for superior performance and durability. This caster combines a robust poly-spring construction with a shock-absorbing design, providing smooth and stable movement for heavy-duty applications. Ideal for industrial carts, material handling equipment, and other high-traffic uses, this caster is designed to handle demanding environments while reducing vibration and noise. The 4" x 4.5" mounting plate ensures easy installation and compatibility with various equipment.
Optimize your industrial equipment's mobility and performance with the Albion Casters Shock-Absorbing 5" x 2" MAX-Efficiency Caster. Order now to experience unparalleled durability and efficiency.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters Shock-Absorbing 5" x 2" MAX-Efficiency Poly-Spring Caster with a 4" x 4.5" Plate is engineered for exceptional performance and durability in industrial settings. Combining a high-quality maroon poly-spring material with a robust plate, this caster offers a reliable solution for heavy-duty applications where mobility and load-bearing capacity are critical.
The Albion Casters Shock-Absorbing 5" x 2" MAX-Efficiency Poly-Spring Caster is designed to enhance operational efficiency in various industrial applications. Its shock-absorbing capabilities reduce wear and tear on both the caster and the equipment it’s mounted on. The poly-spring material ensures a smoother ride, reducing noise and vibration, while the sturdy plate provides a secure and stable base. This caster is built to handle high loads, making it a dependable choice for environments with heavy-duty demands.
Perfect for a range of industrial uses, the Albion Casters Shock-Absorbing Caster is ideal for equipment that requires frequent movement in high-traffic areas. Common applications include industrial carts, material handling systems, and heavy machinery. Its versatility and robust design make it suitable for both indoor and outdoor environments where durability and performance are essential.
Enhance the efficiency and reliability of your industrial equipment with the Albion Casters Shock-Absorbing 5" x 2" Caster. Experience top-tier performance and durability by adding this high-quality caster to your setup today.
This Albion 141AX05228S 5" x 2" Poly-Spring Caster 4" x 4.5" Plate is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$200.00
| Identification | |
|---|---|
| Part Number / SKU | 141AX05228S |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 7.5" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-1/2" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 3" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 85 Shore A |
| Wheel Color | Maroon Tread on Aluminum Core |
| Bearing Type | Precision Ball Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -40°F to 180°F |
| Warranty | 1 Year |

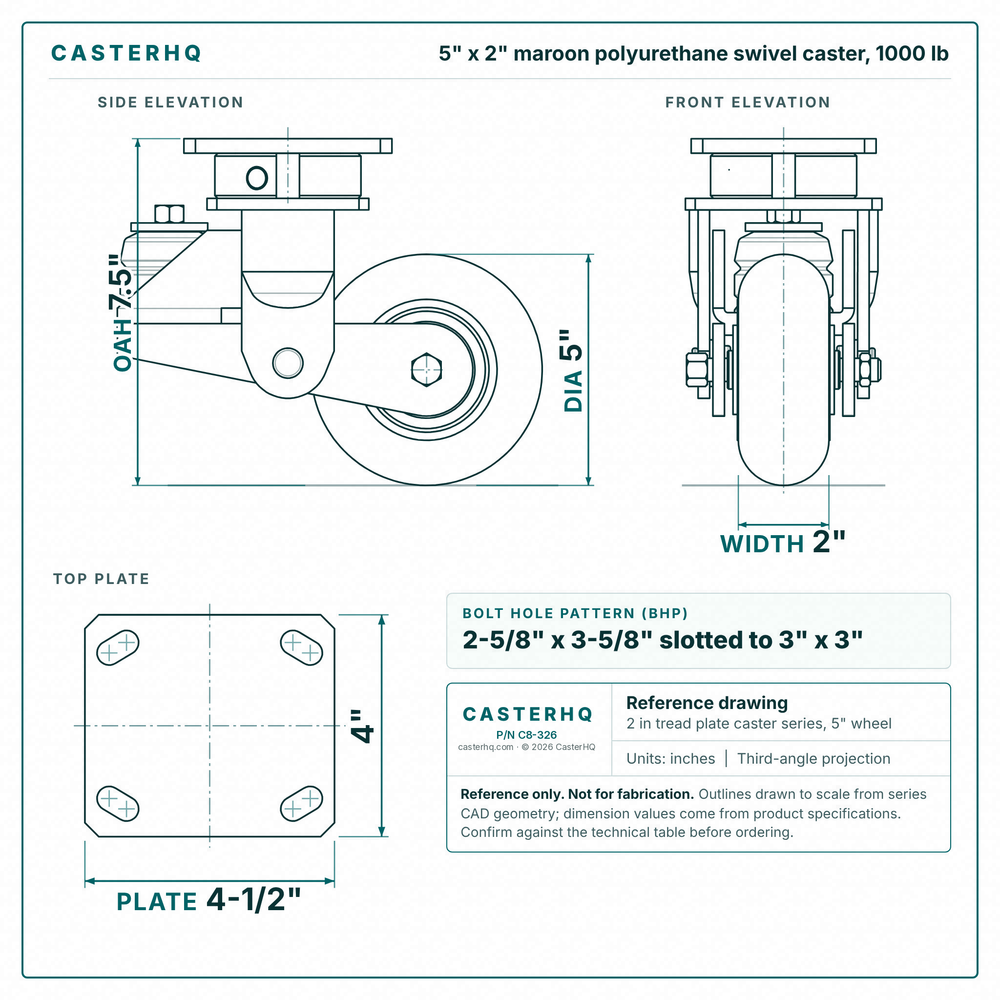

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → | |
| 1000 lbs | 5" × 2"Polyurethane | Swivel | 7.5" | $200.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | 6-1/2" | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Semi-Steel | Rigid | 6-1/2" | $31.00 | View → |
![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-326-top-plate-drawing_1000x.png?v=1792277878)
