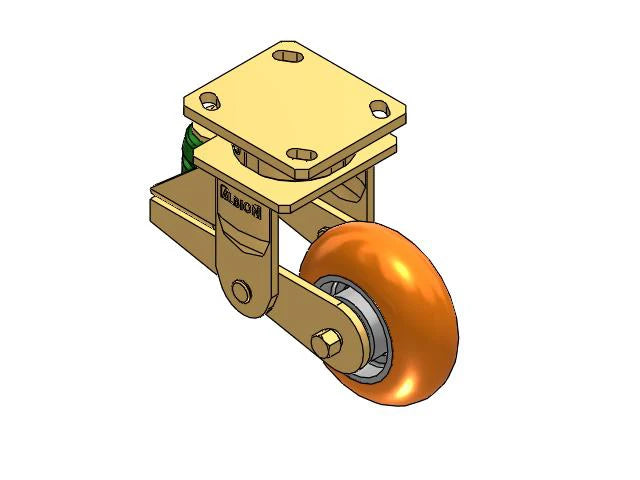

The Albion Casters Shock-Absorbing Caster offers exceptional mobility and durability with its 5"x2" MAX-Efficiency Orange Poly-Spring wheel. Designed to reduce vibrations and absorb shocks, this caster enhances the performance of industrial carts and equipment. The robust 4"x4.5" plate ensures secure mounting, making it a versatile choice for a variety of applications. Whether you need reliable support for heavy loads or smooth movement in challenging environments, the Albion Casters 141AN05228S provides both efficiency and resilience.
Maximize your equipment's efficiency and reduce operational noise with the Albion Casters Shock-Absorbing Poly-Spring Caster. Order now to experience superior mobility and durability.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters Shock-Absorbing Caster is designed to enhance industrial equipment with superior mobility and durability. Featuring a 5"x2" MAX-Efficiency Orange Poly-Spring wheel, this caster is engineered for high performance and long-term reliability. The integrated shock-absorbing technology minimizes vibrations and noise, making it ideal for heavy-duty applications where smooth operation and load support are crucial.
The Albion Casters Shock-Absorbing Caster is ideal for a wide range of industrial applications, including heavy-duty carts, equipment, and machinery. Its advanced design not only improves mobility but also extends the lifespan of your equipment by reducing stress and wear. Whether you're moving large loads or navigating rough terrain, this caster provides the reliability and performance needed for efficient operations.
Albion Casters is known for its commitment to quality and innovation. The Shock-Absorbing Caster represents the pinnacle of engineering excellence, combining durable materials with cutting-edge technology. Choose Albion Casters for unmatched performance, reliability, and a product that delivers value over time.
This Albion 141AN05228S 5"x2" Orange Poly-Spring Spring Loaded Caster – CasterHQ is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

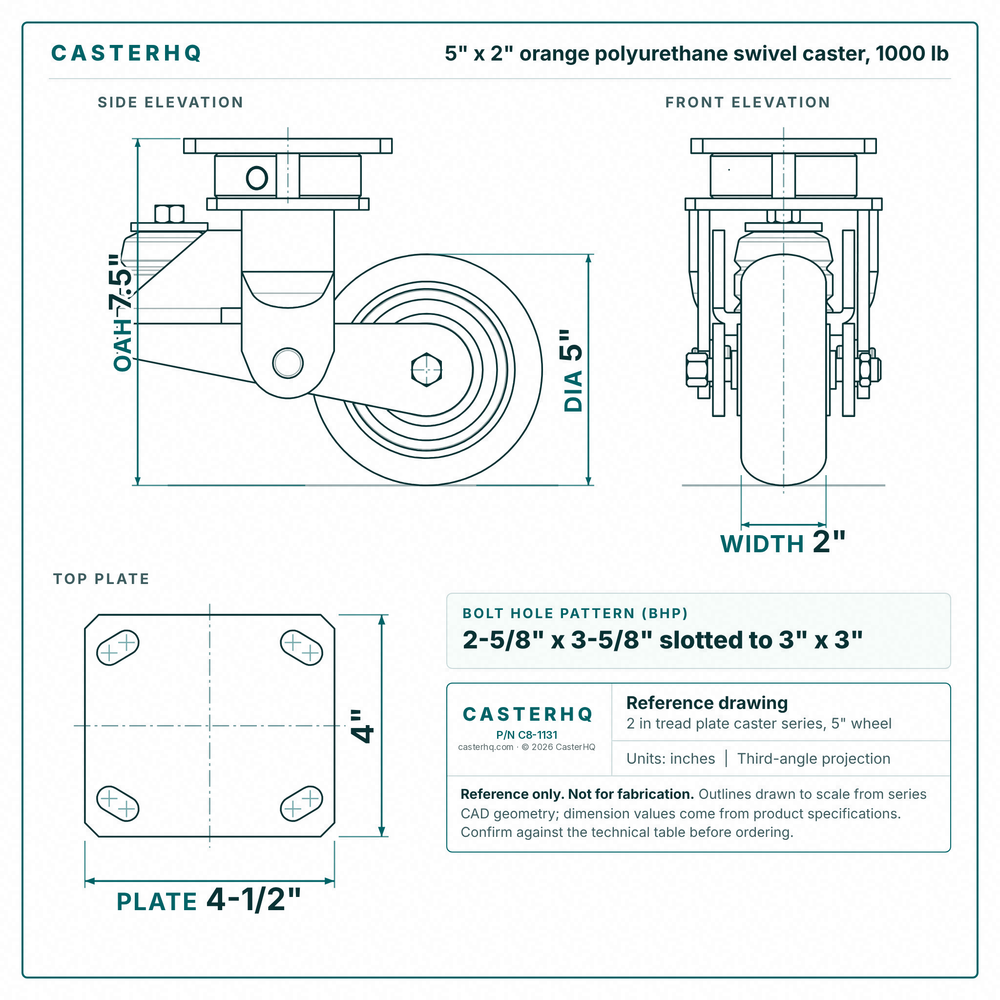

The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$200.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 7.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
