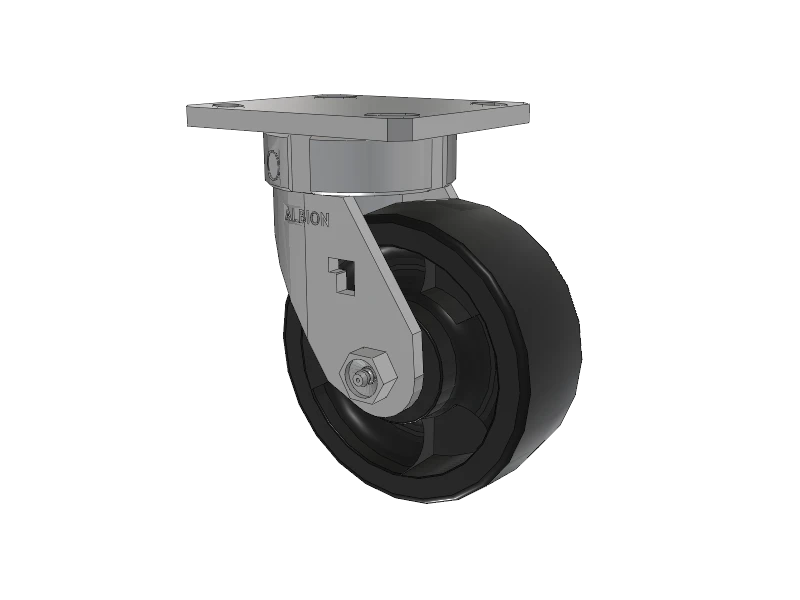

Experience the reliability of Albion Casters' Stainless Kingpinless 5" x 2" Nylon High-Heat Wheel Caster, perfect for applications demanding high-heat resistance and heavy-duty performance. This caster's high-heat resistant nylon wheel is ideal for environments where temperature control and durability are paramount. The kingpinless design enhances load-bearing capabilities and increases the lifespan of the caster, making it a superior choice for industrial equipment.
Upgrade to Albion Casters for unparalleled performance in high-heat conditions. This caster offers stability, durability, and a smooth roll, ensuring your equipment operates at peak efficiency.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters Stainless Kingpinless 5" x 2" Nylon High-Heat Wheel Caster is engineered for exceptional durability. The kingpinless design minimizes the points of stress that typically lead to premature failure, making it an excellent choice for heavy industrial use. Its stainless steel frame not only resists corrosion but also provides structural integrity that can withstand rigorous conditions.
Built to perform in extreme environments, this caster's high-heat resistant nylon wheels can handle temperatures that ordinary casters cannot. This makes it ideal for applications in baking, curing ovens, and other high-temperature processes where lesser materials would degrade.
Featuring a 5-inch diameter wheel, this caster provides a smooth, stable roll, making it easier to move heavy loads. The nylon material ensures a quiet operation and reduced wear on floors, which is critical in settings like hospitals or schools. The design also includes a precision bearing for enhanced mobility and load distribution.
From manufacturing plants to commercial kitchens, the Albion Casters Stainless Kingpinless Caster is versatile enough to fit a broad range of industrial applications. Its robust design and temperature resilience make it particularly suitable for machinery in pharmaceuticals, food processing, and chemical industries.

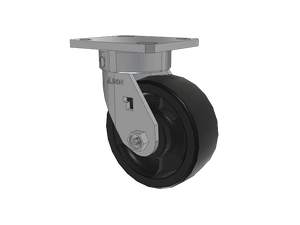

This Albion 120HT05201S 5" x 2" High-Heat Nylon Stainless Kingpinless Caster is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 550°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

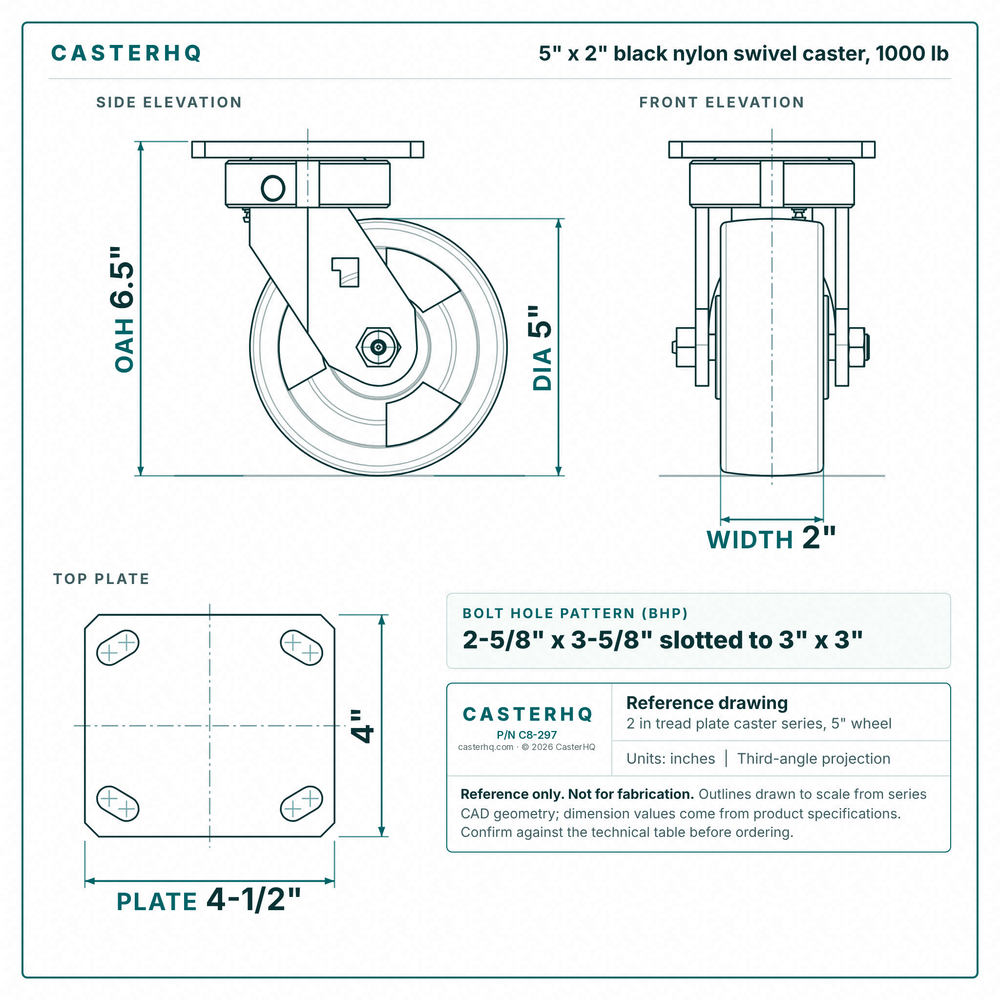

The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$247.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | Up to 550°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Stainless Steel |
5" x 2" Phenolic Rigid Caster – 1000 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 1000 lbs · Direct fit
$20
View all 5′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 500 lbsLighter duty | 5" × 2"Gray Rubber | Rigid | 6-1/2" | $27.00 | View → | |
| 750 lbsLighter duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
| 1000 lbs | 5" × 2"Nylon | Swivel | 6.5" | $247.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | — | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Cast Iron | Rigid | 6-1/2" | $31.00 | View → |
