Industrial Casters. Engineered for Spec.
Most in-stock items ship same or next business day. Shipping rates shown at checkout.
PRODUCT CODE: 16CA04201SL
| Specification | Details |
|---|---|
| SKU | 16CA04201SL |
| Raceway Type | Smooth-formed, hardened double ball bearing raceways minimize ball indentation and wear |
| Brake | None |
| Load Capacity | 1000 lb |
| Mounting Height | 5.63 in |
| Wheel Tread Width | 2 in |
| Wheel Description | CA - Cast Iron |
| Wheel Color | Grey Enamel |
| Wheel Bearing | Roller |
| Wheel Profile | Flat with Rounded Edges |
| Wheel Hardness | Brinell 145 |
| Wheel Thread Guards | None |
| Fastening | 4-1/2" x 4" Top Plate |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Plate Bolt Size Recommended | 3/8" |
| Swivel Radius | 3.69 in |
| Swivel Lead | None |
| Swivel Lock | Swivel Lock (L) |
| Toe Guard | None |
| Finish | Zinc Plated |
| Operating Temperature Range | Up to +350°F |
| Manufacturing Code | 16CA04201SL |
| Warranty | 3 year |
| Conformity | RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability |

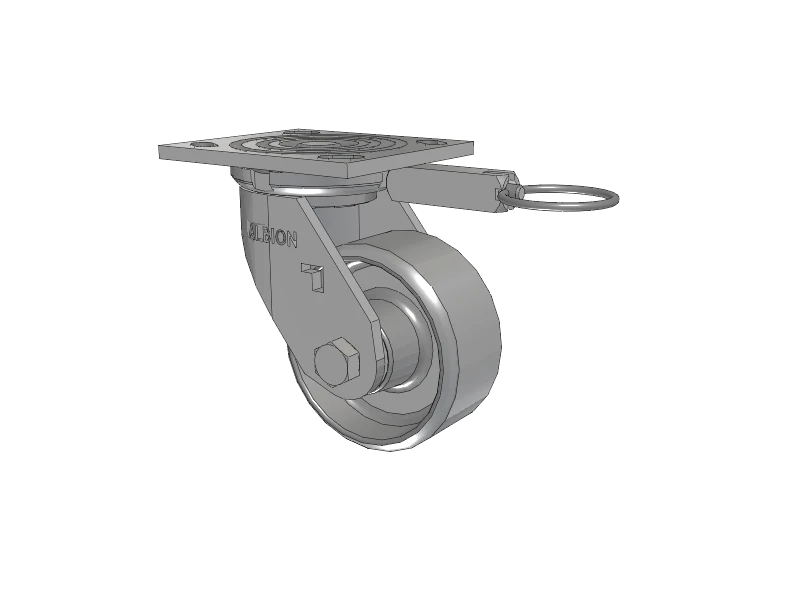

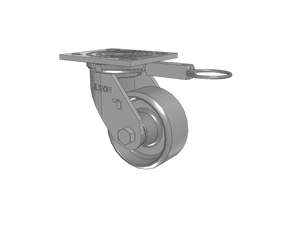

Enhance your equipment's functionality with the Albion Casters USA-Rig 4" x 2" Cast Iron Wheel Caster. Built for durability and reliability, this caster features a robust 4" x 4.5" plate and a swivel lock mechanism that allows for secure positioning during use. The cast iron construction ensures long-lasting performance, making it an ideal choice for heavy-duty applications. With a smooth swivel action, it provides exceptional maneuverability while supporting significant loads, reducing wear on your equipment and enhancing operational efficiency.
Upgrade your industrial equipment with the Albion Casters USA-Rig Caster. Experience the perfect combination of strength, stability, and ease of movement, designed to meet the demands of your toughest jobs.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
The Albion Casters USA-Rig 4" x 2" Cast Iron Wheel Caster is a reliable and durable solution designed for heavy-duty applications. With its robust construction and innovative swivel lock feature, this caster enhances the mobility and stability of your industrial equipment. It is particularly well-suited for environments that demand high performance and longevity.
This caster is ideal for use in various environments, including:
Invest in the Albion Casters USA-Rig 4" x 2" Cast Iron Wheel Caster to enhance the mobility and efficiency of your operations. With its combination of durability, easy installation, and secure movement, it is the perfect solution for businesses looking to optimize their equipment performance. Experience reliable mobility solutions that stand the test of time—order yours today!
$146.00

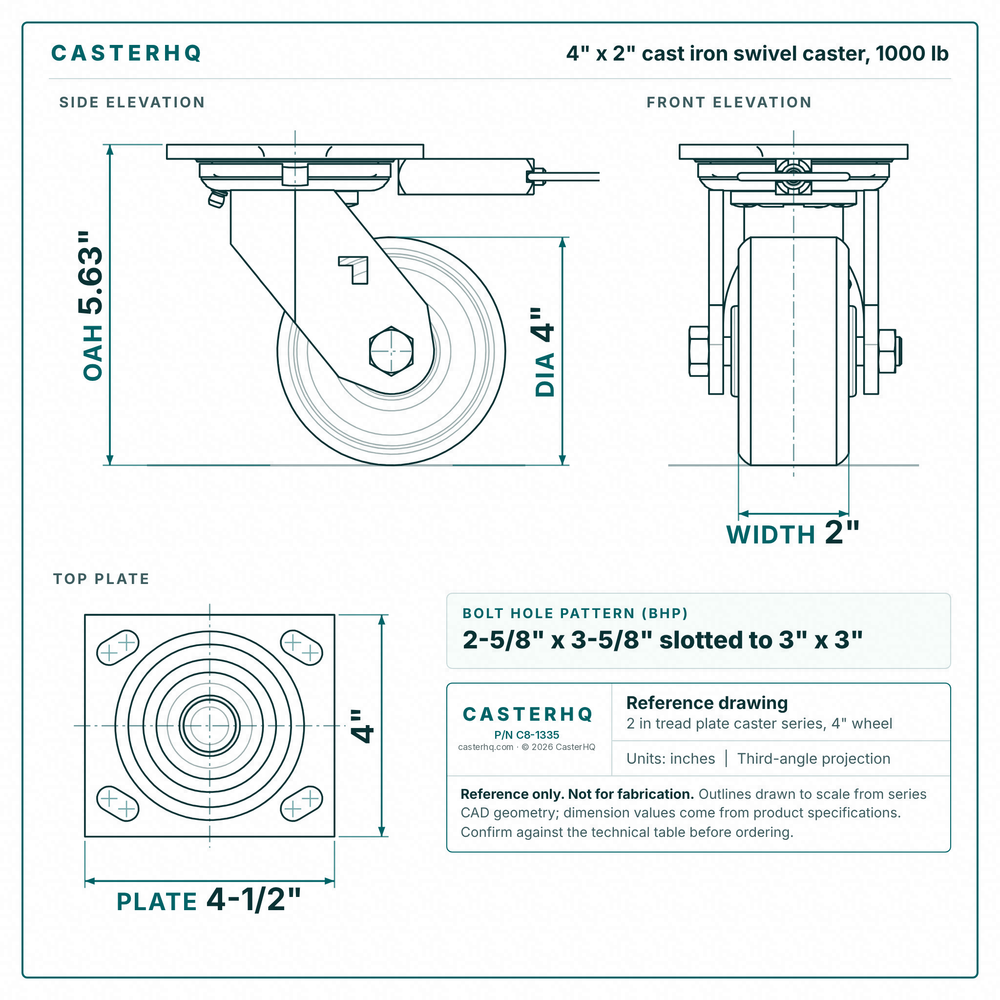

| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Rig Type | Swivel |
| Brake Type | No Brake |
