The Colson 2.03254.95-MTG53-BRK5 is a 3-1" x 1-1" polyurethane plate caster rated 250 lbs per caster, mounted on a 1-1/2" x 13" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 3-1" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Colson on standard-duty industrial carts where bearing life and quiet roll matter more than maximum capacity. The 2.03254.95-MTG53-BRK5 earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 3-1" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 2.03254.95-MTG53-BRK5 is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
250 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 3-1" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

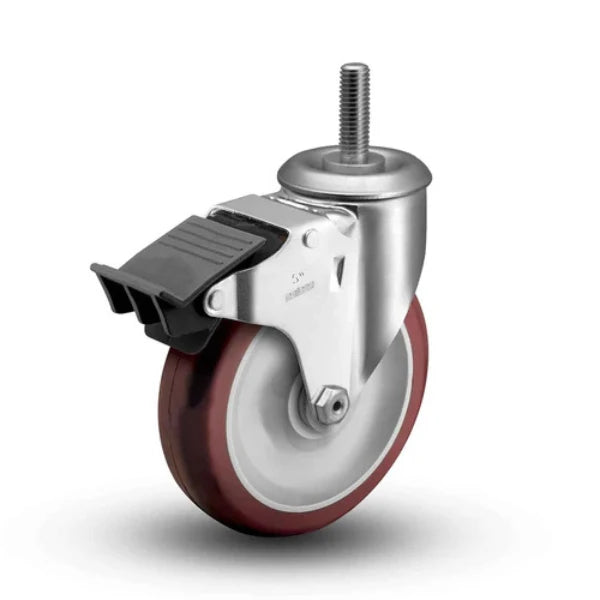

The Colson Casters 3.5" x 1.25" Total Lock caster is a high-performance solution designed to offer stability, durability, and smooth maneuverability. Built with a 1/2" thread stem and a Poly HI-TECH BB wheel featuring precision ball bearings, this caster ensures reliable movement and long-lasting performance in a variety of demanding environments. With its Total Lock feature, this caster locks both the wheel and the swivel, providing enhanced stability for stationary equipment.
Colson Casters are engineered to endure the harshest working conditions. The Poly HI-TECH BB wheel offers exceptional wear resistance, making it ideal for environments that experience heavy traffic or where durability is a concern. The caster’s precision ball bearing system ensures smooth performance even under substantial load-bearing, making it perfect for use in warehouses, factories, and hospitals. Additionally, the Total Lock function gives users peace of mind when securing equipment in place, further enhancing safety in high-use settings.
This caster is ideal for a range of applications across multiple industries:
Colson Casters are a trusted brand known for their engineering excellence and commitment to quality. This caster is backed by years of innovation and expertise in creating durable mobility solutions. Whether for industrial, commercial, or medical use, Colson Casters are designed to withstand the demands of tough environments, providing reliable performance, stability, and safety for your equipment.

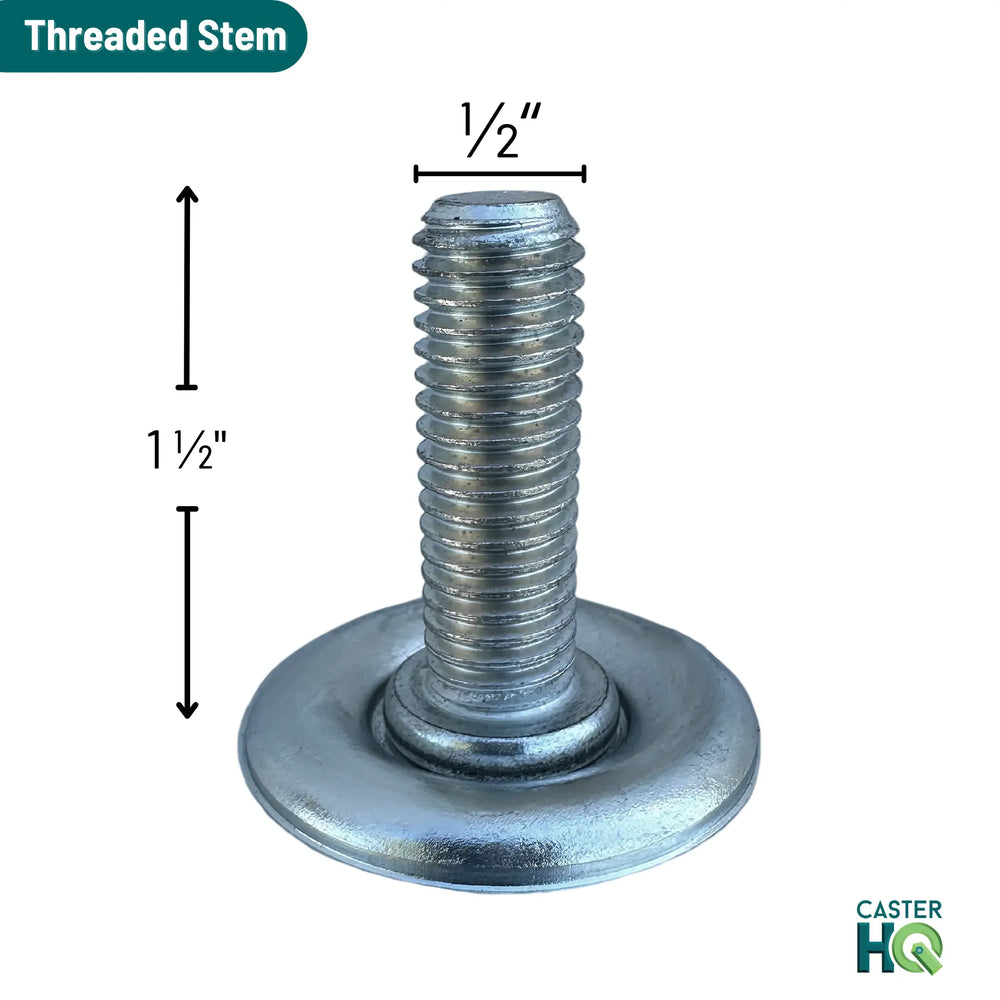

The 1/2" thread stem design allows for easy installation and quick attachment to a variety of equipment. The caster is low-maintenance, but regular checks and cleaning of the wheel and bearing system are recommended to ensure long-term performance. Proper maintenance will also help prevent wear and tear, ensuring that the caster continues to deliver smooth operation even under heavy loads.
When it comes to selecting a caster that combines reliability, durability, and safety, the Colson Casters 3.5" x 1.25" Total Lock with 1/2" Thread Stem and Poly HI-TECH BB Wheel stands out. It is designed for users who demand superior performance, offering a secure and smooth experience even in the most challenging environments. Whether you are outfitting industrial machinery or ensuring the safety of hospital equipment, this caster provides the solution you need for efficient mobility.
This Colson 2.03254.95-MTG53-BRK5 3-1" x 1-1" Polyurethane Caster — 250 lb is rated to 250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 1-1/4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 1-1/2" x 13" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 4.56". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$58.00
| Identification | |
| Brand | colson header1 |
| Dimensions & Mounting | |
| Wheel Diameter | 3-1/2" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 4.56" |
| Plate Size | 1-1/2" x 13" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 250 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
