What load capacity do I need for industrial casters?

Take total loaded weight, divide by the number of casters, then multiply by 1.25 for a 25% safety margin. Example: 4,000 lb cart on 4 casters = 1,000 lb each × 1.25 = 1,250 lb minimum capacity per caster. Pick the next-higher rated caster, never the exact match.

Plate caster vs stem caster — which is stronger?

Plate casters are significantly stronger. Top plate mounts distribute load across 4 bolts and a flat steel plate, supporting up to 40,000 lb per caster. Threaded stem casters max out around 1,200 lb because the stem becomes the failure point. Use plate for OEM, fixed equipment, and anything over 1,200 lb per caster.

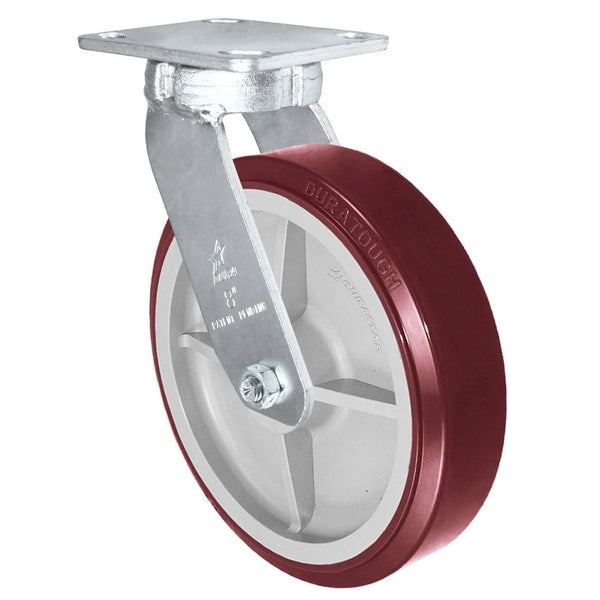

When should I use kingpinless casters?

Above 1,500 lb per caster, on towlines, on AGVs, and any application with shock loads or vibration. The kingpin is the single failure point on traditional casters, so eliminating it can extend swivel life 3–5×. Kingpinless casters cost more per unit but the lifetime cost is lower.

What wheel material is best for warehouse floors?

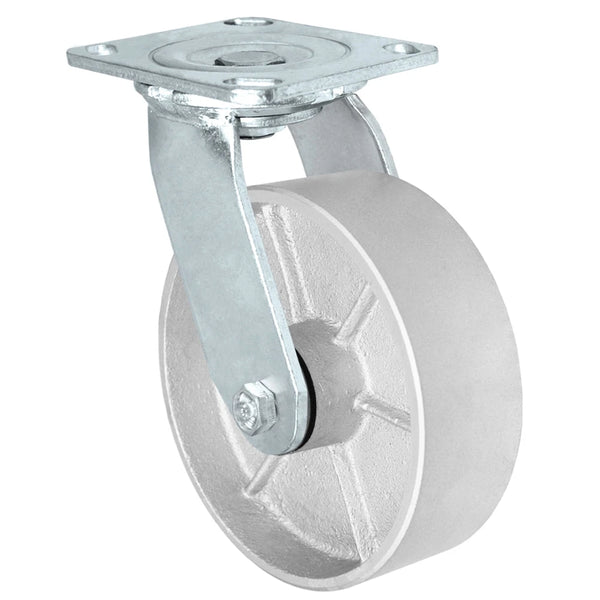

Polyurethane on smooth concrete and epoxy gives the best balance of capacity, floor protection, and rolling efficiency. Use nylon or phenolic on debris-heavy floors where poly would slice. Use rubber for shock absorption on rough or outdoor surfaces. Cast iron is for clean steel/concrete only because it damages most floor finishes. Tread hardness is specified by durometer per ASTM D2240; typical industrial polyurethane runs 85–95 Shore A.

Do industrial casters ship same day?

Yes. Most stocked SKUs ship same day from our Mansfield, TX warehouse if ordered before 12 noon CT, Monday – Friday. Custom rigs and high-capacity kingpinless typically ship within 2–5 business days. Call 844-439-4335 for current lead times on specific part numbers.

Can I get a quote on a large OEM order?

Yes. We supply OEMs across aerospace, automotive, food, medical, and AGV with bulk pricing on 100+ unit orders. Send a part number, qty, and ship-to via the request a quote form or call 844-439-4335 and ask for the OEM team.

What's the difference between industrial casters and commercial casters?

Both terms are used interchangeably, but generally: industrial casters are rated 600+ lb per caster and engineered for manufacturing, OEM, and 24/7 use; commercial casters typically refer to the 200–600 lb range used in food service, retail carts, and light institutional applications. Both are above furniture-grade.

Industrial Casters | Plate and Stem to 40,000 lb

Plate sizes: 2-3/8 x 3-5/8, 2-1/2 x 3-5/8, 3-1/8 x 4-1/8, 4 x 4-1/2Bolt holes: 1-3/4 x 2-15/16 slotted to 2-3/8 x 3-3/8; 1-3/4 x 2-7/8 slotted to 3; 1-3/4 x 2-7/8; 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 1-3/4 to 10 inTread: 13/16 to 3-1/2 inCapacity: up to 4,400 lbStem: threaded

Industrial casters for warehouse carts, racks, dollies, and plant fixtures that outgrew furniture-grade wheels. Browse plate-mount, stem-mount, and kingpinless frames across polyurethane, phenolic, rubber, nylon, and metal treads. Match top-plate size or stem type to your frame, then size capacity from the heaviest corner load with shock margin. Wheel diameter and tread width drive roll effort on epoxy, concrete, and steel plate. Use this hub to compare duty bands before locking a fleet standard.

Shop by caster type

28 types

Capacity shown is per caster (per wheel for wheels).

Industrial Caster Selection Criteria & Engineering Specifications

Selecting the optimal wheel configuration requires balancing structural load boundaries against floor environment mechanics. High-capacity operations require evaluating the durometer hardness rating alongside push-pull friction coefficients to optimize structural cart ergonomics and minimize failure fatigue under continuous stress.

Durometer Ratings

Durometer (ASTM D2240) measures tread hardness. Softer Shore A compounds increase floor grip and shock absorption but raise rolling resistance. Harder Shore A / Shore D compounds roll easier on smooth concrete and carry higher load density, but transmit more vibration.

Ergonomic Push/Pull Dynamics

Push/pull force is driven by start-up breakaway, swivel resistance, floor condition, and bearing type. Larger diameter wheels climb thresholds easier; precision ball bearings usually beat plain or roller bearings on continuous travel.

Floor Protection Realities

Non-marking is not the same as floor-safe under overload. Polyurethane is the usual warehouse compromise on smooth concrete and epoxy. Match tread to the worst floor in the route, not the showroom aisle.

Wheel Material Comparison

Wheel Material	Durometer Scale	Operational Surface Profile	Chemical Resistance

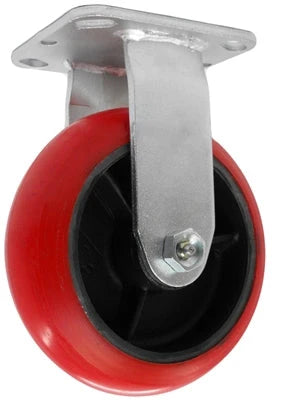

Polyurethane on Iron	95 Shore A	Concrete, Smooth Industrial, Debris-Prone Floors	High (Oils, Greases, Cleaning Solvents)

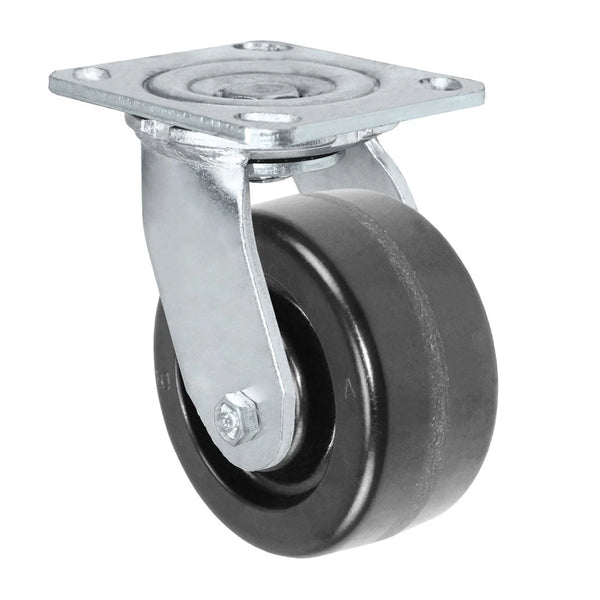

Phenolic Resin	90 Shore D	Smooth Concrete, Hard Stationary Support Tracks	Excellent (Acids, Animal Fats, Standard Fluids)
Moldon Rubber	75 Shore A	Uneven Asphalt, Debris-Heavy Floors, Noise-Sensitive Zones	Moderate (Avoid Petroleum Concentration)

Ranges are typical industry working envelopes for common industrial tread compounds. Always verify the published rating on the specific SKU datasheet before specifying.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"

View All • 21 Plate Sizes

Plate Casters

Stem Casters

Stainless Casters

Ergonomic Casters

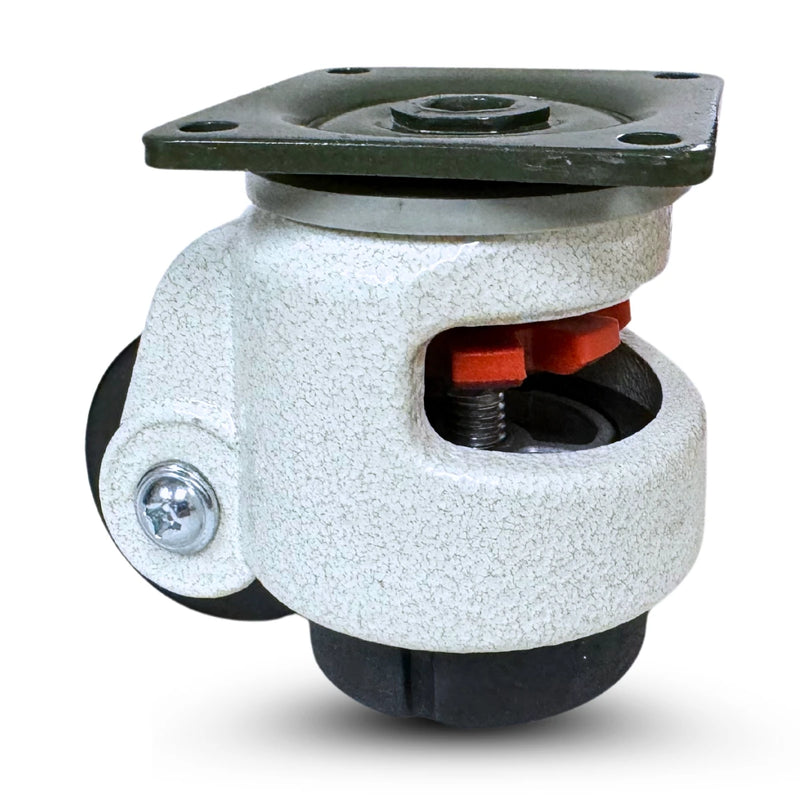

Leveling Casters

Industrial Casters | Plate and Stem to 40,000 lb

Shop by caster type

Core Mount Types

Plate Casters

Stem Casters

Kingpinless Heavy Duty

Dual Wheel Casters

Low Profile Casters

Extreme Duty Casters

Specialty & Environment Casters

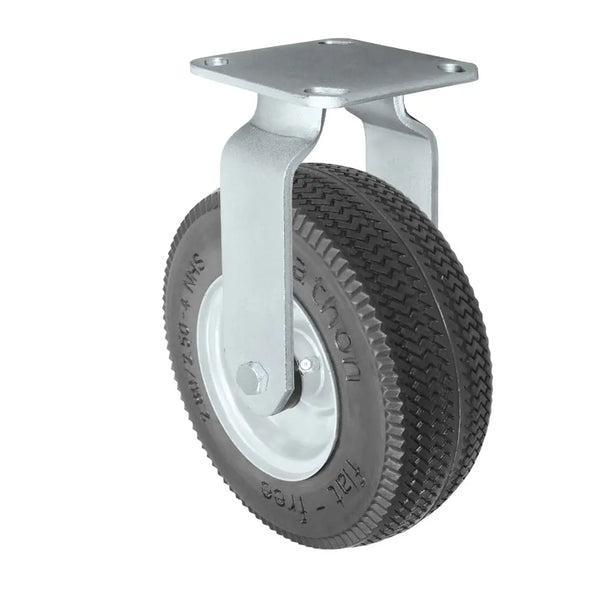

Pneumatic Casters
