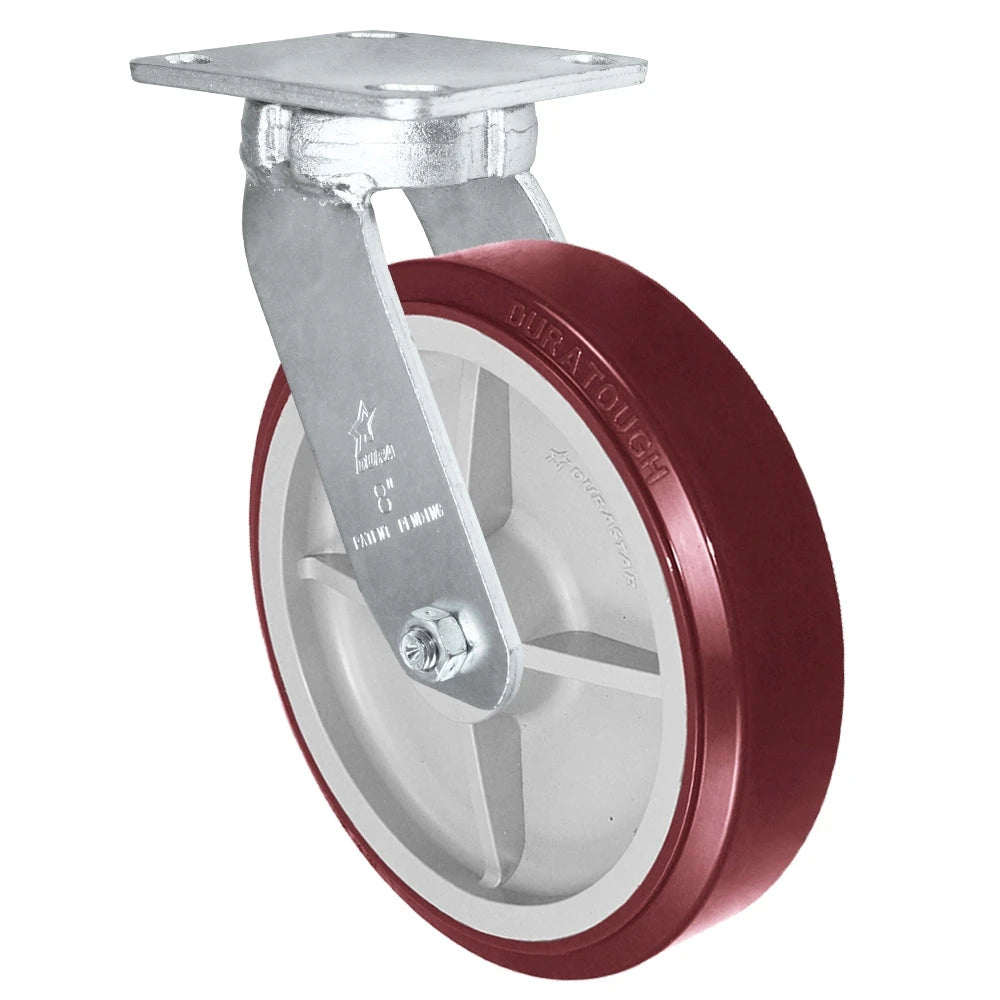

The Kingpinless Heavy Duty 40 Series caster is engineered for demanding environments, offering exceptional performance with a 1000 lb load capacity. Featuring a DURATOUGH Polyurethane on Polyolefin wheel, this caster combines strength and durability with floor protection, making it suitable for use in warehouses, manufacturing facilities, and industrial applications.
With a swivel design that ensures smooth 360° rotation, the Kingpinless caster provides excellent maneuverability, even in tight spaces. Whether you're handling heavy equipment or transporting materials, this caster offers the durability and smoothness you need for safe and efficient movement.
Customize your caster with the option to select from various top plate sizes and bearing options, allowing you to tailor the caster to your specific needs. Designed for long-lasting performance, the Kingpinless Heavy Duty 40 Series is built to handle high-capacity loads while providing superior protection to your floors and equipment.
Choose Kingpinless Heavy Duty 40 Series for reliable, high-performance mobility solutions that stand the test of time.
Invest in the Kingpinless Heavy Duty 40 Series caster for exceptional durability and performance. Experience the difference in quality and reliability for your heavy-duty applications.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Durastar Heavy Duty 40 Series 8" x 2" Polyurethane Swivel Caster is designed to handle demanding environments where heavy loads and smooth maneuverability are essential. With a remarkable 1000 lb load capacity, this caster is engineered to provide unmatched strength and durability, making it ideal for industrial, warehouse, and manufacturing applications.
The Durastar Heavy Duty 40 Series is built to perform under extreme conditions. Whether you're working in a manufacturing facility, a warehouse, or any industrial setting, these casters are engineered to provide reliable, long-lasting performance. Their ability to carry heavy loads while ensuring smooth movement across various floor surfaces is what sets them apart.
With their low rolling resistance and ergonomic design, these casters help reduce user strain and enhance operational efficiency. No matter how intense the workload, the Durastar caster is up to the challenge.
These casters are perfect for a wide range of industrial applications, including:
The Durastar Heavy Duty 40 Series caster offers flexibility with customizable top plate sizes and bearing configurations. Choose the best combination that suits your specific operational requirements. This flexibility ensures that the caster is compatible with a wide variety of equipment and helps optimize performance for different industrial tasks.
Engineered to withstand heavy-duty workloads, the Durastar caster is made with high-quality materials to ensure a long lifespan. Its ergonomic design reduces wear and tear on both the caster and the floor, making it a low-maintenance choice for busy environments. Additionally, its resistance to abrasion and impact makes it perfect for high-traffic areas.
Choose the Durastar Heavy Duty 40 Series for a caster solution that delivers exceptional performance, durability, and ease of use. With its customizable features, superior load capacity, and innovative wheel design, it’s the perfect choice for any industrial application requiring high-quality mobility solutions. Ensure smooth, reliable movement and reduce operational costs with the Durastar caster – your trusted partner in efficiency and productivity.
Upgrade your mobility solutions with the Durastar Heavy Duty 40 Series 8" x 2" Polyurethane Swivel Caster. Discover the unmatched quality and reliability that make it the go-to choice for heavy-duty industrial applications.
This 8" x 2" Duratough Polyurethane Swivel Kingpinless Caster – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

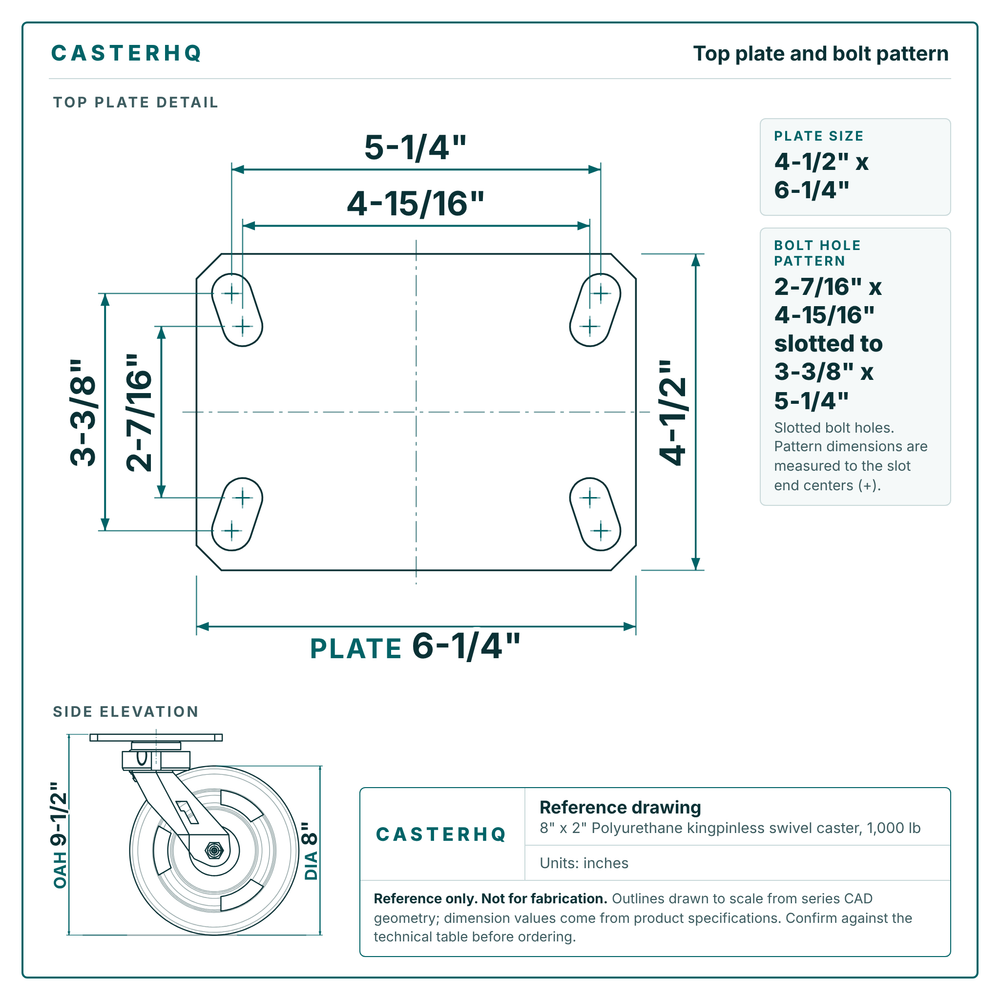

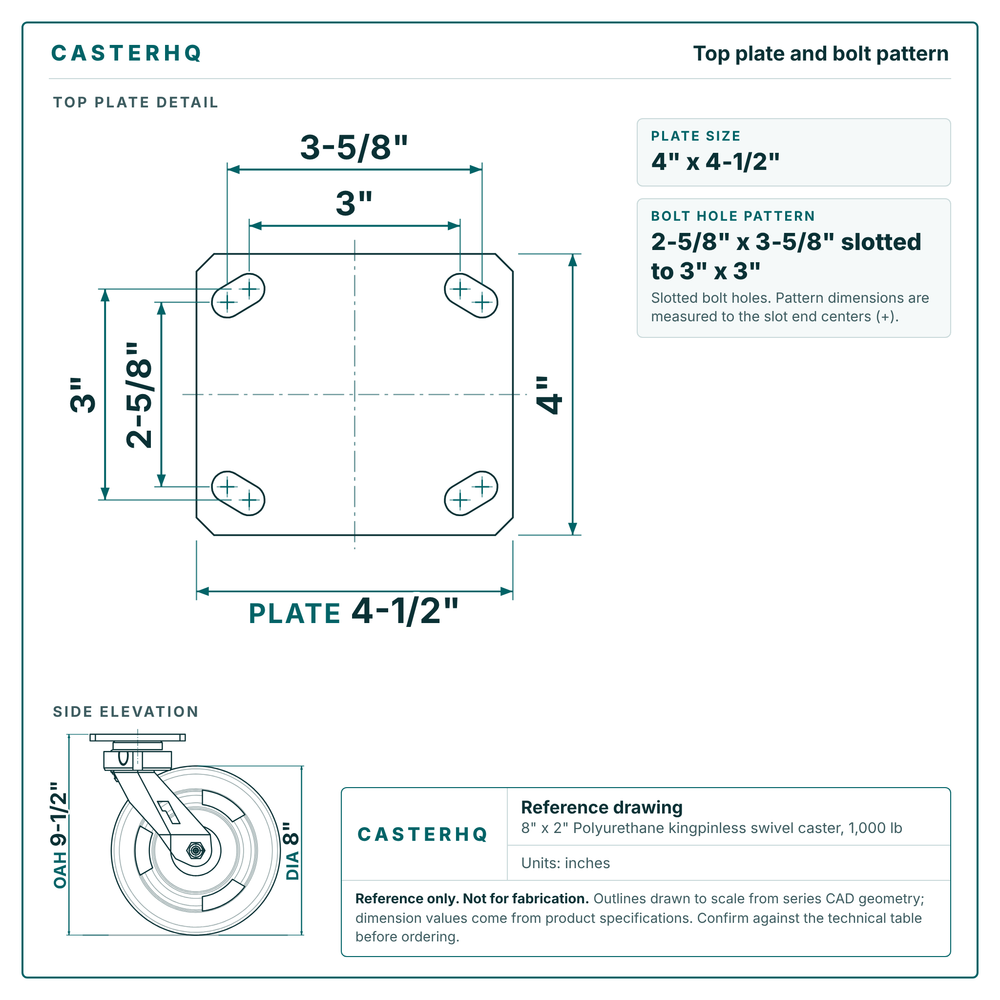

This caster uses a top-plate mount with a 4" x 4-1/2", 4-1/2" x 6-1/4" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -45°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$140.00
| Identification | |
|---|---|
| Part Number / SKU | 40-S-820-PTU |
| Product Series | Durastar 40 Series |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 9-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 6-3/4" |
| Swivel Construction | Kingpinless |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2", 4-1/2" x 6-1/4" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Polyolefin |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -45°F to 180°F |

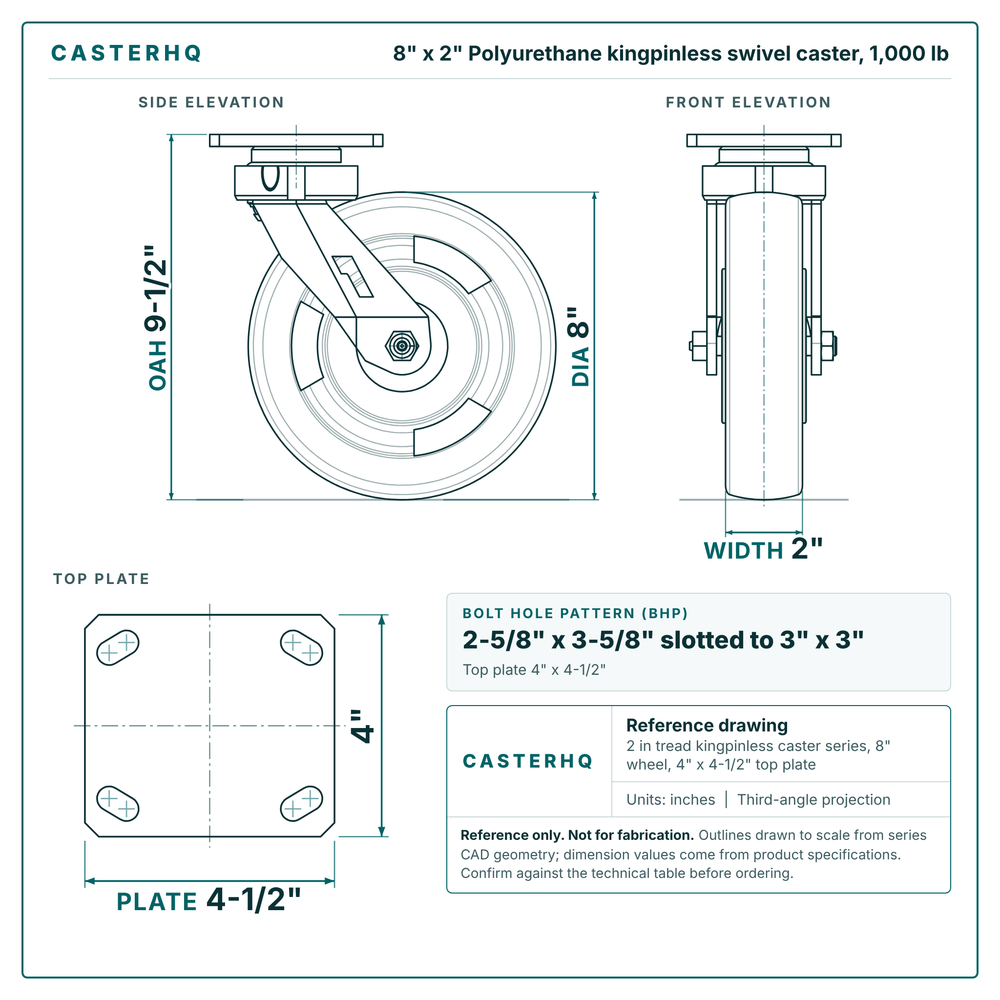

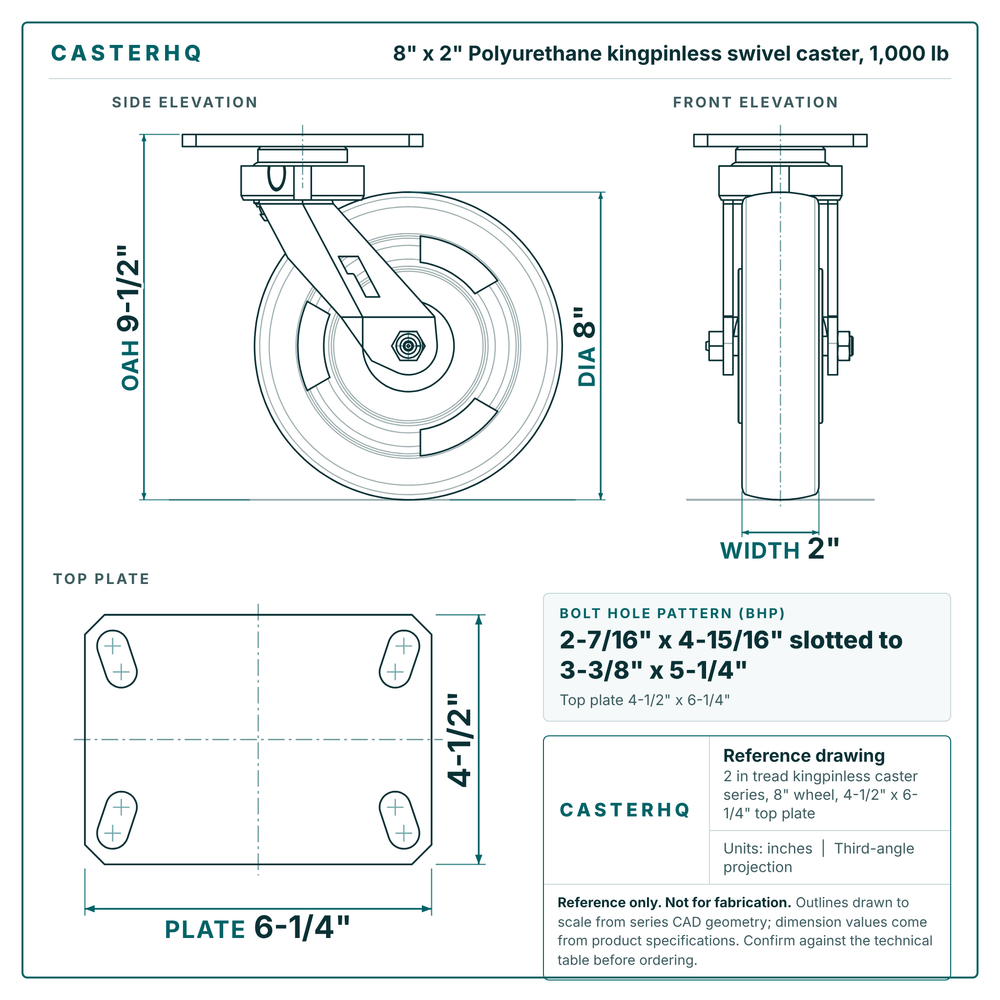

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 8" × 2"Gray Rubber | Swivel | 9-1/2" | $32.50 | View → | |
| 700 lbsLighter duty | 8" × 2"Semi-Steel | — | 9-1/2" | $164.00 | View → | |
| 1000 lbs | 8" × 2"Polyurethane | Swivel | 9-1/2" | $140.00 | Viewing | |
| 1000 lbsSame capacity | 8" × 2"Blue Solid Polyurethane | — | 9-1/2" | $199.00 | View → | |
| 1000 lbsSame capacity | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → |
