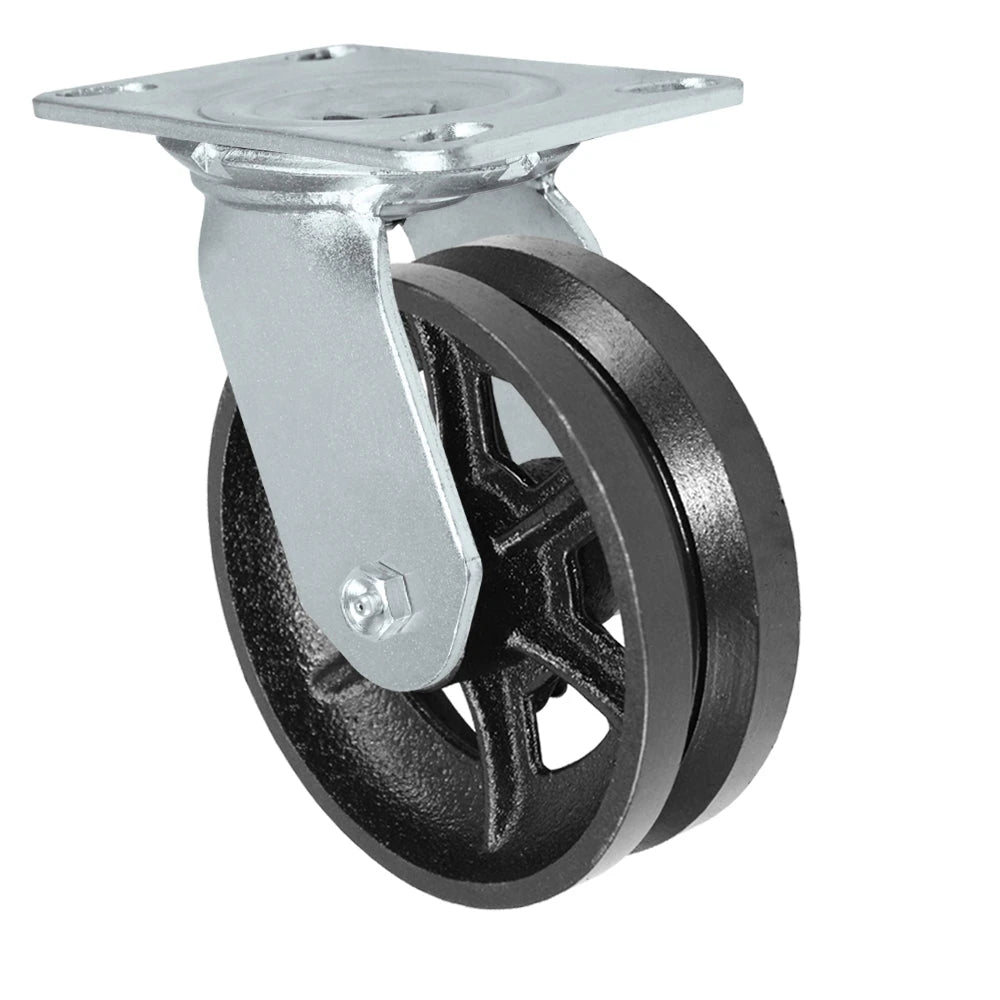

Experience unparalleled performance with the Durastar Medium Heavy Duty 35 Series V-Groove Steel Swivel Caster. Engineered for demanding industrial environments, this 5" x 2" caster boasts a robust 1000 lb capacity, making it ideal for heavy-duty applications. The precision-crafted V-Groove steel wheel offers superior durability and track guidance, while the customizable bearing options allow you to tailor the caster to your specific operational needs.
Ideal for a wide range of industrial and commercial settings, including:
With over three decades of expertise in caster innovation, Durastar is committed to delivering excellence. Our team of experienced engineers and quality control experts ensure that every caster meets the highest standards of performance and safety. The Medium Heavy Duty 35 Series V-Groove Steel Swivel Caster is a testament to our dedication to quality, providing a long-lasting, efficient solution for your most demanding applications.
Elevate your operational efficiency with the Durastar Medium Heavy Duty 35 Series V-Groove Steel Swivel Caster – where cutting-edge engineering meets uncompromising durability.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

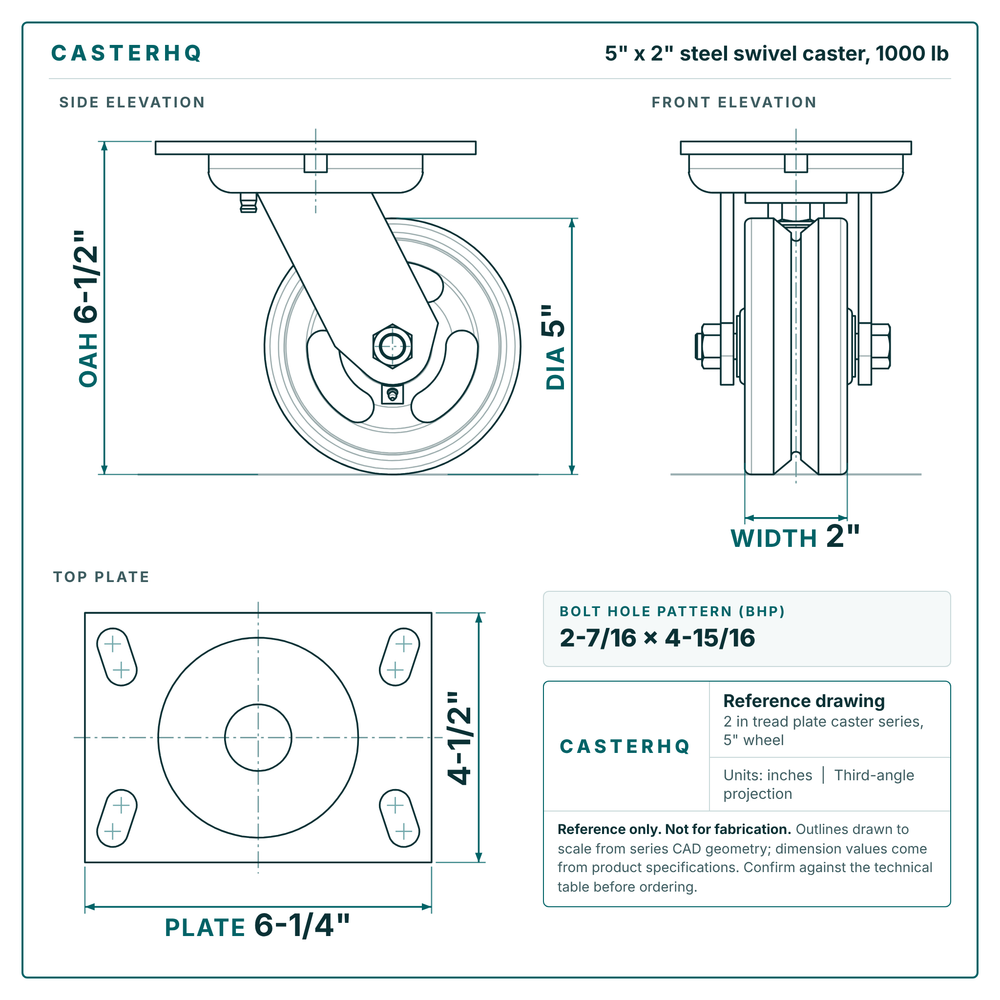

Designed for precision track systems and heavy-load environments, this 5" x 2" V-Groove caster delivers 1,000 lb capacity with cold-forged steel construction. The zinc-plated finish and customizable bearing system ensure reliability in:
| Bearing Type | Best For | Load Capacity |
|---|---|---|
| Roller Bearing | General industrial use | 800 lbs |
| Q34 Precision Ball | High-speed maneuverability | 1,000 lbs |
| ½”/¾” Delrin | Chemical/washdown environments | 1,000 lbs |
Trusted by automotive manufacturers and aerospace facilities. All casters include MADE IN USA certification and technical support from our engineering team.
This 5" x 2" V-Groove Steel Swivel Caster – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

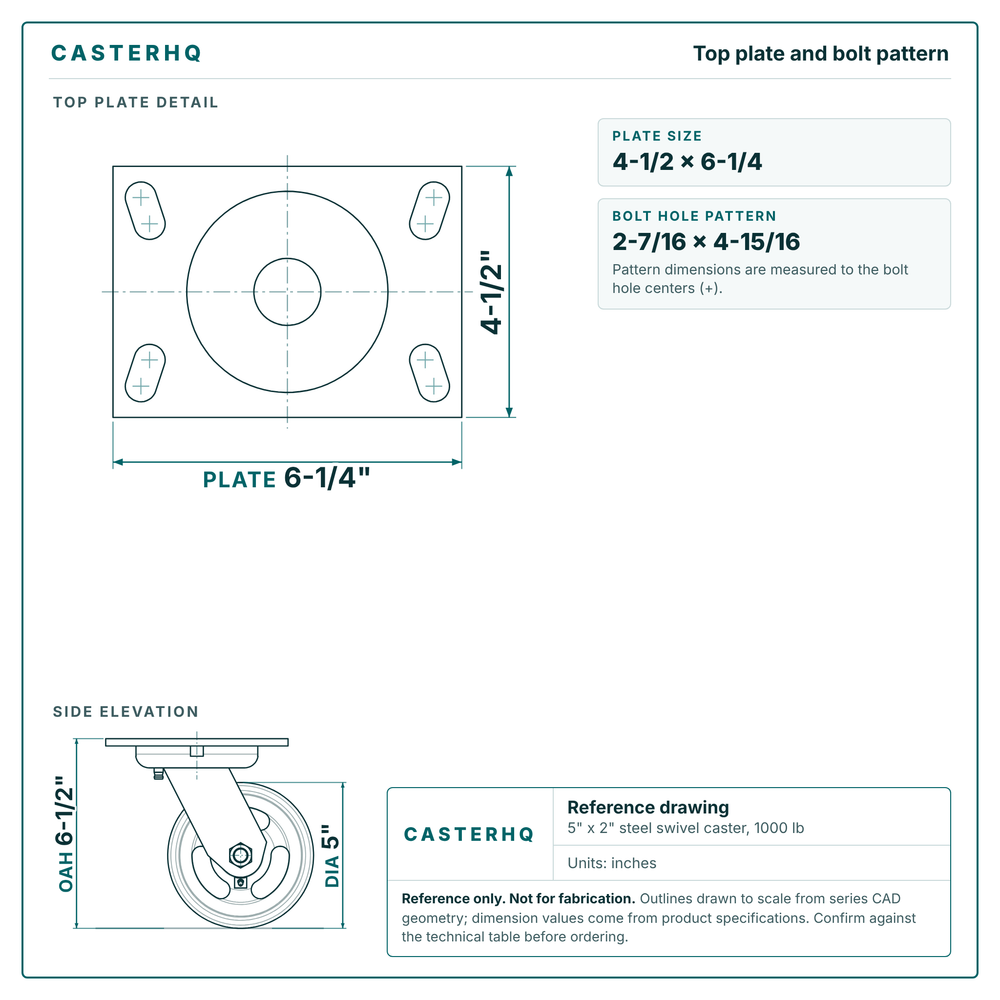

This caster uses a top-plate mount and a 2-7/16" x 4-15/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$23.00
| Identification | |
| Brand | Durastar |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
