Durastar Medium Heavy Duty 35 Series - 8" x 2" Polyurethane on Steel Swivel Caster - 1400 lb Capacity, Choose Bearing Option

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 35-S-820-PU-04

Product Overview

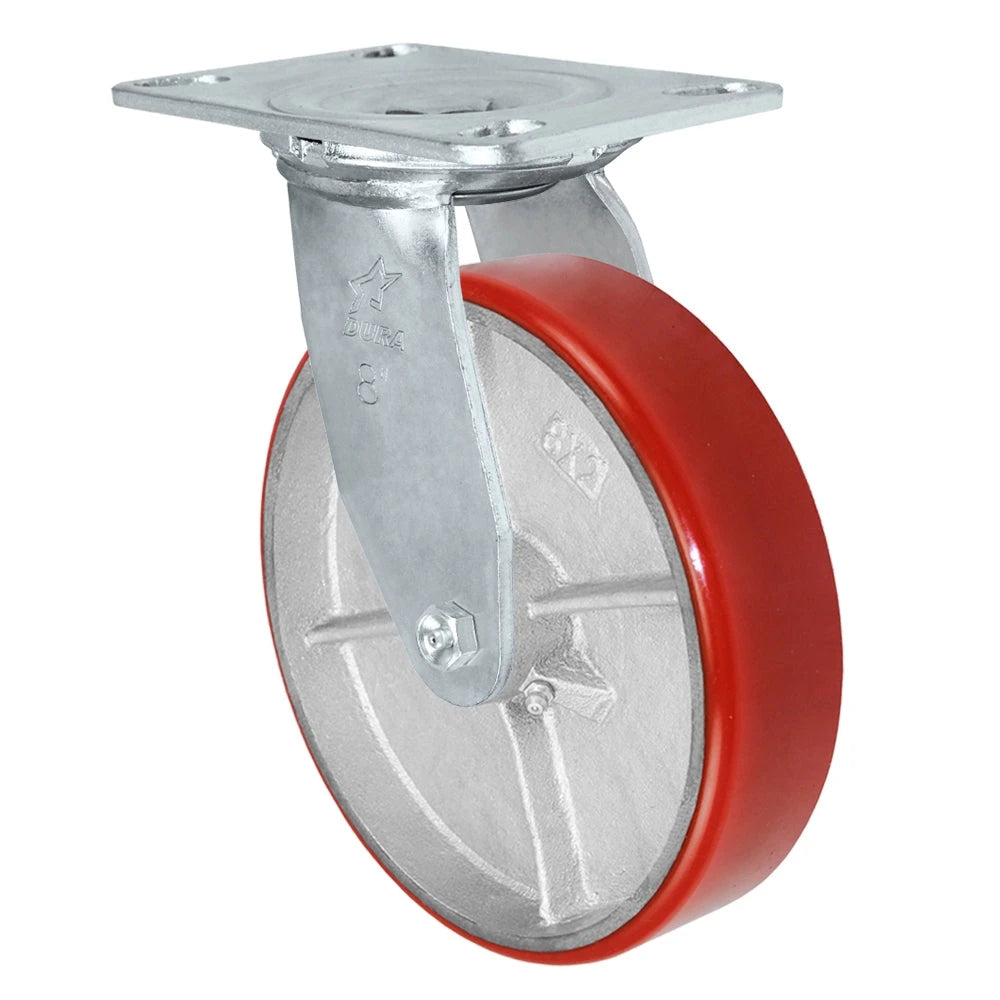

Durastar Medium Heavy Duty 35 Series 8" x 2" Polyurethane on Steel Swivel Caster


Customizable Bearing Options

Tailor the caster's performance to your specific needs with three bearing choices:

  • Roller Bearing: Ideal for heavy loads and high-speed applications
  • Precision Ball Bearing: Offers reduced rolling resistance for effortless maneuverability
  • Delrin Bearing: Provides excellent corrosion resistance, perfect for wet or sanitary environments

Key Features

  • Load Capacity: Supports up to 1400 lbs per caster
  • Wheel Size: 8" diameter x 2" width
  • Caster Type: Swivel for enhanced maneuverability
  • Durable Construction: 1/4" cold forged steel top plate and yoke legs with zinc-plated finish for corrosion resistance
  • Enhanced Mobility: Double ball bearing raceways for smooth swiveling
  • Easy Maintenance: Zerk fitting available for simple lubrication

Industrial Applications

The Durastar 35 Series Polyurethane on Steel Swivel Caster excels in various settings, including:

  • Heavy machinery and automotive assembly lines
  • Warehouses and distribution centers
  • Food processing facilities
  • Industrial material handling equipment
  • Heavy-duty transport carts and dollies
Technical Specs

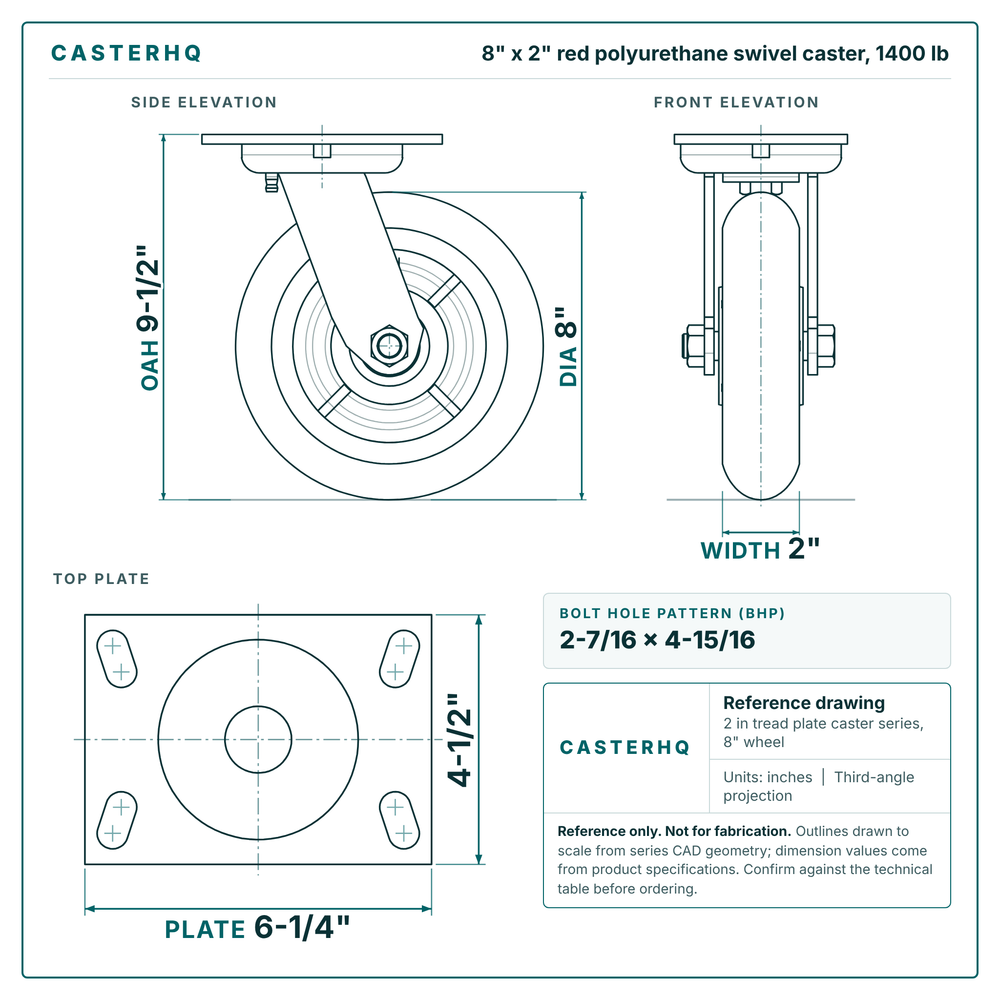

Technical Specifications

  • Wheel Diameter: 8 inches
  • Tread Width: 2 inches
  • Wheel Type: Polyurethane on Steel

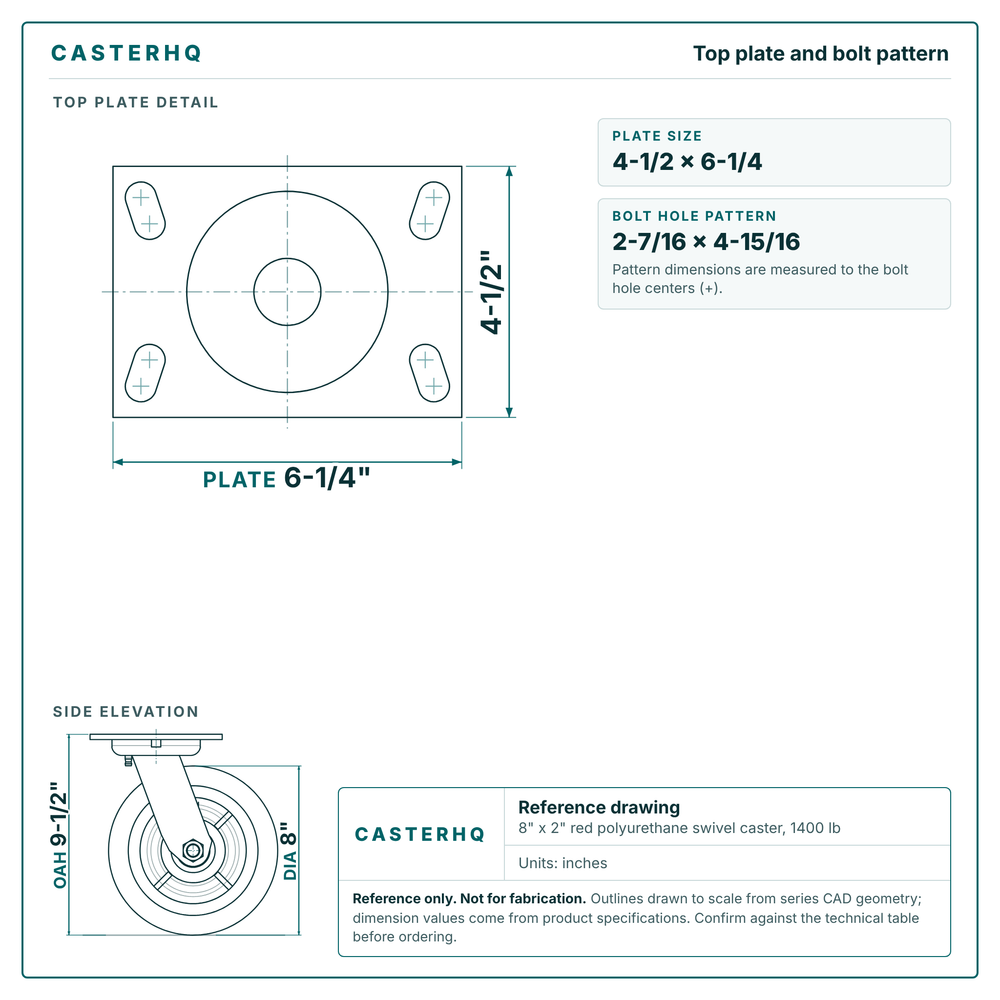

  • Plate Size: 4-½" x 6-¼"
  • Load Capacity: 1400 lbs per caster
  • Swivel Radius: 5-1/2 inches
  • Bearing Options: Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin
  • Caster Type: Swivel
  • Attaching Bolt Diameter: 1/2 inch
  • Bolt Pattern: 2-7/16" x 4-15/16" to 3-⅜" x 5-¼"
Key Features

Top 10 Features: Durastar Medium Heavy Duty 35 Series 8" x 2" Polyurethane on Steel Swivel Caster

  • High Load Capacity: Supports up to 1400 lbs per caster, ideal for heavy-duty industrial applications
  • Premium Wheel Material: 8" x 2" Polyurethane on Steel wheel for superior durability and floor protection
  • Customizable Bearings: Choose from Roller, Precision Ball, or Delrin bearings to suit specific operational needs
  • Chemical Resistance: Withstands most solvents, oils, grease, and water for versatile use in various environments
  • Wide Temperature Range: Operational from -45°F to 180°F, suitable for diverse industrial settings
  • Non-Marking Performance: Ensures clean, mark-free operation on various floor surfaces
  • Quiet Operation: Engineered for smooth and silent rolling, ideal for noise-sensitive areas
  • Corrosion-Resistant Design: Zinc-plated finish on steel components for enhanced durability
  • Versatile Applications: Perfect for heavy machinery, food service equipment, and industrial carts
  • Easy Maintenance: Zerk fitting available for simple lubrication and long-lasting performance
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Durastar Medium Heavy Duty 35 Series 8" x 2" Polyurethane on Steel Swivel Caster


Industrial-Grade Performance

The Durastar Medium Heavy Duty 35 Series 8" x 2" Polyurethane on Steel Swivel Caster represents the pinnacle of industrial mobility solutions. With an impressive 1400 lb capacity per caster, this versatile unit combines durability with superior performance, making it ideal for a wide range of heavy-duty applications in demanding environments.

Advanced Wheel Technology

  • Material: High-grade polyurethane tread bonded to a steel core for unmatched strength and durability
  • Resistance: Withstands chemicals, oils, grease, water, and most solvents
  • Performance: Non-marking, smooth rolling, and quiet operation
  • Temperature Range: Operational from -45°F to 180°F
  • Tread Thickness: 10mm thick polyurethane tread for extended wear life

Customizable Bearing Options

Choose from three bearing types to suit your specific operational needs:

  • Roller Bearing: Ideal for heavy loads and high-speed applications
  • Precision Ball Bearing: Offers reduced rolling resistance for effortless maneuverability
  • Delrin Bearing: Provides excellent corrosion resistance, perfect for wet or sani

Industrial Applications

The Durastar 35 Series Polyurethane on Steel Swivel Caster excels in various settings, including:

  • Manufacturing plants and assembly lines
  • Warehouses and distribution centers
  • Food processing facilities
  • Material handling equipment
  • Heavy-duty transport carts and dollies

Why Choose Durastar?

  • Over three decades of caster innovation and expertise
  • Rigorous testing: 150,000+ rotation cycles at maximum load
  • Comprehensive warranty for peace of mind
  • Commitment to quality and user-centric design
