Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

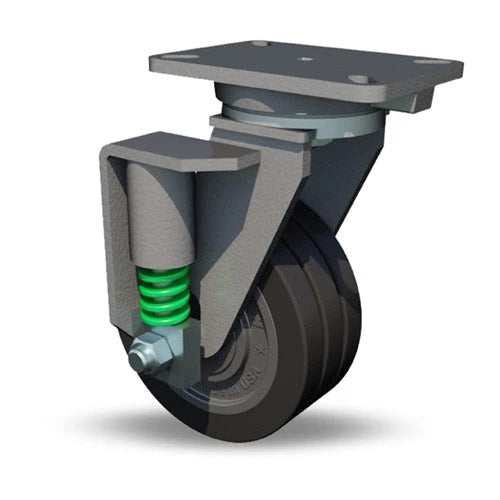

Introducing the S-SPCH-13SWF70D-1 Hamilton Spring Loaded Champion Swivel Caster - a top-tier choice for industries requiring durable and reliable casters. Featuring a 10" x 3" UltraGlide XC Polyurethane (85A) wheel mounted on robust Cast Iron, this caster is designed for longevity and optimal performance.
Besides its impressive build, the caster is equipped with 3/4" Sealed Precision Ball Bearings ensuring smooth movement even under heavy loads. Ideal for both industrial and commercial environments.
Grab this premium Hamilton Swivel Caster while stocks last. Perfect for those looking for high-quality, long-lasting caster solutions.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Elevate your mobility solutions with the Hamilton S-SPCH-13SWF70D-1 Swivel Caster. Designed to meet industry-leading standards, this caster embodies a combination of functionality, durability, and innovative engineering.
The caster is built around a 10-inch UltraGlide XC Polyurethane wheel, known for its smooth glide and superior floor protection. Polyurethane on Cast Iron construction ensures resistance against wear and tear, making it suitable for both light and heavy-duty applications.
The caster's core is constructed with robust cast iron. This provides not only an aesthetic appeal but also enhances the weight-bearing capacity, ensuring long-lasting performance even in demanding environments.
Featuring 3/4" Sealed Precision Ball Bearings, the Hamilton caster ensures smooth and effortless movement. The sealed design protects the bearings from dust and debris, reducing maintenance requirements and prolonging the caster's life.
Don't compromise on your equipment's mobility. With the Hamilton S-SPCH-13SWF70D-1 Swivel Caster, you get a perfect blend of quality, durability, and innovation. Embrace top-tier performance and optimize your operations today!
This Hamilton S-SPCH-13SWF70D-1 10" x 3" UltraGlide XC Swivel Spring Loaded Caster is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

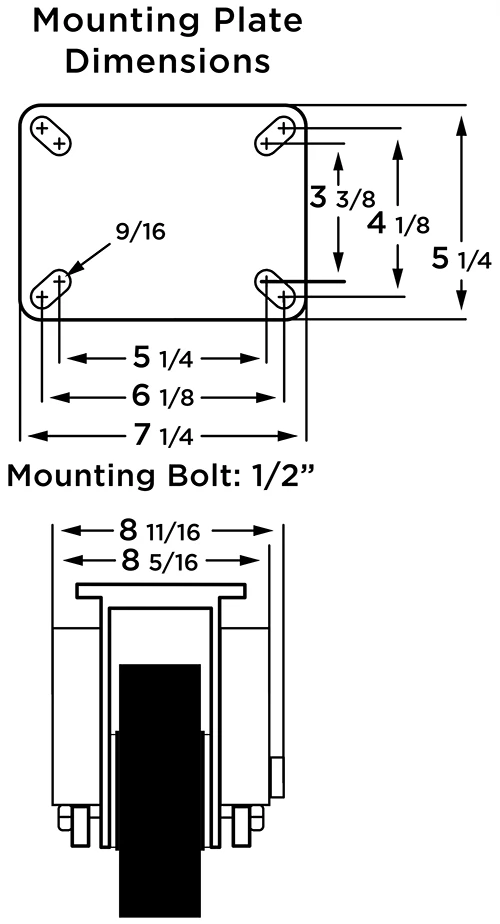

This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -50°F to 200°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 14-1/4". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,314.00
| Identification | |
|---|---|
| Part Number / SKU | S-SPCH-13SWF70D-1 |
| Replacement Wheel Part No | W-1030-SWF70D-3/4 |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 10" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 14-1/4" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-5/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 5-1/4" x 7-1/4" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Wheel Color | Black Poly on Alum Center |
| Bearing Type | Precision Sealed Ball Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -50°F to 200°F |
| Unit Weight | 40 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 650 lbsLighter duty | 10" × 3" | Swivel | 12-3/16" | $80.00 | View → | |
| 650 lbsLighter duty | 10" × 3" | Swivel with Brake + brake | 12-3/16" | $90.00 | View → | |
| 800 lbs | 10" × 3"Polyurethane | Swivel | 14-1/4" | $1,314.00 | Viewing | |
| 1040 lbsHeavier duty | 10" × 3"Cast Iron | Rigid | 12-1/2" | $439.00 | View → | |
| 1040 lbsHeavier duty | 10" × 3"Cast Iron | Swivel | 12-1/2" | $842.00 | View → |
