Hamilton 4000 lbs Swivel Caster | 10" V-Grooved Steel Wheel

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
10" x 3"
Capacity
4000 lbs
Overall Height
12-1/2"
Plate Size
5-1/4" x 7-1/4"
BHP
3-3/8" x 5-1/4"
Bolt
1/2"
Made to Order · 4-6 Weeks Lead
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview

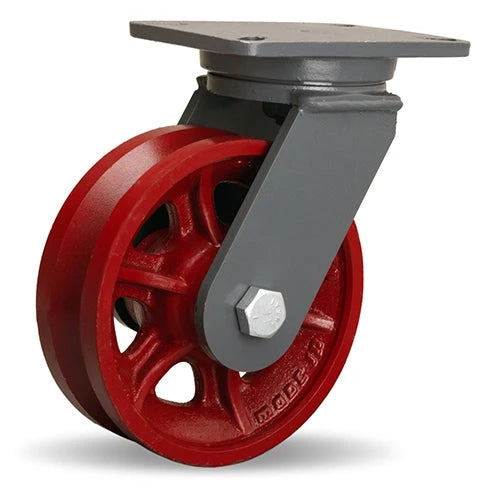

Hamilton 4000 lbs Load Capacity Swivel Caster - Champion Series

Introducing the S-CH-13FVT, part of the renowned Hamilton Champion Series. Crafted for maximum performance and durability:

  • Load Capacity: Robust 4000 lbs for heavyweight applications.
  • Wheel Dimensions: 10" x 3" ensuring stability and smooth mobility.
  • Material: Premium forged steel with V-Grooved design for enhanced grip and reduced wear.
  • Bearings: 3/4" precision tapered roller bearings, guaranteeing smoother movement and increased lifespan.
Ideal for industrial, manufacturing, and heavy-duty tasks where precision and strength are paramount. Shop now and experience the difference of Hamilton's unmatched engineering.
Key Features

Top 10 Features of Hamilton S-CH-13FVT Swivel Caster

  1. Brand Excellence: Trusted Hamilton Champion Series reputation.
  2. High Load Capacity: Supports a robust 4000 lbs effortlessly.
  3. Wheel Size: Features a 10" x 3" dimension for stable movement.
  4. Forged Steel: Crafted from premium forged steel for durability.
  5. V-Grooved Design: Wheel designed with a V-groove for better grip & reduced wear.
  6. Quality Bearings: Equipped with 3/4" precision tapered roller bearings.
  7. Smooth Mobility: Bearings ensure fluid movement in demanding conditions.
  8. Industrial Application: Perfect for manufacturing & industrial tasks.
  9. User-Friendly: Designed for both ease-of-use and performance.
  10. Durable Build: Guaranteed long lifespan with minimal maintenance.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

Hamilton Champion Series Swivel Caster - S-CH-13FVT

Overview

The Hamilton S-CH-13FVT is part of the prestigious Champion Series, renowned for its exceptional performance and durability in industrial environments. Designed with precision and functionality in mind, this swivel caster offers robust support for heavyweight applications while ensuring smooth, hassle-free operations.

Key Features

  • Engineered with a Tapered Roller Bearing for enhanced rotation.
  • V-Grooved Wheel Type ensures better grip and reduced wear.
  • Constructed with Integral Forged Kingpin for superior rigidity.
  • Boasts a pristine Platinum Powder Finish on the caster and a protective Clearcoat on the wheel.
  • Optimal for industrial usage, thanks to its durable steel wheel core and metal wheel tread.

Specifications

Applications

Hamilton's Champion Swivel Caster excels in a variety of industrial and manufacturing environments. Whether you're moving heavy machinery, facilitating transport in warehouses, or setting up exhibition displays, the S-CH-13FVT is your reliable partner for efficient and secure movement.

Explore the superior engineering and robust design of the Hamilton S-CH-13FVT Swivel Caster. Invest in reliability, invest in Hamilton.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton S-CH-13FVT 10" x 3" Forged Steel Swivel Caster – 4000 lb is rated to 4000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Steel wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

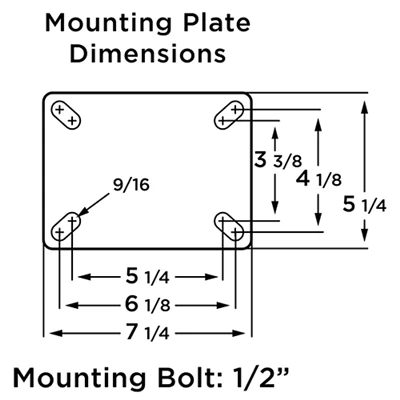

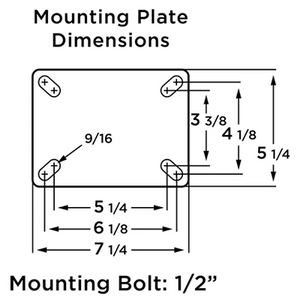

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for -30°F to 320°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Steel wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 12-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Hamilton S-CH-13FVT 10
Hamilton S-CH-13FVT 10" x 3" Forged Steel Swivel Caster – 4000 lb | CasterHQ

$811.00

Technical Specifications

Specifications

Identification
Part Number / SKUS-CH-13FVT
Replacement Wheel Part NoW-1030-FVT-3/4
Core
Load Capacity4000 lbs
Wheel Diameter10"
Wheel Width3"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).12-1/2"
Rig TypeSwivel
BrakeNo Brake
Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle.2-1/2"
Mounting
Mount StylePlate
Plate Size5-1/4" x 7-1/4"
Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.3-3/8" x 5-1/4"
Recommended Mounting Bolt1/2"
Wheel
Wheel MaterialSteel
Wheel Core MaterialSteel
Wheel ColorClearcoat
Bearing TypeTapered Roller Bearing
Construction
Frame / FinishPlatinum Powder
Temperature Range-30°F to 320°F
Unit Weight48 lbs
Compliance
Buy AmericanYes
Reference Dimensions
12-1/2" OVERALL HEIGHT 10" x 3" WHEEL DIA x W 5-1/4" x 7-1/4" PLATE
Overall Height12-1/2"
Wheel10" x 3"
Top Plate5-1/4" x 7-1/4"
Bolt Pattern3-3/8" x 5-1/4"
Wheel MaterialSteel
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 4000 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
MountPlate
Plate Size5-1/4" x 7-1/4"
Bolt Pattern3-3/8" x 5-1/4"
Rig TypeSwivel
BrakeNo Brake
Replacing an existing caster? Match the bolt pattern first, then wheel size · more 5-1/4" x 7-1/4" plate casters →
