Key Features:
Discover the robustness and reliability of Hamilton's Rigid Caster. The R-4010-AT model is engineered with Ace-Tuf Rubber to ensure smooth operations even in challenging environments. Whether you're aiming for enhanced mobility in industrial settings or need a durable caster for everyday use, this product promises unmatched performance.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

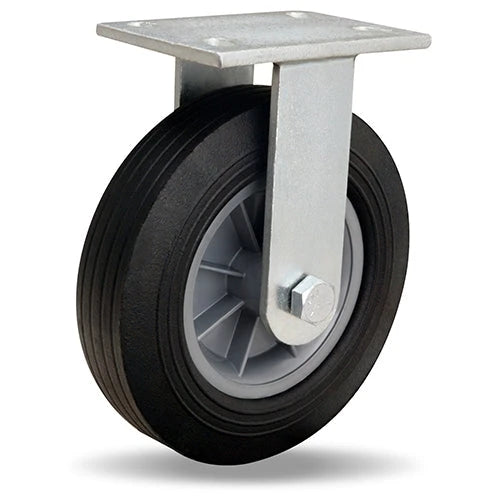

The Hamilton R-4010-AT Rigid Caster is a premium offering from Hamilton, known for its quality and durability. Engineered for maximum load capacity and ease of movement, this caster stands out in both functionality and design.
The R-4010-AT Rigid Caster is meticulously designed with the following dimensions:
Built to last, the R-4010-AT Rigid Caster boasts:
With its combination of design, functionality, and material quality, the Hamilton R-4010-AT Rigid Caster offers an unbeatable solution for your mobility needs.
This Hamilton R-4010-AT 10" x 2 3/4" Ace-Tuf Rubber Rigid Caster – 550 lb is rated to 550 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyolefin wheel with a 2-3/4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyolefin wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 11.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$132.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 2-3/4" |
| Overall Height | 11.5" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 550 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
10" Pneumatic Rigid Caster – 350 lb | CasterHQ
10" x 3-1/2" · 350 lbs
$77
10" Rigid Pneumatic Caster Rig 4" x 4-1/2" Top Plate – 350 lb | CasterHQ
10" · 350 lbs
$23

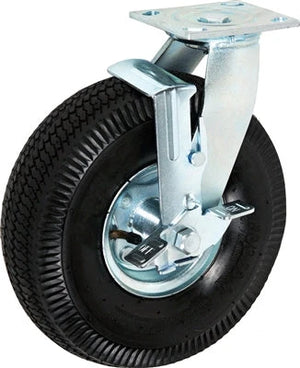

10" 4 Ply Air Filled Swivel Pneumatic Caster – 350 lb | CasterHQ
