Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

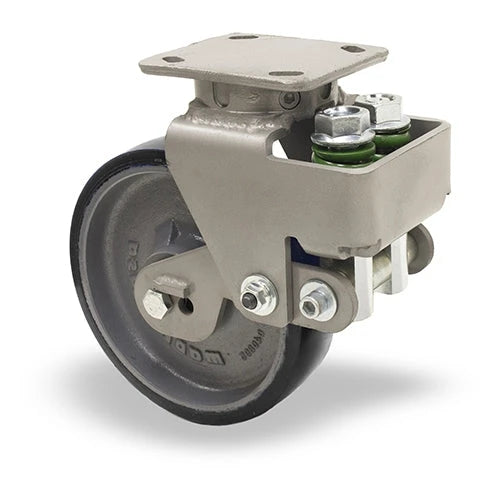

For those in search of the best aerospace swivel caster, the S-AEZFHS-8DB70-1 Hamilton Aerospace Spring Loaded Heavy Service Swivel Caster stands out. Built with an impressive 8" x 2" Duralast XC Polyurethane wheel, this product ensures peak performance and longevity. Coupled with 1/2" sealed precision ball bearings, experience seamless aerospace operations with Hamilton.
Hamilton Aerospace leads in advanced caster solutions. This Heavy Service caster is testament to our commitment to quality and resilience. The Duralast XC Polyurethane material offers both durability and exceptional load-bearing capabilities, ideal for rigorous aerospace applications.
Selecting the perfect caster for aerospace tasks can be challenging. Let Hamilton's expert team assist you. Contact us during business hours for recommendations and secure the best caster for your specific requirements.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Hamilton Aerospace S-AEZFHS-8DB70-1 is more than just a swivel caster. Crafted for the high standards of the aerospace industry, it embodies cutting-edge engineering and superior materials. Whether it's the resilience of the Duralast XC Polyurethane wheel or the precision of its sealed bearings, this product is a paragon of innovation.
When you opt for Hamilton, you're investing in quality, durability, and industry-leading innovation. Our S-AEZFHS-8DB70-1 swivel caster is designed to handle challenging aerospace demands, ensuring you get value for your investment and a product that stands the test of time.
Need guidance or have questions about our product? Hamilton's expert team is always ready to assist. Reach out during business hours for in-depth insights and recommendations tailored to your requirements.
This Hamilton S-AEZFHS-8DB70-1 8" x 2" Duralast XC Swivel Spring Loaded Caster – 1325 lb is rated to 1325 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

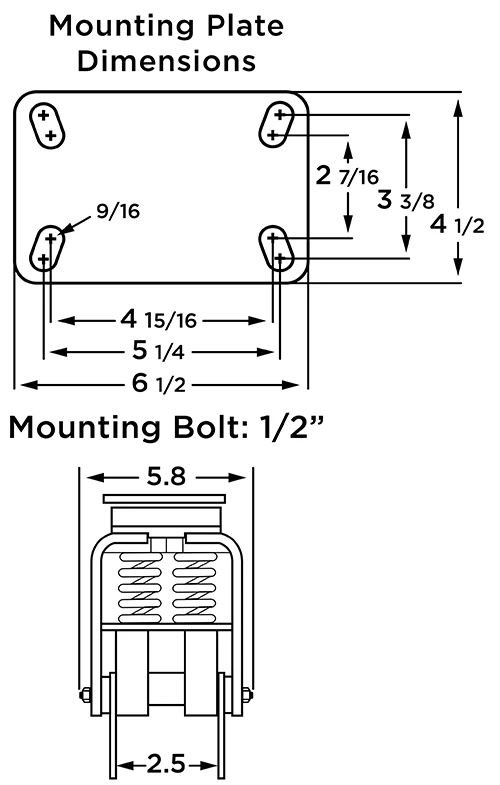

This caster uses a top-plate mount with a 4-1/2" x 6-1/2" plate and a 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -5°F to 160°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 10-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,218.00
| Identification | |
|---|---|
| Part Number / SKU | S-AEZFHS-8DB70-1 |
| Replacement Wheel Part No | W-820-DB70-1/2 |
| Core | |
| Load Capacity | 1325 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 10-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4-1/2" x 6-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Wheel Color | Black Poly on Gray Center |
| Bearing Type | Precision Sealed Ball Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -5°F to 160°F |
| Unit Weight | 24 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1250 lbsLighter duty | 8" × 2" | Swivel | 9-1/2" | $16.00 | View → | |
| 1250 lbsLighter duty | 8" × 2"Polyurethane | — | 9-1/2" | $89.00 | View → | |
| 1325 lbs | 8" × 2"Polyurethane | Swivel | 10-1/2" | $1,218.00 | Viewing | |
| 1400 lbsHeavier duty | 8" × 2"Phenolic | Rigid | 9-1/2" | $36.00 | View → | |
| 1400 lbsHeavier duty | 8" × 2"Phenolic | Swivel | 9-1/2" | $84.00 | View → |
