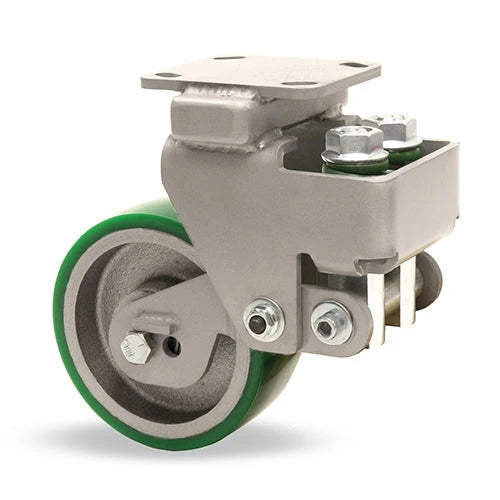

Elevate your aerospace setup with the S-AEZFHS-5DB-1 Hamilton Aerospace Spring Loaded Heavy Service Swivel Caster. This top-of-the-line caster, engineered specifically for the aerospace industry, features a robust 5" x 2" Duralast Polyurethane (95A) on Cast Iron Wheel, ensuring maximum durability and high-performance. Paired with 1/2" sealed precision ball bearings, it offers smooth and effortless maneuvering for demanding aerospace operations.
Hamilton's aerospace casters are a preferred choice for industry professionals seeking unmatched durability and reliability. Our Heavy Service range boasts state-of-the-art materials, such as the Duralast Polyurethane wheel, which ensures efficient load management and longevity. Coupled with the precision of Hamilton's Spinfinity series, expect stellar performance with minimal maintenance.
Navigating aerospace caster options? The Hamilton Experts are here to guide you. Reach out to us on weekdays between 8 am - 5 pm for personalized recommendations tailored to your aerospace needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Hamilton Aerospace Swivel Caster was born out of the need for a heavy-duty caster tailored to the exacting standards of the aerospace industry. Drawing from Hamilton's rich legacy, this product is a blend of innovation, precision, and durability.
The centerpiece is its 5" x 2" Duralast Polyurethane (95A) on Cast Iron Wheel. This material choice ensures resilience against heavy loads and environmental challenges commonly faced in aerospace settings. The 1/2" sealed precision ball bearings are a testament to Hamilton's commitment to smooth operations and longevity.
This caster, part of the renowned Spinfinity series, promises a lifespan longer than typical industry standards. Maintenance is minimal, thanks to the state-of-the-art materials and design considerations. Its spring-loaded mechanism optimizes load management, further enhancing the caster's efficiency.
When you invest in the S-AEZFHS-5DB-1 caster, you're not just buying a product; you're gaining a partnership. The Hamilton team is available for all your queries, ensuring that you leverage the full potential of this top-tier aerospace caster.
In an industry where precision and reliability are paramount, Hamilton's S-AEZFHS-5DB-1 Swivel Caster stands out as the benchmark. Designed meticulously for high-end aerospace tasks, it's the epitome of quality and performance.
This Hamilton S-AEZFHS-5DB-1 5" x 2" Duralast Spring Loaded Swivel Caster – 1050 lb is rated to 1050 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

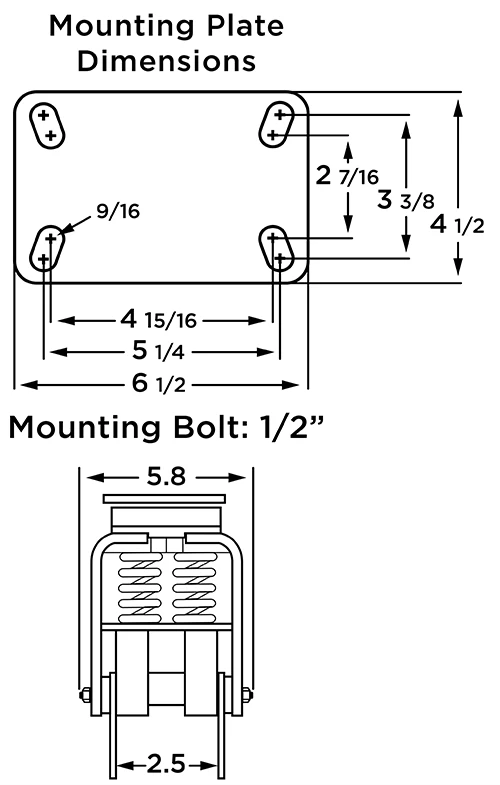

This caster uses a top-plate mount with a 4-1/2" x 6-1/2" plate and a 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -5°F to 160°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,147.00
| Identification | |
|---|---|
| Part Number / SKU | S-AEZFHS-5DB-1 |
| Replacement Wheel Part No | W-520-DB-1/2 |
| Core | |
| Load Capacity | 1050 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 8" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-9/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4-1/2" x 6-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Wheel Color | Green Poly on Gray Center |
| Bearing Type | Precision Sealed Ball Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -5°F to 160°F |
| Unit Weight | 20 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 5" × 2"Phenolic | Swivel | 6-1/2" | $28.00 | View → | |
| 1000 lbsLighter duty | 5" × 2"Polyurethane | — | 6-1/2" | $72.00 | View → | |
| 1050 lbs | 5" × 2"Polyurethane | Swivel | 8" | $1,147.00 | Viewing | |
| 1100 lbsHeavier duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $36.00 | View → | |
| 1100 lbsHeavier duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $49.00 | View → |
