Designed with unparalleled precision and engineering, the Hamilton Champion caster guarantees a remarkable load capacity of 3200 lbs. Ideal for high-demand industrial environments, it remains a top choice for those aiming for reliability and robust performance.
For a caster that delivers on all fronts, trust in the Hamilton S-CHS-83LPSB Swivel Caster.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

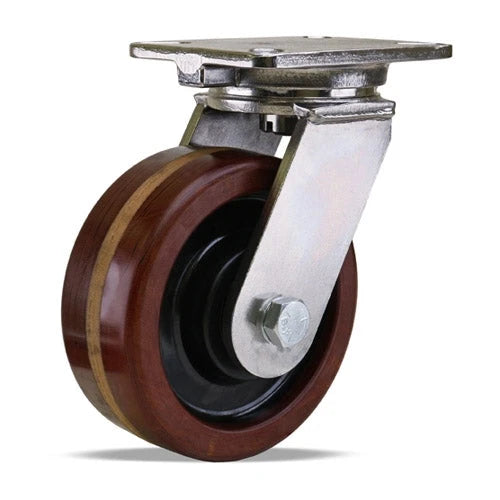

This Hamilton 8" x 3" Laminated Plastex Swivel Stainless Caster – 3200 lb is rated to 3200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 3" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 10.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,347.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 3" |
| Overall Height | 10.5" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 3200 lbs |
| Temp Range | Up to 250°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
8" x 3" Polyurethane on Steel Rigid Caster – 3500 lb | 5-1/4" x 7-1/4" Top Plate
8" x 3" · 3500 lbs
$353
8" x 3" Polyurethane on Steel Swivel Caster – 3500 lb | CasterHQ
8" x 3" · 3500 lbs
$252
Albion 470PF08528S 8"x3" Poly-on-Iron Swivel Kingpinless Caster – 3500 lb | CasterHQ
8" x 3" · 3500 lbs
$343
View all 8′ x 3′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2800 lbsLighter duty | 8" × 3"Cast Iron | Rigid | 10.5" | $204.00 | View → | |
| 2800 lbsLighter duty | 8" × 3"Cast Iron | — | — | $297.00 | View → | |
| 3200 lbs | 8" × 3"Phenolic | Swivel | 10.5" | $1,347.00 | Viewing | |
| 3500 lbsHeavier duty | 8" × 3"Polyurethane | Rigid | 10-1/2" | $353.00 | View → | |
| 3500 lbsHeavier duty | 8" × 3"Polyurethane | Swivel | 10-1/8" | $252.00 | View → |
