The Hamilton Caster CH-10DB is a remarkable extra heavy-duty caster designed to tackle the most demanding industrial applications with ease.

Hamilton Champion Swivel Caster with 10" x 2 1/2" Duralast Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearing - CasterHQ

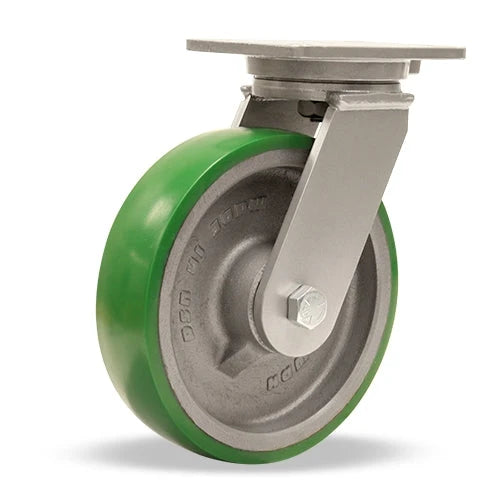

Hamilton Champion Swivel Caster with 10" x 2 1/2" Duralast Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearing

Quantity Discounts:

5% Off: 50-99 pcs
10% Off: 100-199 pcs
15% Off: 200+ pcs

Volume pricing applied automatically at checkout

.price-ui--loading { display: block !important; opacity: 1 !important; }

$446.00 - $559.68

Status: In Stock

Ships within 1–2 business days

PRODUCT CODE: S-CH-10DB

Technical Specs

Swivel or Rigid caster

Swivel

Load Capacity (lbs.) @ 3 mph

2500

Wheel Diameter (in.)

Wheel Face (in.)

2.5

Overall Height (in.)

12.5

Swivel Offset (in.)

2.5

Mounting Plate (in.)

5 1/4 x 7 1/4

Bolt Hole 1 (in.)

3 3/8 x 5 1/4

Bolt Hole 2 (in.)

4 1/8 x 6 1/8

Mounting Bolt (in.)

0.5

Caster Color/Finish

Platinum Powder

Wheel Type

Duralast

Wheel Color/Finish

Green Poly on Gray Center

Replacement Wheel

W-1025-DB-3/4

Wheel Material @ Tread

Polyurethane

Shipping Weight (lbs.)

Caster Rig Type

Integral Forged Kingpin

Note

The four-position swivel lock (-4SL) and swivel seals (-SS) cannot be ordered together on this specific caster.

Mounting Plate Length (in.)

7.25

Mounting Plate Width (in.)

5.25

Wheel Core Material

Cast Iron

Key Features

Extra heavy-duty-caster designed for demanding industrial applications

Heavy-duty-steel construction for exceptional load-bearing capacity

Load-rating of up to 2,500 pounds

4-inch-wide polyurethane wheel for excellent traction and shock absorption

Precision-machined wheel with precision ball bearing for effortless swiveling

Versatile-mounting options with a top plate for easy installation

360-degree-swivel for excellent maneuverability in tight spaces

Ideal-for transporting heavy machinery, equipment, and industrial materials

Product Overview

Hamilton Champion Swivel Caster with 10" x 2 1/2" Duralast Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearing

The Hamilton Caster CH-10DB-is a remarkable extra heavy-duty caster designed to tackle the most demanding industrial applications with ease. Built to deliver unmatched durability and strength, this champion caster combines rugged construction with superior performance to effortlessly handle heavy loads.

Crafted-with precision and built to last, the CH-10DB caster features a robust design that ensures reliable performance in the toughest environments. Its heavy-duty steel construction provides exceptional load-bearing capacity, allowing it to support substantial weights effortlessly. With a load rating of up to 2,500 pounds, this caster is perfect for handling large machinery, equipment, and industrial materials.

The CH-10DB caster-is equipped with a 4-inch wide wheel made of premium polyurethane material, which offers excellent traction and helps absorb shocks and vibrations. This ensures smooth and stable movement, even on uneven surfaces or rough terrain. The wheel is precision machined and equipped with a precision ball bearing, ensuring effortless swiveling and maneuverability, reducing the amount of force required to move heavy loads.

Designed for versatility-the CH-10DB caster offers a wide range of mounting options to suit various applications. Its top plate features holes for easy installation and secure attachment to equipment or carts. The swivel construction allows for 360-degree rotation, providing excellent maneuverability and flexibility in confined spaces.

Whether-you need to transport heavy machinery in a manufacturing facility, move equipment in a warehouse, or handle large loads in an industrial setting, the Hamilton Caster CH-10DB is the perfect choice. Engineered for rugged performance and built to withstand the rigors of heavy-duty use, this caster delivers unmatched reliability and efficiency, making your material handling tasks more manageable.
