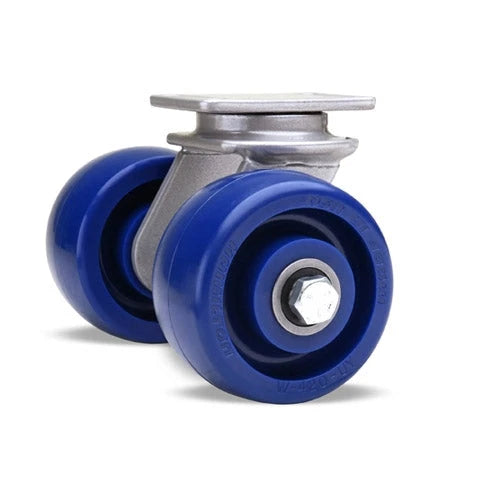

Load Capacity: 1000 lbs. Experience the robust and durable design of our Hamilton Endurance Dual Wheel Swivel Caster. Built for heavy-duty applications, this caster ensures smooth movement even with heavy loads.
Choose the Hamilton Endurance Dual Wheel Swivel Caster for reliability, durability, and optimal performance!
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Discover the ultimate in mobility solutions with the Hamilton Swivel Caster. Built to endure, this caster offers unparalleled support for heavy-duty applications. With a substantial load capacity of 1000 lbs at 3 mph, it's designed to handle intensive use without compromise.
The Hamilton Caster boasts a 4-inch wheel diameter for optimal ground coverage, partnered with a 2-inch wheel face to ensure stable movement. Enhanced by its distinctive Royal Blue Unilast wheel type, it promises longevity and resistance against wear and tear. A platinum powder finish provides an elegant touch, while the precision sealed ball bearing guarantees smooth transitions.
| Feature | Specification |
|---|
Every aspect of the Hamilton Swivel Caster has been meticulously designed for top-tier performance. Its platinum powder finish not only adds a touch of sophistication but ensures corrosion resistance. The Royal Blue Unilast wheel, renowned for its resilience, offers an impressive tread made of polyurethane, known for its durability and floor-friendly properties.
With a shipping weight of just 7 lbs, this caster is both robust and manageable. Whether you're looking to upgrade your current setup or invest in quality from the start, the Hamilton Swivel Caster is a prime choice for those who demand the best.
This Hamilton 4" x 2" Unilast Poly Swivel Dual Wheel Caster – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.125". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$276.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.125" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
