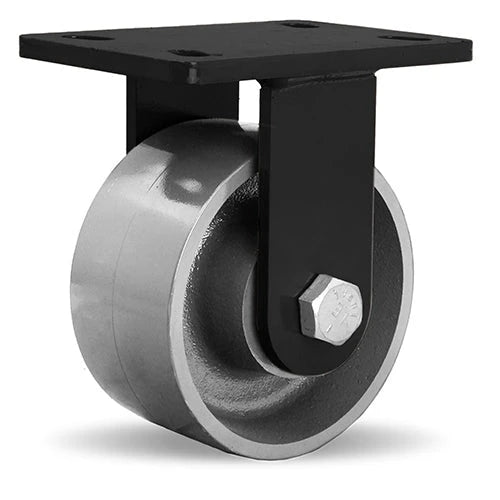

This caster is expertly engineered to perform reliably at elevated temperatures. With a load capacity of 2000lbs at 550°F and 1000lbs at 750°F, it stands out as a superior choice for high heat applications.
Experience unmatched durability with the 6" x 3" metal wheel, designed for prolonged use in demanding environments. The 3/4" high heat stainless steel shielded precision ball bearings ensure smooth operation and are maintenance-free, providing longevity even in extreme heat conditions.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The caster showcases a 6-inch wheel diameter and a 3-inch wheel face, with an overall height of 7.5 inches. For easy mounting, it's designed with a 4.5 x 6.5-inch plate and features bolt holes measuring 2 7/16 x 4 15/16 inches and 3 3/8 x 5 1/4 inches. Bolt diameter is set at 0.5 inches.
The Hamilton Rigid Caster sports a sophisticated black finish, while its wheel glistens with a high-heat-resistant silver hue.
The Hamilton Rigid Caster weighs 21 lbs during shipment. Each unit is carefully packaged, ensuring safe transit and arrival in impeccable condition.
Ideal for both industrial and high-temperature tasks, Hamilton Rigid Caster stands out. Commit to unparalleled quality, endurance, and functionality with Hamilton.
This Hamilton FMK 6"x3" Metal Rigid Caster – 2000 lb is rated to 2000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4-1/2" x 6-1/2" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 750°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$473.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 3" |
| Overall Height | 7.5" |
| Plate Size | 4-1/2" x 6-1/2" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 2000 lbs |
| Temp Range | Up to 750°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
