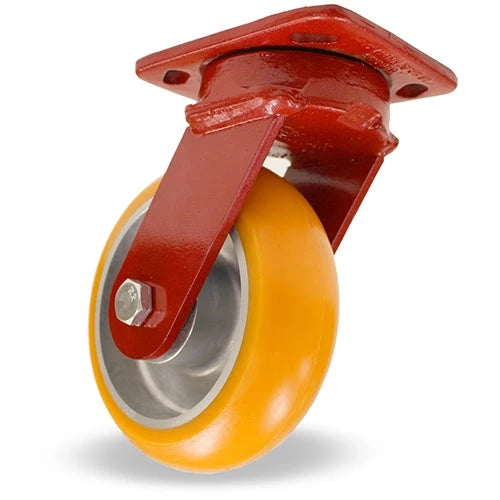

This Hamilton S-ZFWH-62EMB 6" x 2" Ergo-Tech Swivel Kingpinless Caster – 800 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$248.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
6" x 2" Polyurethane Rigid Caster 4" x 4-1/2" Plate – 900 lb | CasterHQ
6" x 2" · 900 lbs
$23
6" x 2" Gray Iron Spring Loaded Caster – 700 lb | CasterHQ
6" x 2" · 700 lbs
$151
6" x 2" Thermo Rubber Rigid Caster – 600 lb | 4" x 4-1/2" Plate | CasterHQ
6" x 2" · 600 lbs
$31
View all 6 x 2 casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 600 lbsLighter duty | 6" × 2"Gray Rubber | Rigid | 7-1/2" | $31.00 | View → | |
| 700 lbsLighter duty | 6" × 2"Cast Iron | — | — | $151.00 | View → | |
| 800 lbs | 6" × 2"Polyurethane | Swivel | — | $248.00 | Viewing | |
| 900 lbsHeavier duty | 6" × 2"Polyurethane | Rigid | 7-1/2" | $23.00 | View → | |
| 1000 lbsHeavier duty | 6" × 2"Blue Solid Polyurethane | — | — | $182.00 | View → |
