Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

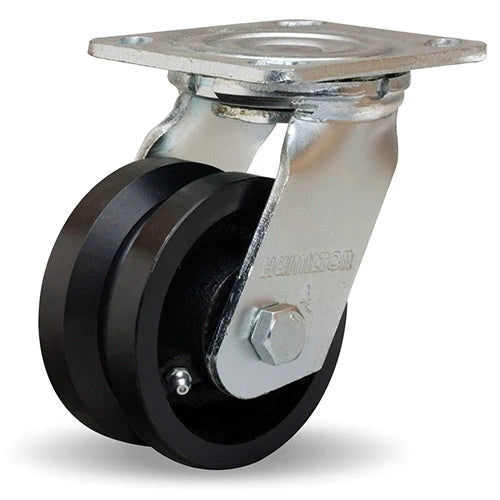

Unlock unmatched industrial mobility with the Hamilton Standard Duty S-525-V Swivel Caster. Designed with precision and built to last, it's an essential tool for any demanding environment.
Wheel Specification: Features a 5x2 inch V-Grooved Wheel, expertly crafted for steady and smooth operations on a variety of surfaces.
Bearing Type: Fitted with a 3/4 inch Straight Roller Bearing, ensuring frictionless movement and precise swiveling capabilities.
Hamilton’s S-525-V doesn’t just offer optimal performance; it guarantees durability. Built for enduring the rigors of industrial use, it promises minimal wear and tear, making it a reliable partner for the long haul.
At Hamilton, quality is not just a standard but a commitment. The S-525-V Swivel Caster stands as a testament to our dedication to delivering top-notch mobility solutions that meet and exceed your expectations.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Designed for unparalleled performance and durability, the Hamilton S-525-V Swivel Caster stands as a testament to superior engineering and impeccable manufacturing standards.
Wheel Size Advantage: This caster boasts a 5x2 inch V-Grooved Wheel, making it suitable for a myriad of applications, from warehousing to manufacturing floors.
Bearing Precision: It comes equipped with a 3/4 inch Straight Roller Bearing, ensuring seamless swiveling action and ease of direction change. This precise bearing design facilitates smoother operations and reduces operational fatigue.
Robust & Durable: Built to tackle the challenges of industrial environments, this swivel caster promises minimal wear and tear even under intense conditions. Hamilton's commitment to quality is evident in the caster's construction, ensuring long-lasting reliability.
With its intuitive design, the Hamilton S-525-V Swivel Caster promises user-friendly operation. Its swivel capability not only provides excellent directional control but also ensures maneuverability in tight spaces. Moreover, it seamlessly integrates with a range of equipment, promising versatility.
As with all Hamilton products, the S-525-V Swivel Caster offers an impeccable balance between cost and performance. Businesses can be assured of a top-tier product without breaking the bank.
Elevate your equipment's mobility and efficiency with the Hamilton S-525-V Swivel Caster – a product that truly defines the standard in industrial movement solutions.
This Hamilton S-525-V 5" x 2" V-Grooved Swivel Caster – 3/4" Roller Bearing is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

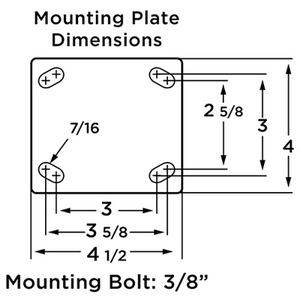

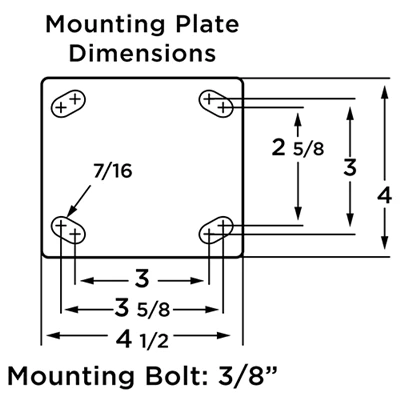

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -30°F to 320°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$118.00
| Identification | |
|---|---|
| Part Number / SKU | S-525-V |
| Replacement Wheel Part No | W-520-V-3/4 |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-7/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Cast Iron |
| Wheel Core Material | Cast Iron |
| Wheel Color | Black |
| Bearing Type | Straight Roller Bearing |
| Construction | |
| Frame / Finish | Bright Zinc Plated |
| Temperature Range | -30°F to 320°F |
| Unit Weight | 8 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 650 lbsLighter duty | 5" × 2"Polyolefin | Swivel | 6-1/2" | $24.00 | View → | |
| 750 lbsLighter duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
| 800 lbs | 5" × 2"Cast Iron | Swivel | 6-1/2" | $118.00 | Viewing | |
| 800 lbsSame capacity | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsSame capacity | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → |
