Hamilton Super Endurance™ Kingpinless Swivel Caster with 10" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) Wheel with 3/4" Sealed Precision Ball Bearings Hamilton
Hamilton Super Endurance™ Kingpinless Swivel Caster with 10" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) Wheel with 3/4" Sealed Precision Ball Bearings Hamilton
Hamilton Super Endurance™ Kingpinless Swivel Caster with 10" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Hamilton S-SEC-13EGB 10" x 3" Polyurethane Swivel Kingpinless Caster | CasterHQ

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
$741.00 USD - $894.68 USD
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-SEC-13EGB

Technical Specs

Swivel or Rigid caster Swivel
Load Capacity (lbs.) @ 3 mph 3200 lbs
Wheel Diameter (in.) 10
Wheel Face (in.) 3
Overall Height (in.) 12.5
Swivel Offset (in.) 2.75
Mounting Plate (in.) 5 1/4 x 7 1/4
Bolt Hole 1 (in.) 3 3/8 x 5 1/4
Bolt Hole 2 (in.) 4 1/8 x 6 1/8
Mounting Bolt (in.) 0.5
Caster Color/Finish Platinum Powder
Wheel Type Ergo-Glide XT
Wheel Color/Finish Blue Poly on Gray Center
Bearing Type Precision Sealed Ball
Replacement Wheel W-1031-EGB-3/4
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 41
Caster Rig Type Kingpinless
Mounting Plate Length (in.) 7.25
Mounting Plate Width (in.) 5.25

Product Overview

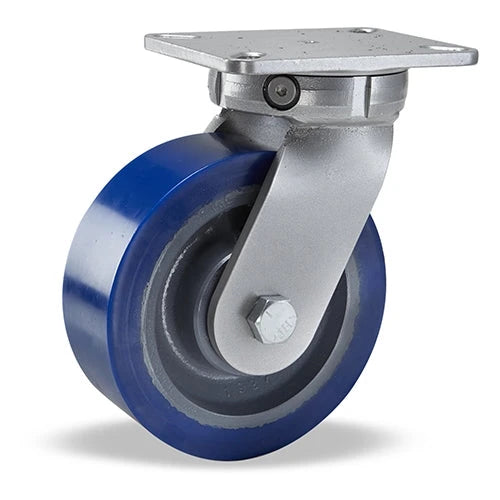

Hamilton Super Endurance™ Kingpinless Swivel Caster with 10" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) Wheel with 3/4" Sealed Precision Ball Bearings

The Hamilton Part#: S-SEC-13EGB is a cutting-edge component designed to deliver exceptional performance and durability in industrial settings. Engineered with meticulous attention to detail, this high-quality part is built to meet the demands of even the most challenging applications. With its advanced features and reliable construction, the S-SEC-13EGB is ready to elevate your industrial processes to new heights.

Upgrade your industrial operations with the Hamilton Part#: S-SEC-13EGB and experience the perfect blend of durability, performance, and efficiency. Trust in Hamilton's expertise to meet your industrial needs with this exceptional component.

Key Features
  • Superior Durability: Built to withstand rigorous environments, the S-SEC-13EGB is constructed with robust materials, ensuring longevity and resistance to wear and tear. It can endure high temperatures, heavy loads, and harsh operating conditions, providing you with a durable solution for your industrial requirements.

  • Enhanced Performance: The S-SEC-13EGB is designed to optimize operational efficiency. Its advanced features and intelligent design contribute to smooth operations, minimizing downtime and maximizing productivity. Experience improved workflow, reduced maintenance costs, and enhanced overall efficiency.

  • Precision Engineering: Hamilton's dedication to precision engineering is evident in every aspect of the S-SEC-13EGB. From its precise dimensions to its seamless integration with other equipment, this part ensures optimal performance and compatibility with your existing systems.

  • Easy Installation: The S-SEC-13EGB is engineered with user-friendly features that facilitate hassle-free installation. Its intuitive design allows for seamless integration into your machinery, saving you valuable time and resources.

  • Versatile Applications: This Hamilton part excels in a wide range of industrial applications. Whether you need it for heavy machinery, manufacturing processes, or automation systems, the S-SEC-13EGB is built to deliver outstanding performance, ensuring your operations run smoothly and efficiently.
