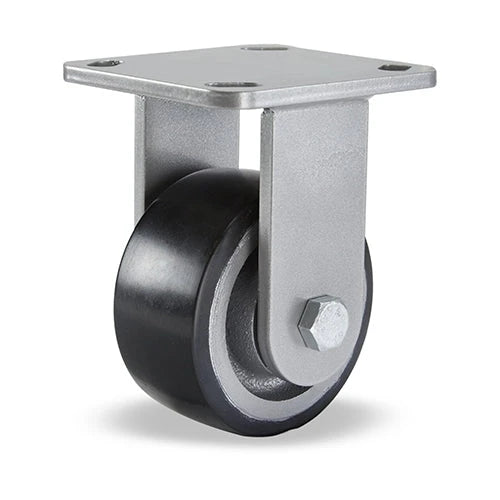

This Hamilton R-WH-4DB70 4" x 2" Duralast XC Rigid Caster – 975 lb is rated to 975 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$138.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 975 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
4" x 2" Polyurethane on Aluminum Dual Wheel Caster – 1,000 lb | CasterHQ
4" x 2" · 1000 lbs
$183
4" x 2" Rigid Caster Yoke 4" x 4-1/2" Top Plate Zinc Plated | CasterHQ
4" x 2" · 1000 lbs
$10
4" x 2" Poly on Aluminum Swivel Caster 4-1/2" x 6-1/4" Plate – 1,000 lb | CasterHQ
4" x 2" · 1000 lbs
$63
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 4" × 2"Cast Iron | Swivel | 5-5/8" | $29.00 | View → | |
| 800 lbsLighter duty | 4" × 2"Polyurethane | Rigid | 5-5/8" | $164.00 | View → | |
| 975 lbs | 4" × 2"Cast Iron | Rigid | — | $138.00 | Viewing | |
| 1000 lbsHeavier duty | 4" × 2"Polyurethane | — | 5-5/8" | $183.00 | View → | |
| 1000 lbsHeavier duty | 4" × 2" | Rigid | 5-5/8" | $10.00 | View → |
