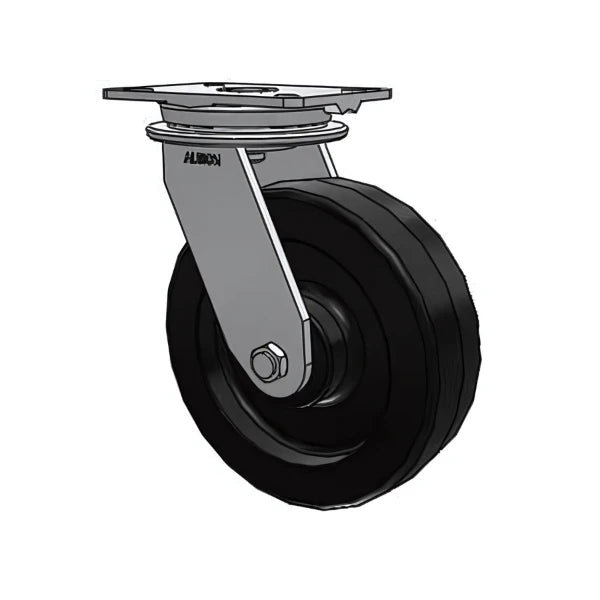

The HD Raceway 10"x3" Phenolic Caster is a heavy-duty solution for industrial applications. This durable caster boasts a maximum weight capacity of 2900 lbs and features a large 7.25"x5.25" top plate for secure mounting. The phenolic wheel material offers smooth rolling performance and resistance to extreme temperatures, oils, and greases.
This caster is ideal for heavy-duty equipment, machinery, and industrial carts. The robust construction ensures reliable performance in demanding environments. Additionally, the phenolic wheel material provides excellent durability and wear resistance, minimizing replacement needs.
Our team of Caster Experts are available weekdays from 8 am to 5 pm to answer your questions and provide expert advice to ensure you select the perfect caster for your specific needs. Contact us today!
The HD Raceway 10"x3" Phenolic Caster offers exceptional quality, unmatched performance, and long-lasting durability. Invest in a caster that will elevate your equipment and deliver reliable results.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The HD Raceway 10"x3" Phenolic Caster is a premium choice for demanding industrial applications. Its exceptional quality, unmatched performance, and long-lasting durability make it a standout product in the market.
The HD Raceway 10"x3" Phenolic Caster is ideal for a wide range of applications, including:
This Albion 10"x3" Phenolic Caster 7.25"x5.25" Plate – 2900 lb is rated to 2900 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 3" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 12.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$396.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 12.5" |
| Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 2900 lbs |
| Temp Range | Up to 250°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
10" x 3" Phenolic Rigid Kingpinless Caster – 2,900 lb | CasterHQ
10" x 3" · 2900 lbs
$100
10" x 3" Phenolic Swivel Kingpinless Caster – 2,900 lb | CasterHQ
10" x 3" · 2900 lbs
$237
Albion 90TM10501SP 3" Tm Caster — 2900 lb | CasterHQ
10" x 3" · 2900 lbs · Direct fit
$523
View all 10′ x 3′ casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2500 lbsLighter duty | 10" × 3"Cast Iron | Swivel | 13-1/2" | $260.00 | View → | |
| 2500 lbsLighter duty | 10" × 3"Nylon | Swivel | 11-1/2" | $104.00 | View → | |
| 2900 lbs | 10" × 3"Phenolic | Swivel | 12.5" | $396.00 | Viewing | |
| 2900 lbsSame capacity | 10" × 3"Phenolic | Rigid | 7-1/2" | $100.00 | View → | |
| 2900 lbsSame capacity | 10" × 3"Phenolic | Swivel | 11-1/2" | $237.00 | View → |
